Century Spring

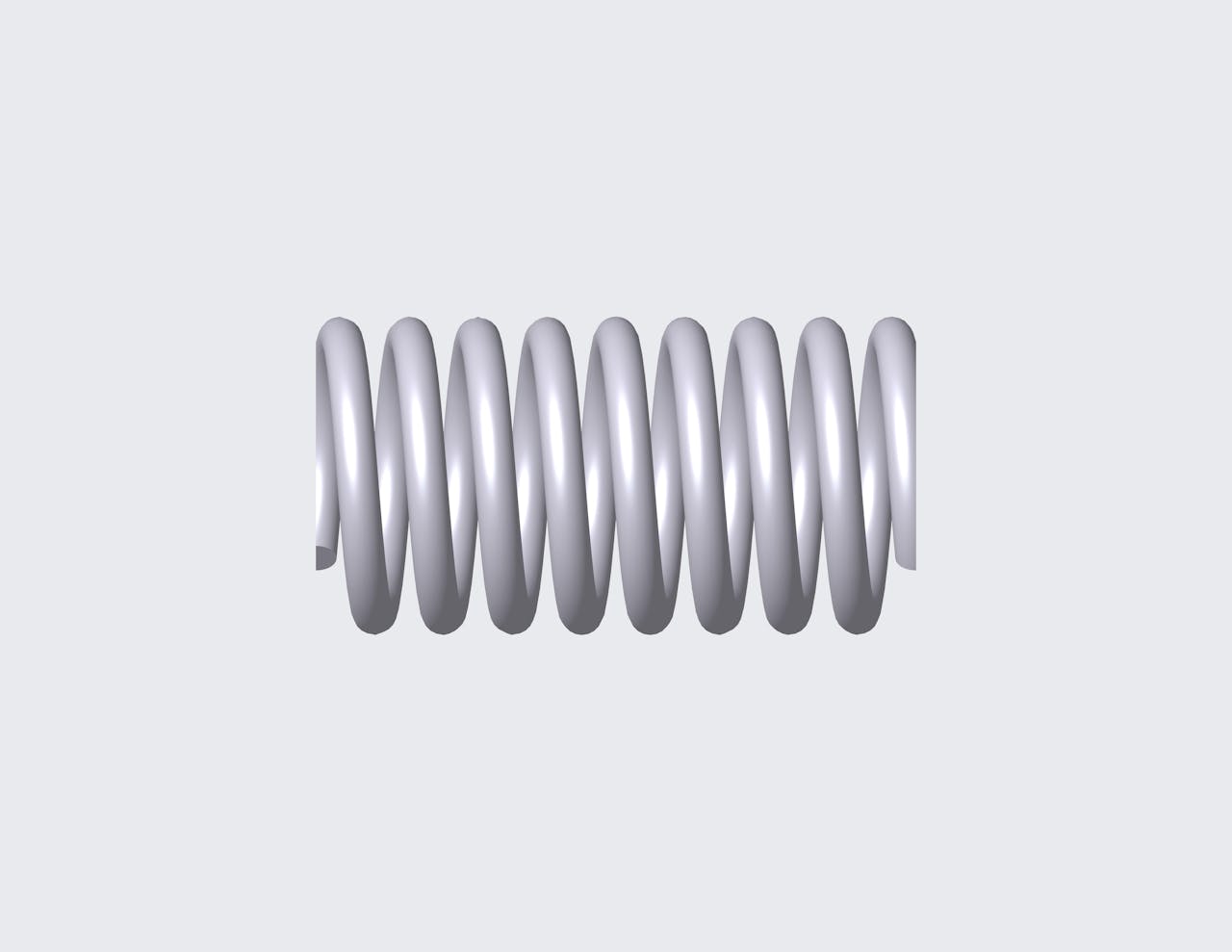

76859CS - 2.559" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 8.1 coils and closed & ground ends. This spring features an O.D. of 1.358", and an I.D. of 1.004".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76859
Ends Closed & Ground
Finish None
Free Length 2.559 in
Inside Diameter 1.004 in
Material Music Wire
Outside Diameter 1.358 in
Part Type Metric
Rate 140.907 lbs/in
SKU 76859CS
Solid Length 1.435 in
Suggested Max Deflection 1.201 in
Suggested Max Load 169.191 lbf
Total Coils 8.1
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76859
Ends Closed & Ground
Finish None
Free Length 65 mm
Inside Diameter 25.5 mm
Material Music Wire
Outside Diameter 34.49 mm
Part Type Metric
Rate 24.67 N/mm
SKU 76859CS
Solid Length 36.45 mm
Suggested Max Deflection 30.51 mm
Suggested Max Load 752.56 N
Total Coils 8.1
Wire Diameter 4.5 mm
The compression spring 76859CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76859 compression spring design exhibits exceptional tensile strength and resilience.

The 76859 design is manufactured with a free length of 2.559", with an outer diameter of 1.358", an inner diameter of 1.004", and a total of 8.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 140.907 lbs/in.

The 76859CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 76859 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
