76734CS - 5.118" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

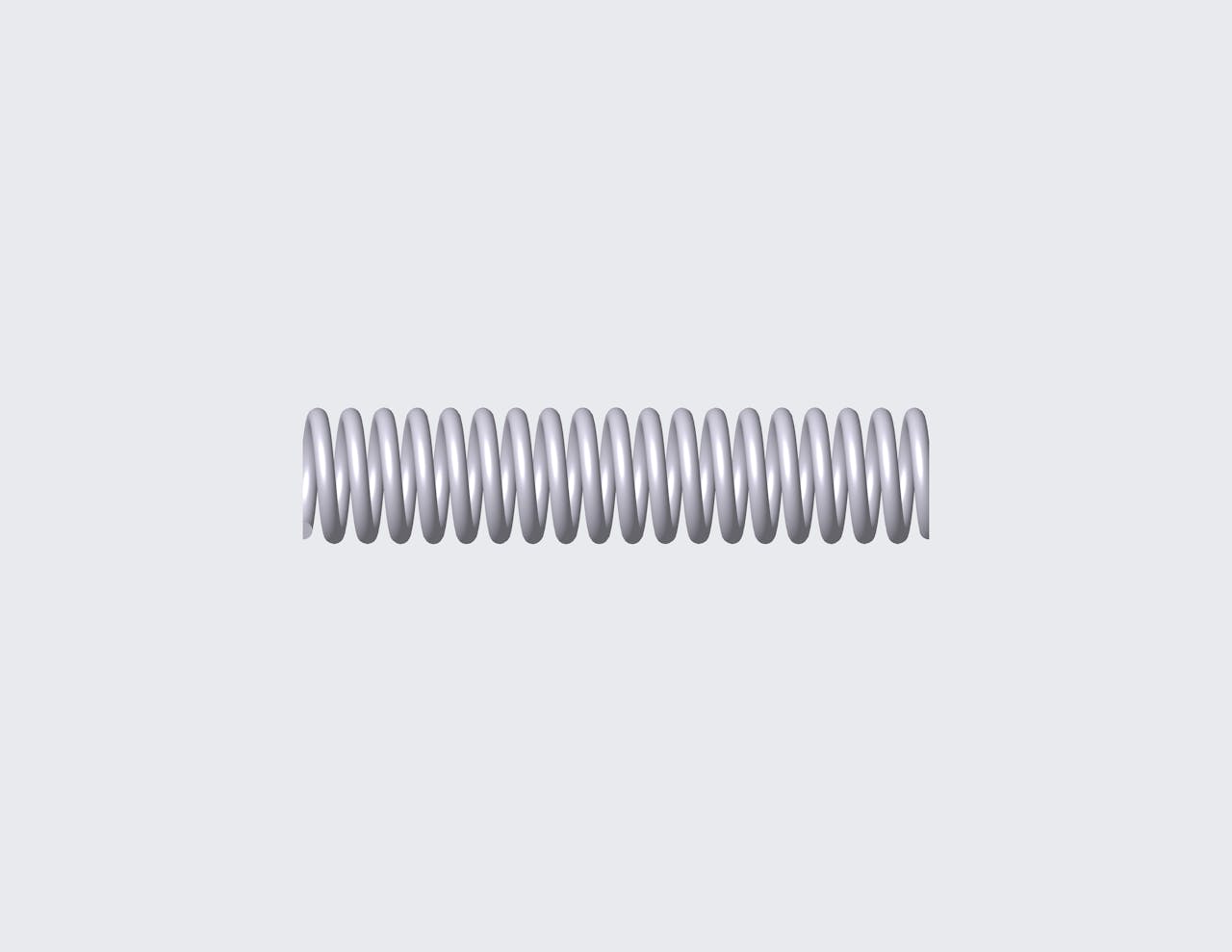

Compression spring manufactured from music wire with 18.3 coils and closed & ground ends. This spring features an O.D. of 1.118", and an I.D. of 0.803".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76734
Ends Closed & Ground
Finish None
Free Length 5.118 in
Inside Diameter 0.803 in
Material Music Wire
Outside Diameter 1.118 in
Part Type Metric
Rate 61.187 lbs/in
SKU 76734CS
Solid Length 2.882 in
Suggested Max Deflection 2.362 in
Suggested Max Load 144.544 lbf
Total Coils 18.3
Wire Diameter 0.157 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76734
Ends Closed & Ground
Finish None
Free Length 130 mm
Inside Diameter 20.4 mm
Material Music Wire
Outside Diameter 28.4 mm
Part Type Metric
Rate 10.71 N/mm
SKU 76734CS
Solid Length 73.2 mm
Suggested Max Deflection 59.99 mm
Suggested Max Load 642.93 N
Total Coils 18.3
Wire Diameter 3.99 mm
The 76734 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 76734CS compression spring is designed with a free length of 4.331" total of 14.5 coils, and a rate of 220.85 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 76734 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
