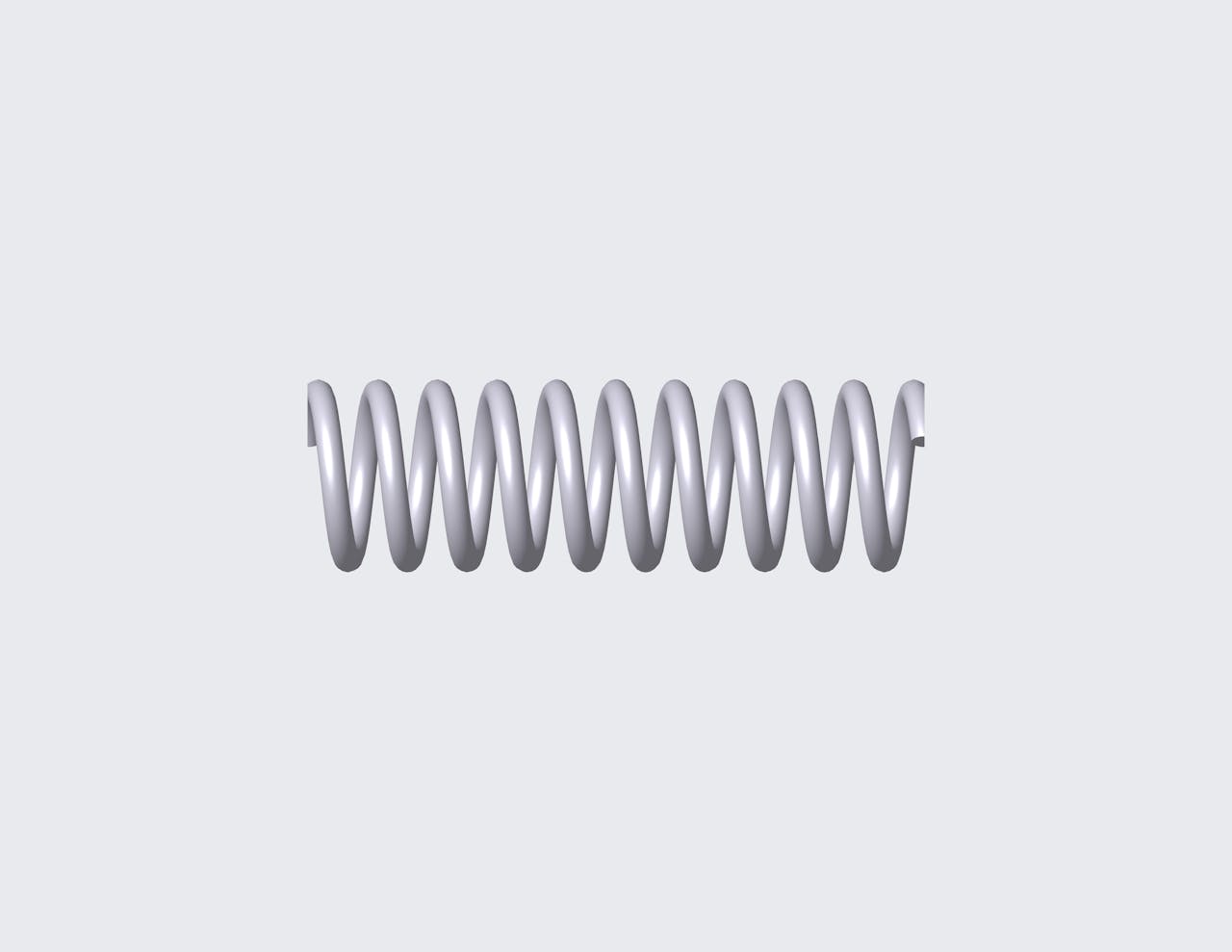

76571CS - 2.913" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 9.92 coils and closed & ground ends. This spring features an O.D. of 0.913", and an I.D. of 0.662".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76571 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.913 in |
| Inside Diameter | 0.662 in |
| Material | Music Wire |
| Outside Diameter | 0.913 in |
| Part Type | Metric |
| Rate | 91.342 lbs/in |
| SKU | 76571CS |
| Solid Length | 1.242 in |
| Suggested Max Deflection | 1.023 in |
| Suggested Max Load | 93.424 lbf |
| Total Coils | 9.92 |
| Wire Diameter | 0.125 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76571 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 73.99 mm |
| Inside Diameter | 16.81 mm |
| Material | Music Wire |
| Outside Diameter | 23.19 mm |
| Part Type | Metric |
| Rate | 15.99 N/mm |
| SKU | 76571CS |
| Solid Length | 31.55 mm |
| Suggested Max Deflection | 25.98 mm |
| Suggested Max Load | 415.55 N |
| Total Coils | 9.92 |
| Wire Diameter | 3.18 mm |
The 76571CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter music wire, the 76571 spring design exhibits reliable strength across its 9.92 active coils, withstanding repeated compression cycles with a maximum load of 93.424 lbf without succumbing to fatigue.
We manufacture the 76571 design to provide a compression spring that is 2.913" long at rest and provides a consistent rate of 91.342 lbs/in along its recommended maximum of 1.023" deflection. For best results, your application should fully accommodate the inner (0.662") and outer (0.913") diameters of this spring and be designed for its closed & ground end configuration.
