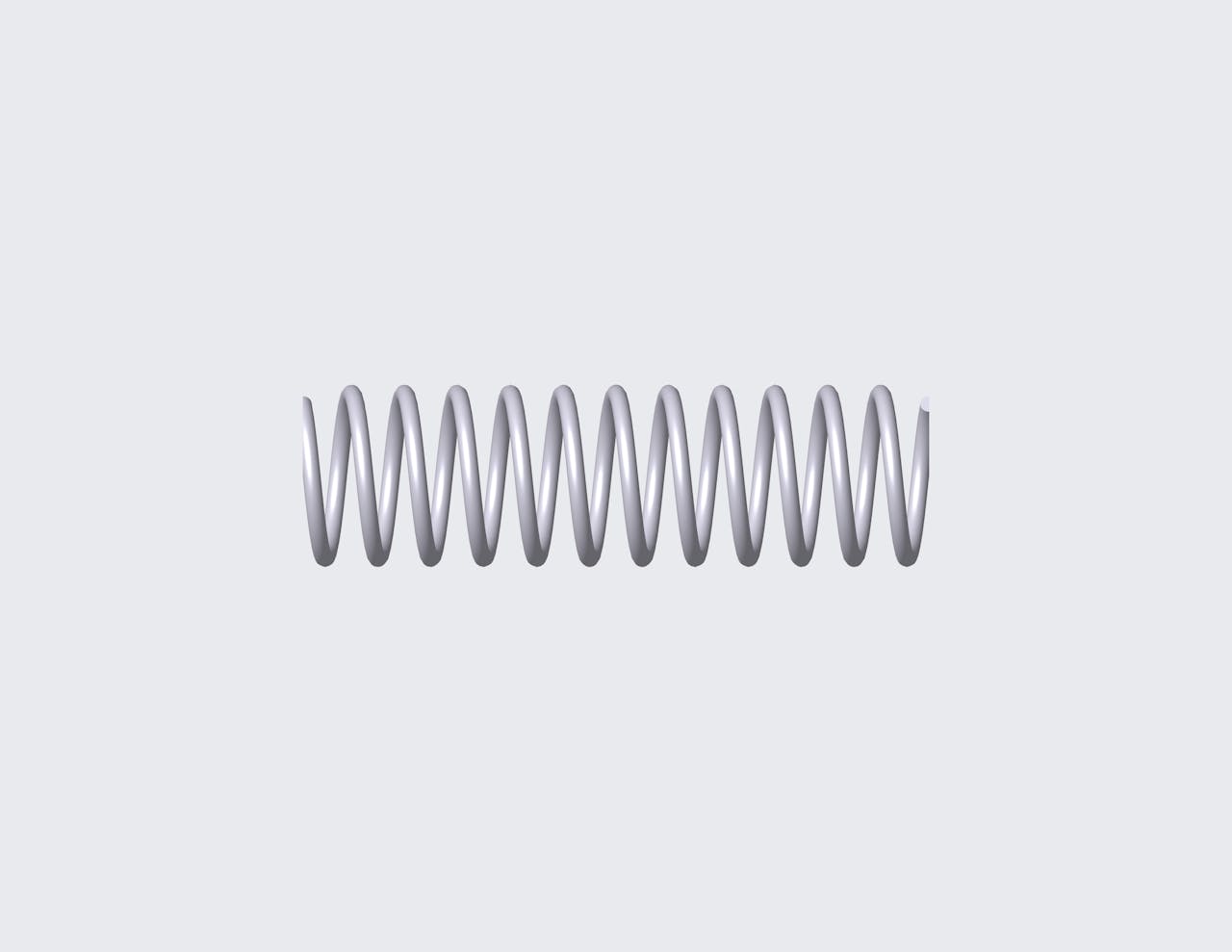

76485CS - 2.756" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 11.5 coils and closed & ground ends. This spring features an O.D. of 0.803", and an I.D. of 0.646".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76485
Ends Closed & Ground
Finish None
Free Length 2.756 in
Inside Diameter 0.646 in
Material Music Wire
Outside Diameter 0.803 in
Part Type Metric
Rate 15.301 lbs/in
SKU 76485CS
Solid Length 0.906 in
Suggested Max Deflection 1.908 in
Suggested Max Load 29.197 lbf
Total Coils 11.5
Wire Diameter 0.079 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76485
Ends Closed & Ground
Finish None
Free Length 70 mm
Inside Diameter 16.41 mm
Material Music Wire
Outside Diameter 20.4 mm
Part Type Metric
Rate 2.68 N/mm
SKU 76485CS
Solid Length 23.01 mm
Suggested Max Deflection 48.46 mm
Suggested Max Load 129.87 N
Total Coils 11.5
Wire Diameter 2.01 mm
The 76485 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 76485CS compression spring is designed with a free length of 2.559" total of 12.9 coils, and a rate of 79.834 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 76485 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
