Century Spring

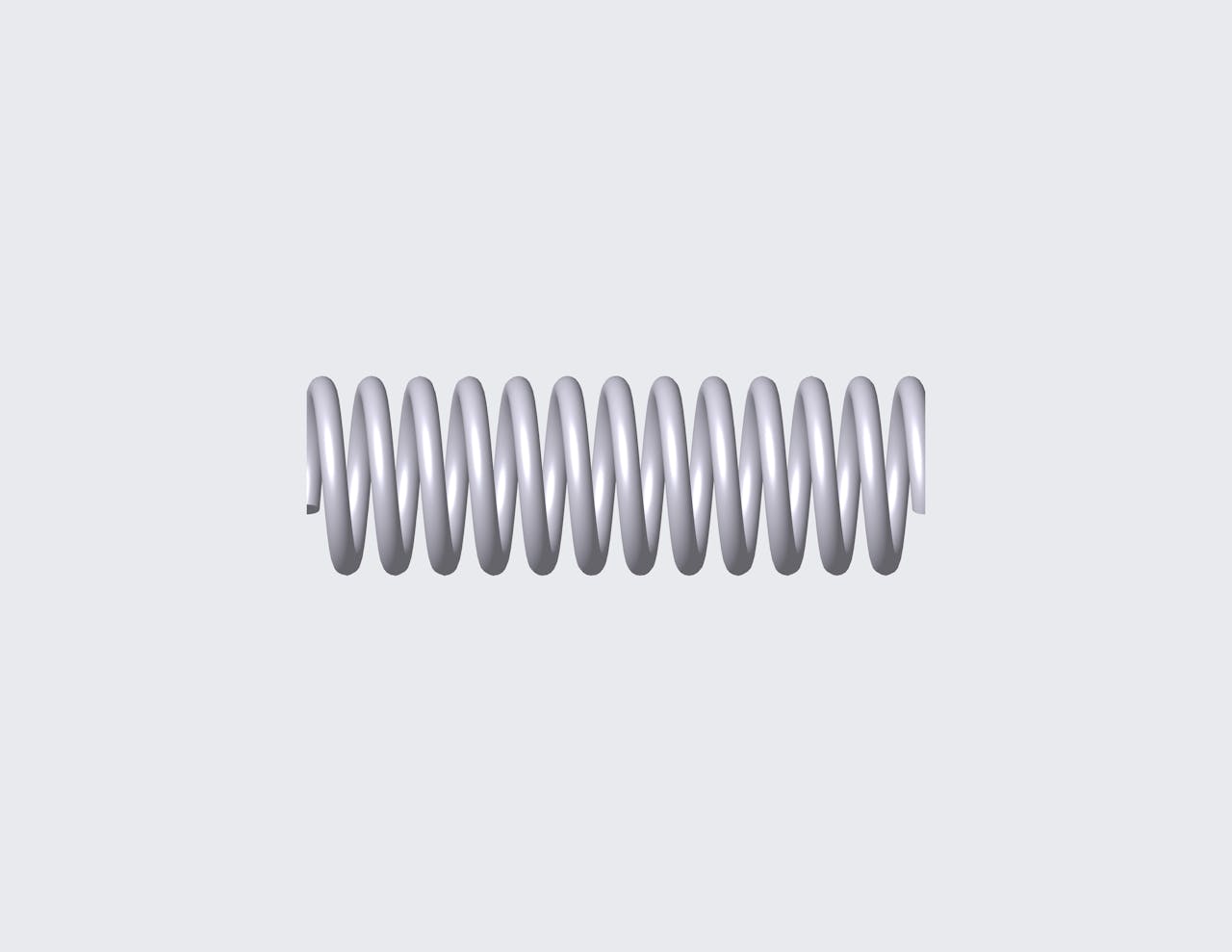

76459CS - 2.362" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 12.1 coils and closed & ground ends. This spring features an O.D. of 0.764", and an I.D. of 0.567".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76459
Ends Closed & Ground
Finish None
Free Length 2.362 in
Inside Diameter 0.567 in
Material Music Wire
Outside Diameter 0.764 in
Part Type Metric
Rate 45.348 lbs/in
SKU 76459CS
Solid Length 1.191 in
Suggested Max Deflection 1.253 in
Suggested Max Load 56.816 lbf
Total Coils 12.1
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76459
Ends Closed & Ground
Finish None
Free Length 59.99 mm
Inside Diameter 14.4 mm
Material Music Wire
Outside Diameter 19.41 mm
Part Type Metric
Rate 7.94 N/mm
SKU 76459CS
Solid Length 30.25 mm
Suggested Max Deflection 31.83 mm
Suggested Max Load 252.72 N
Total Coils 12.1
Wire Diameter 2.49 mm
The 76459CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.098" diameter music wire, the 76459 spring design exhibits reliable strength across its 12.1 active coils, withstanding repeated compression cycles with a maximum load of 56.816 lbf without succumbing to fatigue.

We manufacture the 76459 design to provide a compression spring that is 2.362" long at rest and provides a consistent rate of 45.348 lbs/in along its recommended maximum of 1.253" deflection. For best results, your application should fully accommodate the inner (0.567") and outer (0.764") diameters of this spring and be designed for its closed & ground end configuration.
