Century Spring

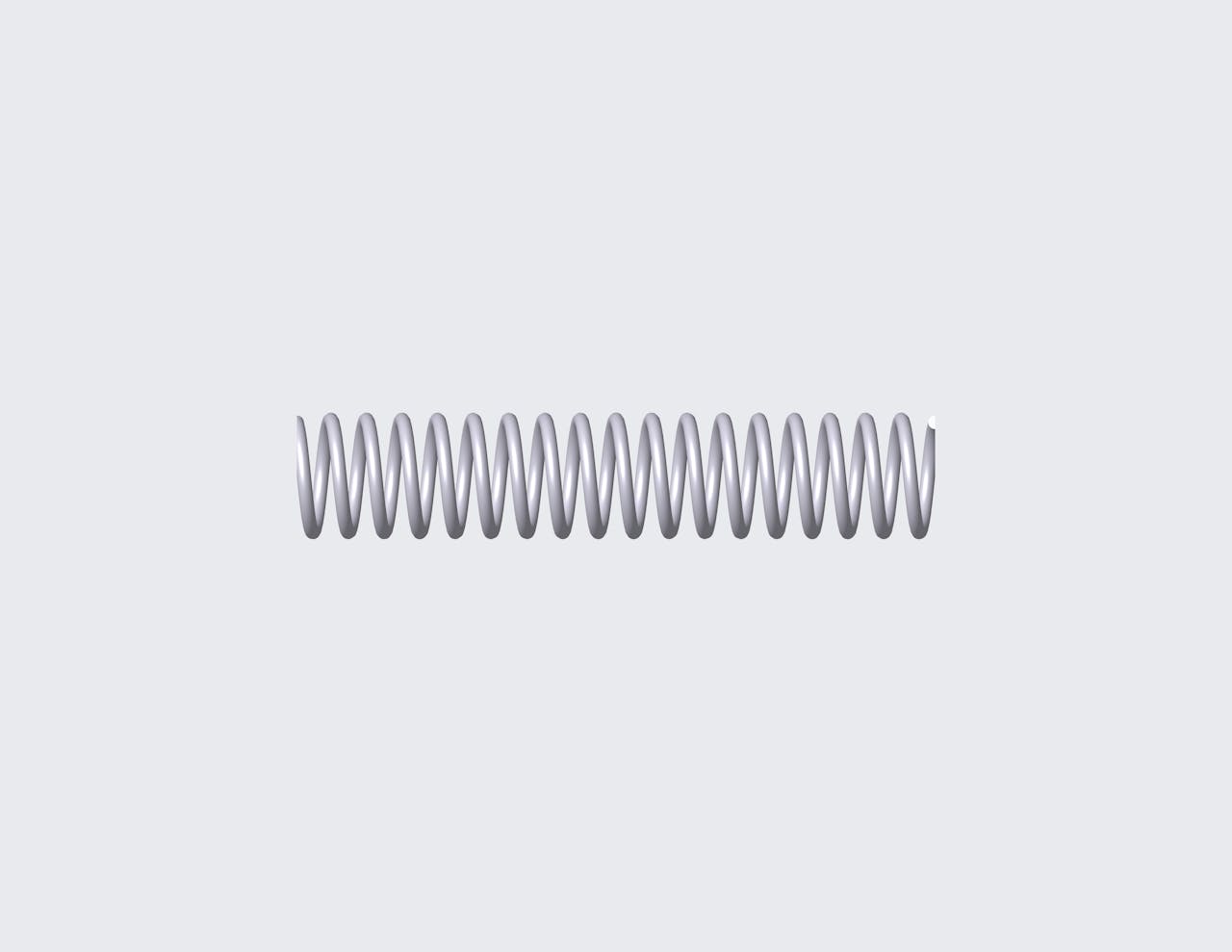

76352CS - 3.15" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 17.5 coils and closed & ground ends. This spring features an O.D. of 0.626", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76352
Ends Closed & Ground
Finish None
Free Length 3.15 in
Inside Diameter 0.484 in
Material Music Wire
Outside Diameter 0.626 in
Part Type Metric
Rate 13.673 lbs/in
SKU 76352CS
Solid Length 1.24 in
Suggested Max Deflection 2.022 in
Suggested Max Load 27.643 lbf
Total Coils 17.5
Wire Diameter 0.071 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76352
Ends Closed & Ground
Finish None
Free Length 80.01 mm
Inside Diameter 12.29 mm
Material Music Wire
Outside Diameter 15.9 mm
Part Type Metric
Rate 2.39 N/mm
SKU 76352CS
Solid Length 31.5 mm
Suggested Max Deflection 51.36 mm
Suggested Max Load 122.96 N
Total Coils 17.5
Wire Diameter 1.8 mm
The 76352CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.071" diameter music wire, the 76352 spring design exhibits reliable strength across its 17.5 active coils, withstanding repeated compression cycles with a maximum load of 27.643 lbf without succumbing to fatigue.

We manufacture the 76352 design to provide a compression spring that is 3.15" long at rest and provides a consistent rate of 13.673 lbs/in along its recommended maximum of 2.022" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.626") diameters of this spring and be designed for its closed & ground end configuration.
