Century Spring

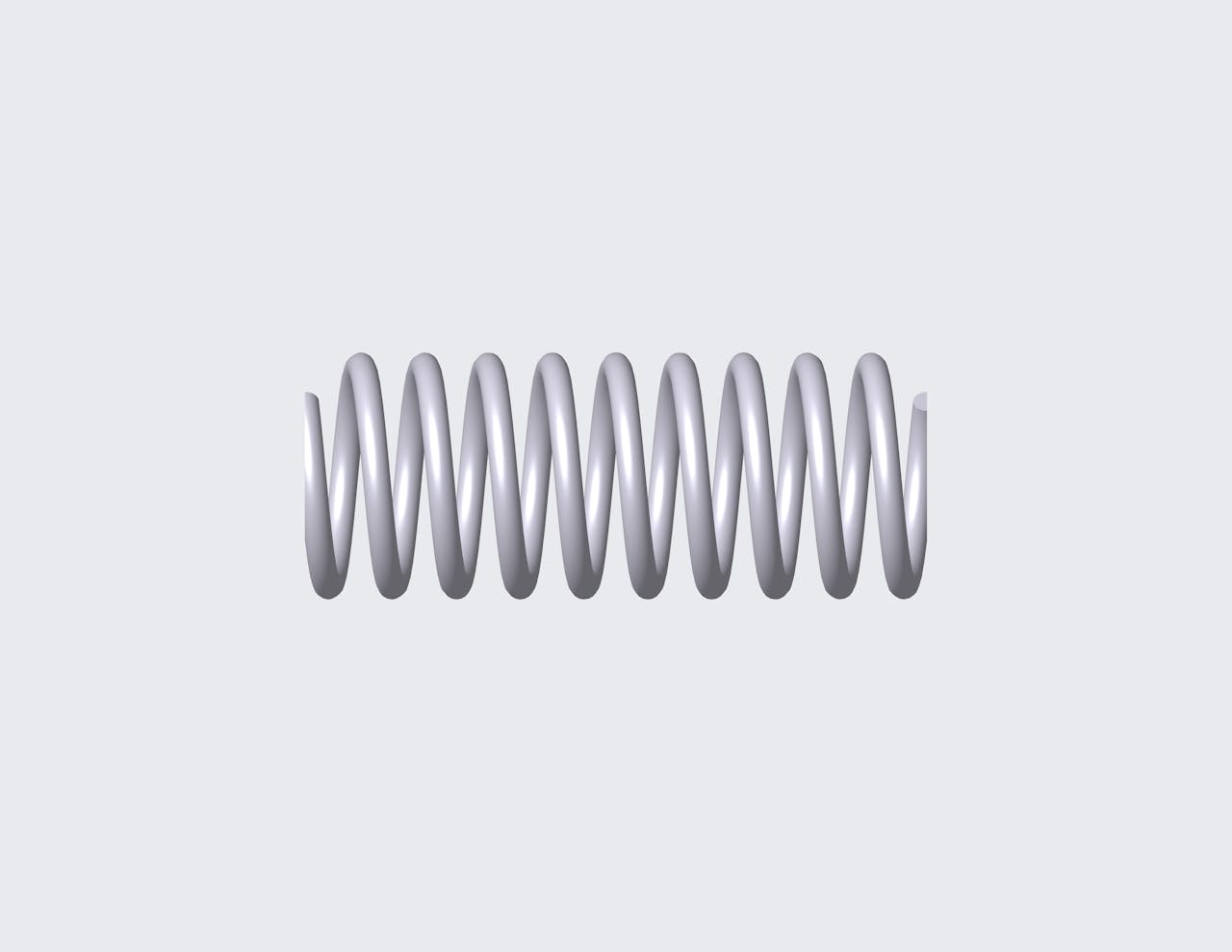

76348CS - 1.575" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 9.3 coils and closed & ground ends. This spring features an O.D. of 0.626", and an I.D. of 0.484".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76348
Ends Closed & Ground
Finish None
Free Length 1.575 in
Inside Diameter 0.484 in
Material Music Wire
Outside Diameter 0.626 in
Part Type Metric
Rate 29.033 lbs/in
SKU 76348CS
Solid Length 0.659 in
Suggested Max Deflection 0.952 in
Suggested Max Load 27.643 lbf
Total Coils 9.3
Wire Diameter 0.071 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76348
Ends Closed & Ground
Finish None
Free Length 40.01 mm
Inside Diameter 12.29 mm
Material Music Wire
Outside Diameter 15.9 mm
Part Type Metric
Rate 5.08 N/mm
SKU 76348CS
Solid Length 16.74 mm
Suggested Max Deflection 24.18 mm
Suggested Max Load 122.96 N
Total Coils 9.3
Wire Diameter 1.8 mm
The 76348 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 76348CS compression spring is designed with a free length of 1.181" total of 7.3 coils, and a rate of 39.988 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 76348 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
