76338CS - 2.165" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

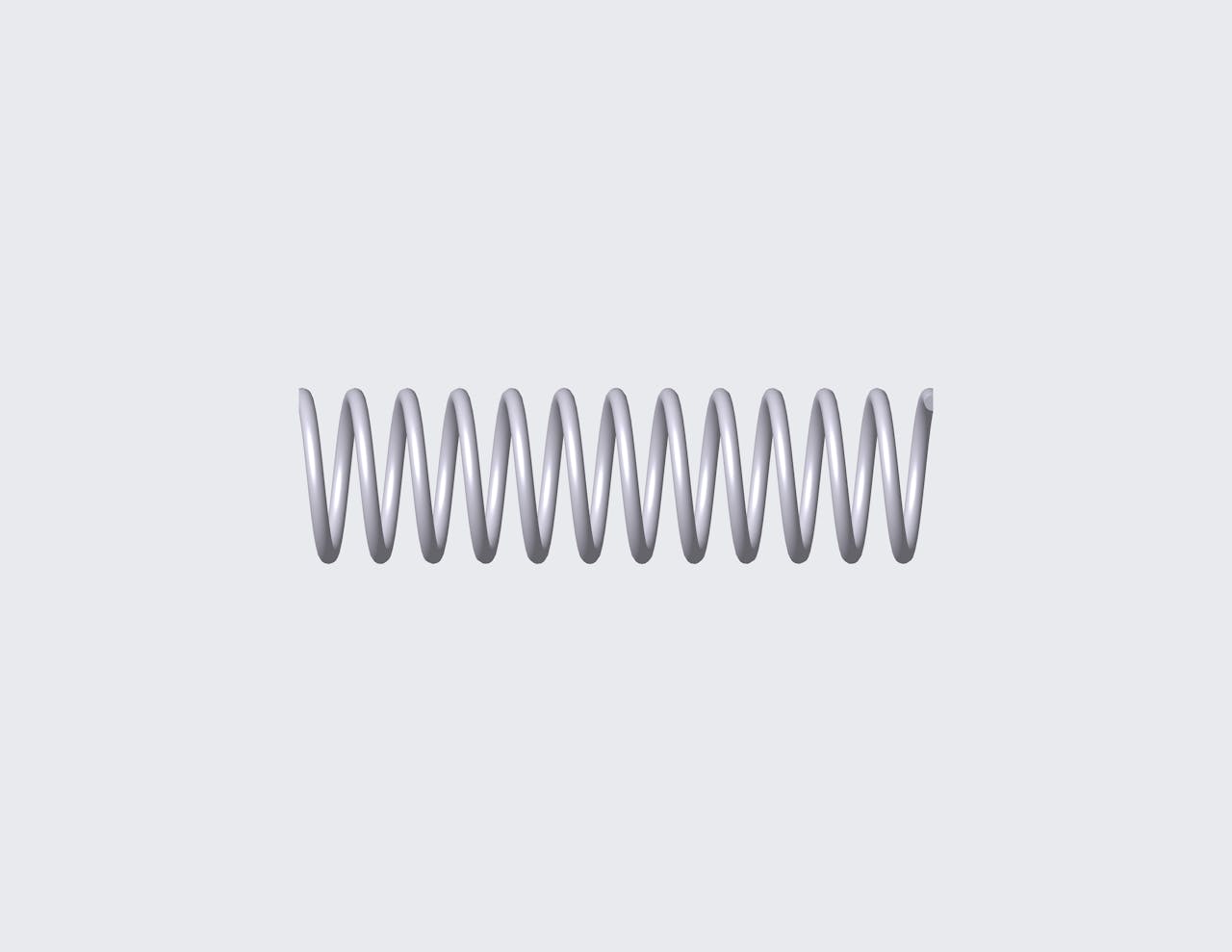

Compression spring manufactured from music wire with 11.8 coils and closed & ground ends. This spring features an O.D. of 0.602", and an I.D. of 0.484".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76338 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.165 in |
| Inside Diameter | 0.484 in |
| Material | Music Wire |
| Outside Diameter | 0.602 in |
| Part Type | Metric |
| Rate | 11.124 lbs/in |
| SKU | 76338CS |
| Solid Length | 0.697 in |
| Suggested Max Deflection | 1.559 in |
| Suggested Max Load | 17.346 lbf |
| Total Coils | 11.8 |
| Wire Diameter | 0.059 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76338 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 54.99 mm |
| Inside Diameter | 12.29 mm |
| Material | Music Wire |
| Outside Diameter | 15.29 mm |
| Part Type | Metric |
| Rate | 1.95 N/mm |
| SKU | 76338CS |
| Solid Length | 17.7 mm |
| Suggested Max Deflection | 39.6 mm |
| Suggested Max Load | 77.16 N |
| Total Coils | 11.8 |
| Wire Diameter | 1.5 mm |
The 76338CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.059" diameter music wire, the 76338 spring design exhibits reliable strength across its 11.8 active coils, withstanding repeated compression cycles with a maximum load of 17.346 lbf without succumbing to fatigue.
We manufacture the 76338 design to provide a compression spring that is 2.165" long at rest and provides a consistent rate of 11.124 lbs/in along its recommended maximum of 1.559" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.602") diameters of this spring and be designed for its closed & ground end configuration.
We manufacture the 76338 design to provide a compression spring that is 2.165" long at rest and provides a consistent rate of 11.124 lbs/in along its recommended maximum of 1.559" deflection. For best results, your application should fully accommodate the inner (0.484") and outer (0.602") diameters of this spring and be designed for its closed & ground end configuration.
