76226CS - 1.378" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

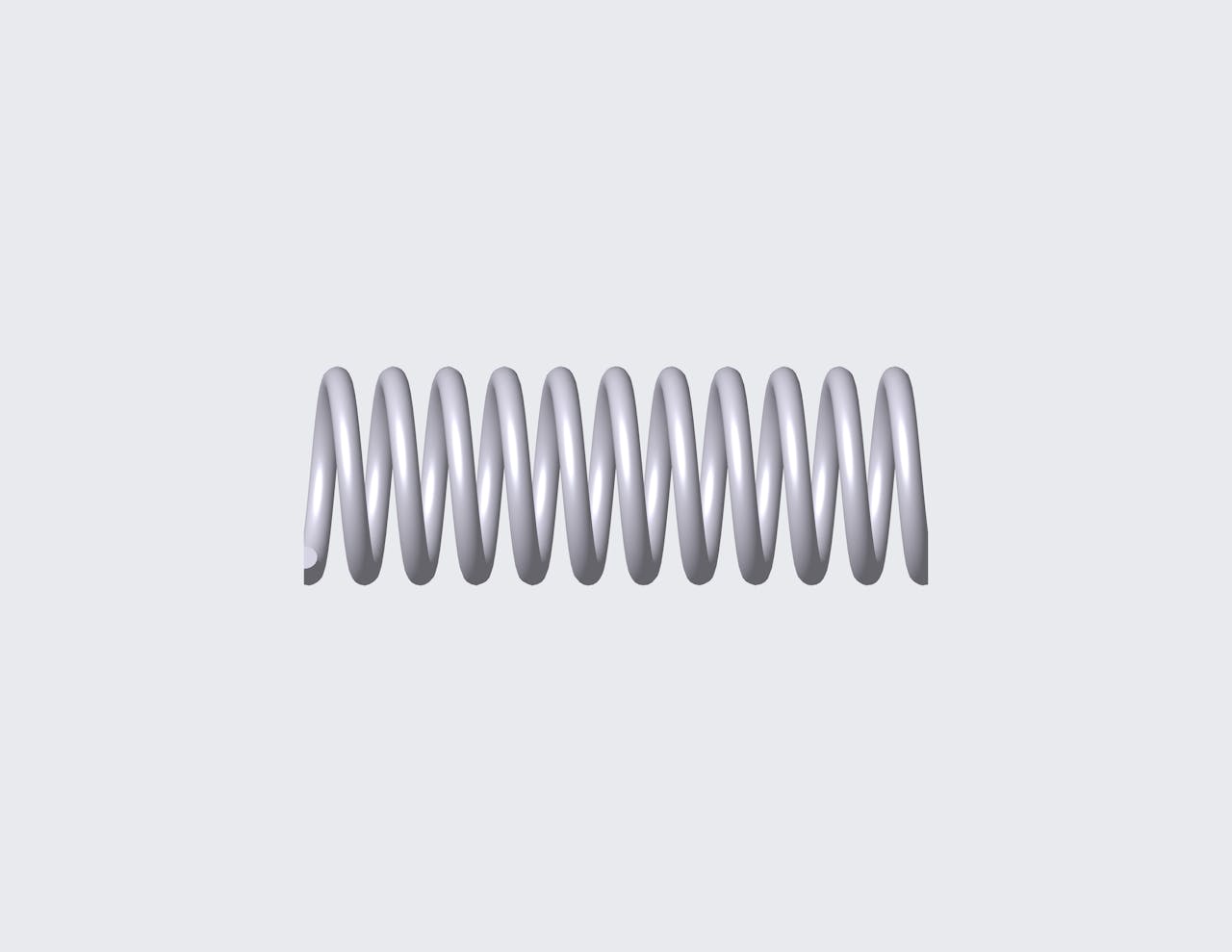

Compression spring manufactured from music wire with 10.7 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.366".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76226
Ends Closed & Ground
Finish None
Free Length 1.378 in
Inside Diameter 0.366 in
Material Music Wire
Outside Diameter 0.484 in
Part Type Metric
Rate 26.143 lbs/in
SKU 76226CS
Solid Length 0.632 in
Suggested Max Deflection 0.814 in
Suggested Max Load 21.281 lbf
Total Coils 10.7
Wire Diameter 0.059 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76226
Ends Closed & Ground
Finish None
Free Length 35 mm
Inside Diameter 9.3 mm
Material Music Wire
Outside Diameter 12.29 mm
Part Type Metric
Rate 4.58 N/mm
SKU 76226CS
Solid Length 16.05 mm
Suggested Max Deflection 20.68 mm
Suggested Max Load 94.66 N
Total Coils 10.7
Wire Diameter 1.5 mm
The 76226 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 76226CS compression spring is designed with a free length of 1.378" total of 8.4 coils, and a rate of 6.129 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 76226 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
