76210CS - 0.827" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

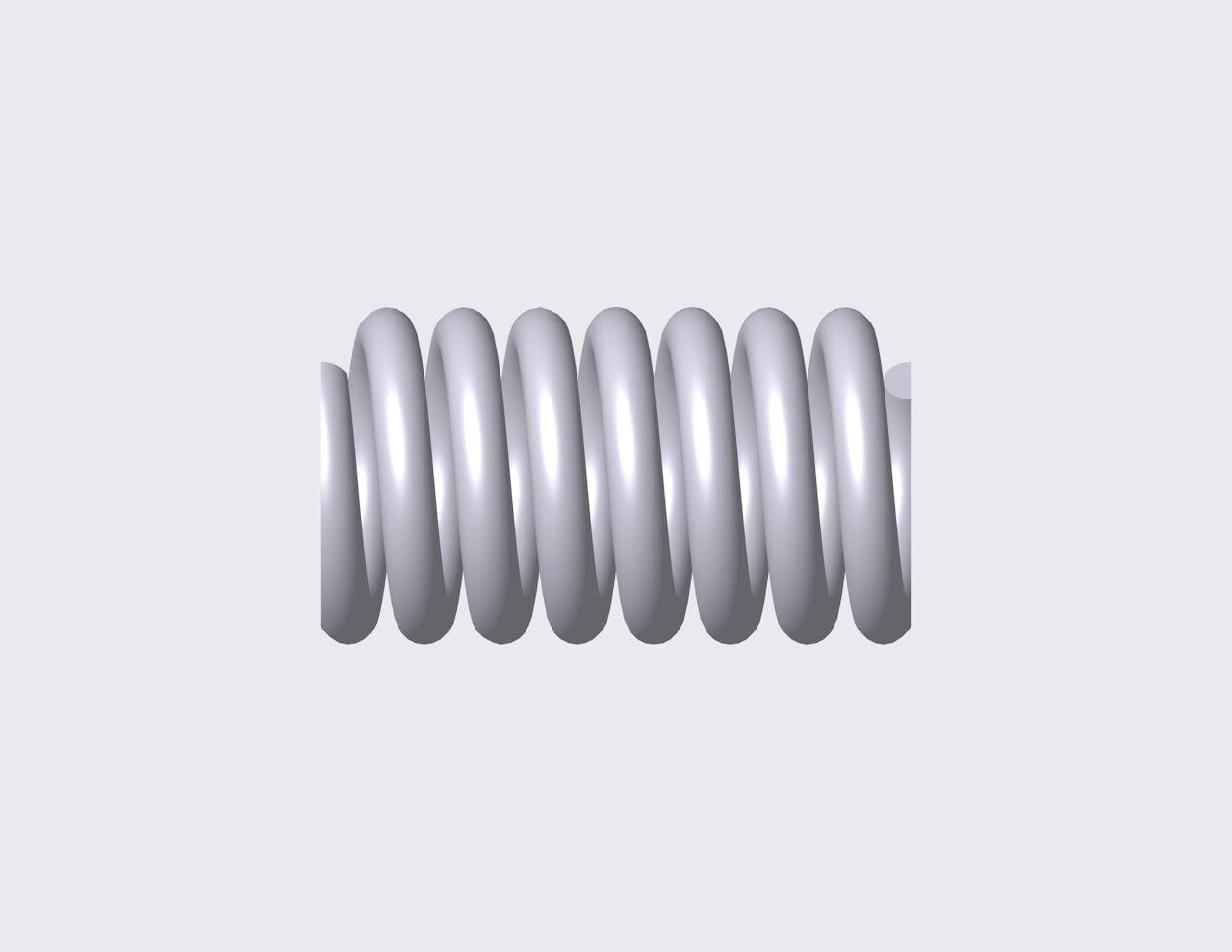

Compression spring manufactured from music wire with 7 coils and closed & ground ends. This spring features an O.D. of 0.472", and an I.D. of 0.315".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76210 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.827 in |
| Inside Diameter | 0.315 in |
| Material | Music Wire |
| Outside Diameter | 0.472 in |
| Part Type | Metric |
| Rate | 181.103 lbs/in |
| SKU | 76210CS |
| Solid Length | 0.551 in |
| Suggested Max Deflection | 0.262 in |
| Suggested Max Load | 47.484 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.079 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76210 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 21.01 mm |
| Inside Diameter | 8 mm |
| Material | Music Wire |
| Outside Diameter | 11.99 mm |
| Part Type | Metric |
| Rate | 31.71 N/mm |
| SKU | 76210CS |
| Solid Length | 14 mm |
| Suggested Max Deflection | 6.65 mm |
| Suggested Max Load | 211.21 N |
| Total Coils | 7 |
| Wire Diameter | 2.01 mm |
The 76210 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 76210CS compression spring is designed with a free length of 0.591" total of 5 coils, and a rate of 301.838 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 76210 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 76210CS compression spring is designed with a free length of 0.591" total of 5 coils, and a rate of 301.838 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 76210 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
