Century Spring

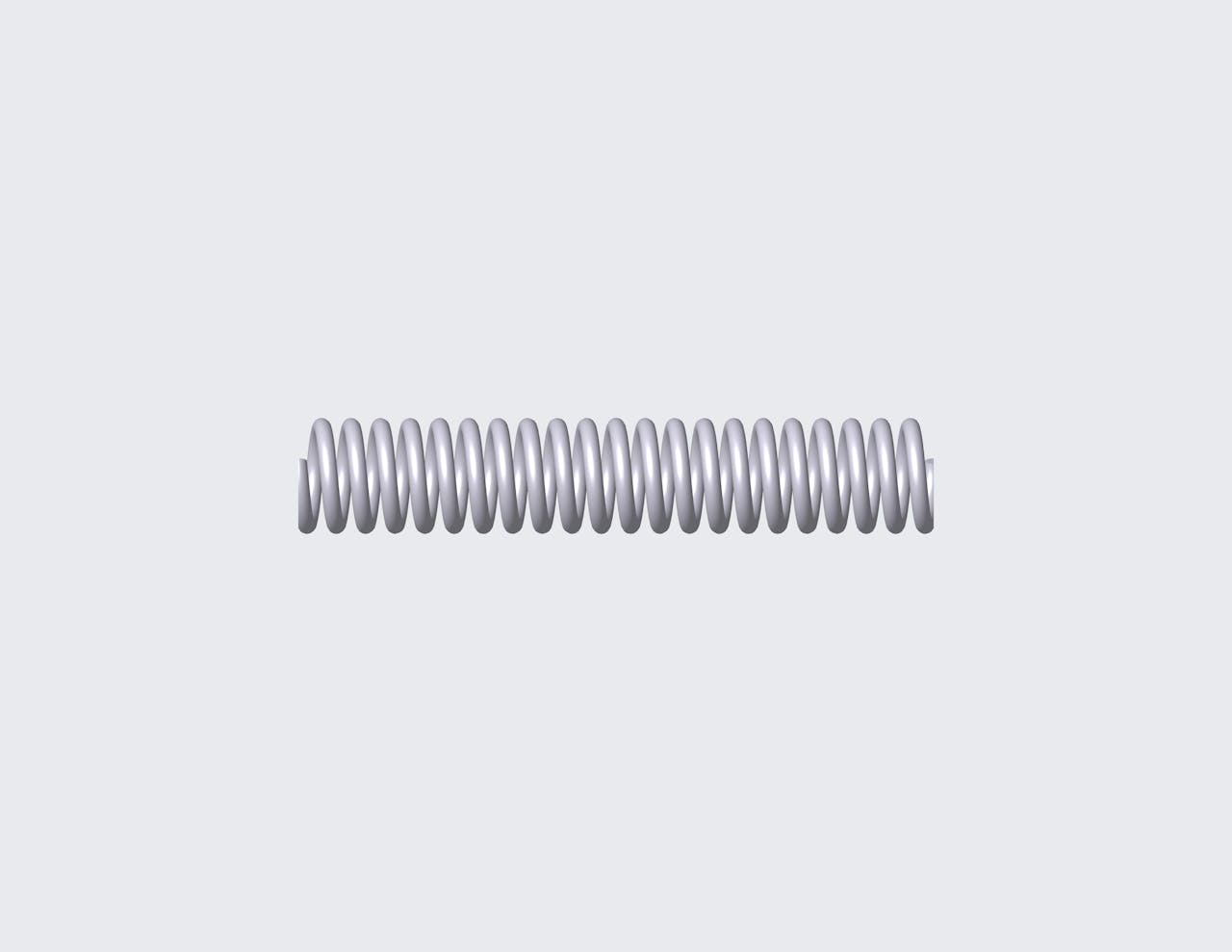

76208CS - 2.559" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 21 coils and closed & ground ends. This spring features an O.D. of 0.469", and an I.D. of 0.327".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76208
Ends Closed & Ground
Finish None
Free Length 2.559 in
Inside Diameter 0.327 in
Material Music Wire
Outside Diameter 0.469 in
Part Type Metric
Rate 30.349 lbs/in
SKU 76208CS
Solid Length 1.488 in
Suggested Max Deflection 1.188 in
Suggested Max Load 36.043 lbf
Total Coils 21
Wire Diameter 0.071 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76208
Ends Closed & Ground
Finish None
Free Length 65 mm
Inside Diameter 8.31 mm
Material Music Wire
Outside Diameter 11.91 mm
Part Type Metric
Rate 5.31 N/mm
SKU 76208CS
Solid Length 37.8 mm
Suggested Max Deflection 30.18 mm
Suggested Max Load 160.32 N
Total Coils 21
Wire Diameter 1.8 mm
The 76208CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.071" diameter music wire, the 76208 spring design exhibits reliable strength across its 21 active coils, withstanding repeated compression cycles with a maximum load of 36.043 lbf without succumbing to fatigue.

We manufacture the 76208 design to provide a compression spring that is 2.559" long at rest and provides a consistent rate of 30.349 lbs/in along its recommended maximum of 1.188" deflection. For best results, your application should fully accommodate the inner (0.327") and outer (0.469") diameters of this spring and be designed for its closed & ground end configuration.
