76190CS - 1.181" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

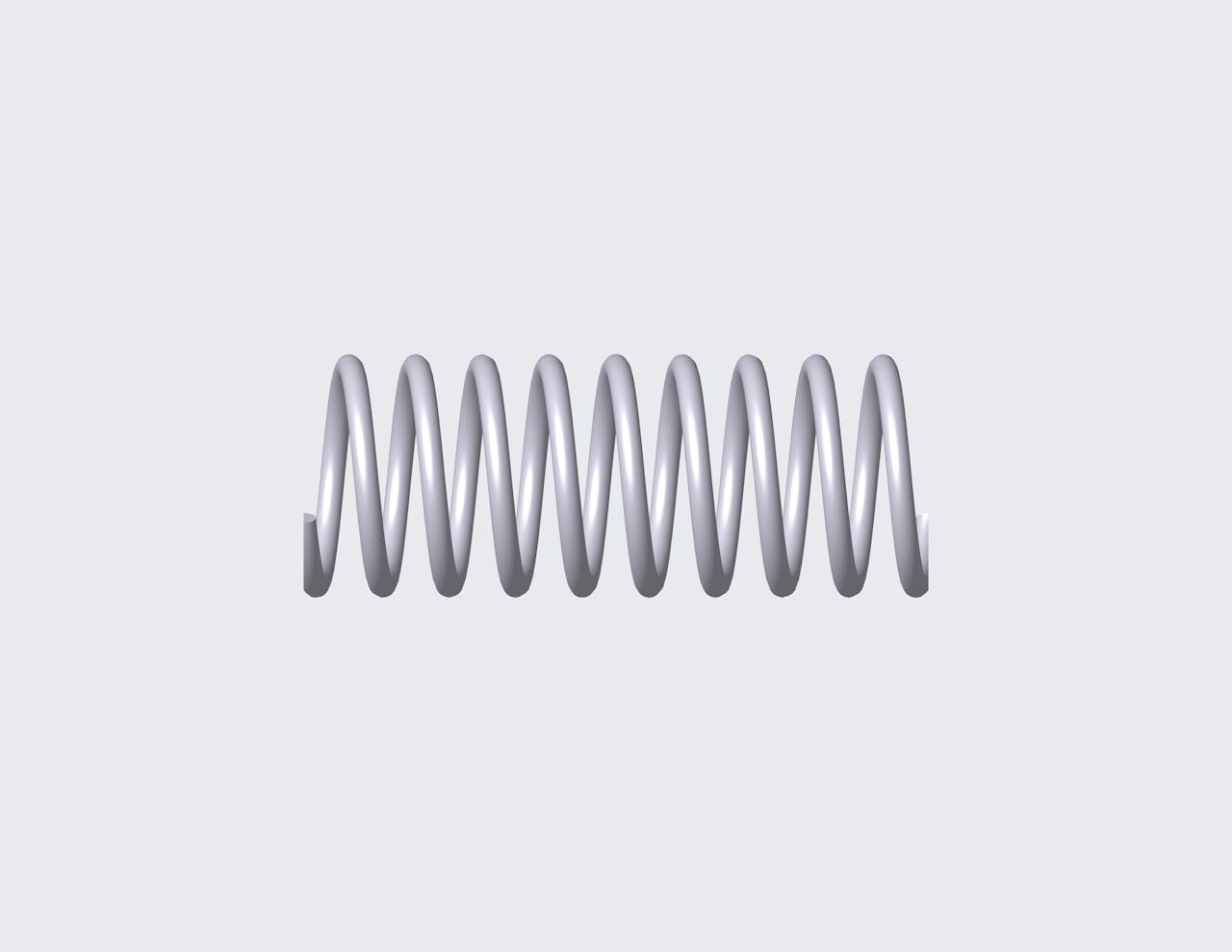

Compression spring manufactured from music wire with 9 coils and closed & ground ends. This spring features an O.D. of 0.461", and an I.D. of 0.366".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76190
Ends Closed & Ground
Finish None
Free Length 1.181 in
Inside Diameter 0.366 in
Material Music Wire
Outside Diameter 0.461 in
Part Type Metric
Rate 14.482 lbs/in
SKU 76190CS
Solid Length 0.425 in
Suggested Max Deflection 0.824 in
Suggested Max Load 11.932 lbf
Total Coils 9
Wire Diameter 0.047 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76190
Ends Closed & Ground
Finish None
Free Length 30 mm
Inside Diameter 9.3 mm
Material Music Wire
Outside Diameter 11.71 mm
Part Type Metric
Rate 2.54 N/mm
SKU 76190CS
Solid Length 10.8 mm
Suggested Max Deflection 20.93 mm
Suggested Max Load 53.07 N
Total Coils 9
Wire Diameter 1.19 mm
The 76190CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.047" diameter music wire, the 76190 spring design exhibits reliable strength across its 9 active coils, withstanding repeated compression cycles with a maximum load of 11.932 lbf without succumbing to fatigue.

We manufacture the 76190 design to provide a compression spring that is 1.181" long at rest and provides a consistent rate of 14.482 lbs/in along its recommended maximum of 0.824" deflection. For best results, your application should fully accommodate the inner (0.366") and outer (0.461") diameters of this spring and be designed for its closed & ground end configuration.
