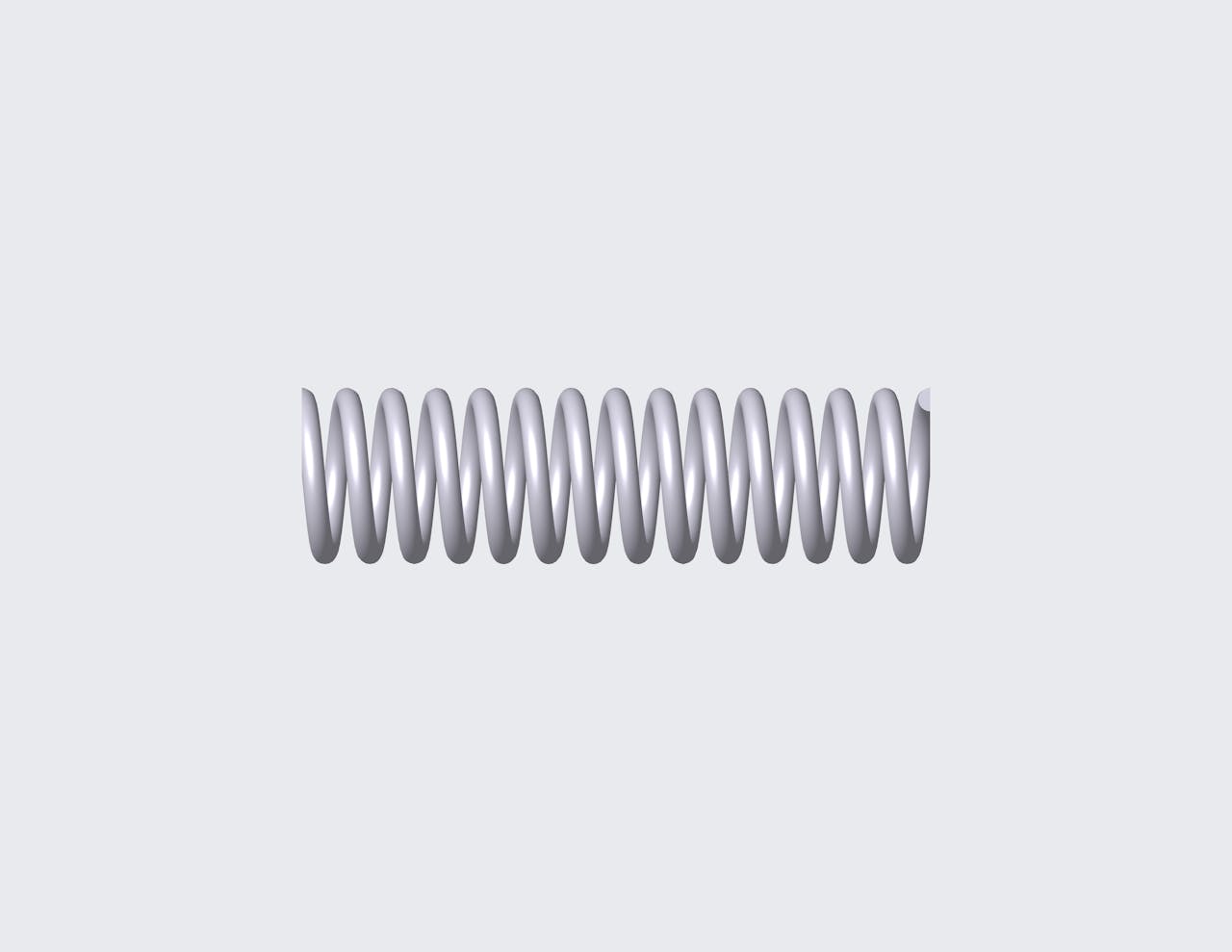

76167CS - 1.575" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from music wire with 13.5 coils and closed & ground ends. This spring features an O.D. of 0.443", and an I.D. of 0.325".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76167 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.575 in |
| Inside Diameter | 0.325 in |
| Material | Music Wire |
| Outside Diameter | 0.443 in |
| Part Type | Metric |
| Rate | 26.88 lbs/in |
| SKU | 76167CS |
| Solid Length | 0.797 in |
| Suggested Max Deflection | 0.859 in |
| Suggested Max Load | 23.102 lbf |
| Total Coils | 13.5 |
| Wire Diameter | 0.059 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76167 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 40.01 mm |
| Inside Diameter | 8.26 mm |
| Material | Music Wire |
| Outside Diameter | 11.25 mm |
| Part Type | Metric |
| Rate | 4.71 N/mm |
| SKU | 76167CS |
| Solid Length | 20.24 mm |
| Suggested Max Deflection | 21.82 mm |
| Suggested Max Load | 102.76 N |
| Total Coils | 13.5 |
| Wire Diameter | 1.5 mm |
The compression spring 76167CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76167 compression spring design exhibits exceptional tensile strength and resilience.
The 76167 design is manufactured with a free length of 1.575", with an outer diameter of 0.443", an inner diameter of 0.325", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 26.88 lbs/in.
The 76167CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76167 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 76167 design is manufactured with a free length of 1.575", with an outer diameter of 0.443", an inner diameter of 0.325", and a total of 13.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 26.88 lbs/in.
The 76167CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76167 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
