Century Spring

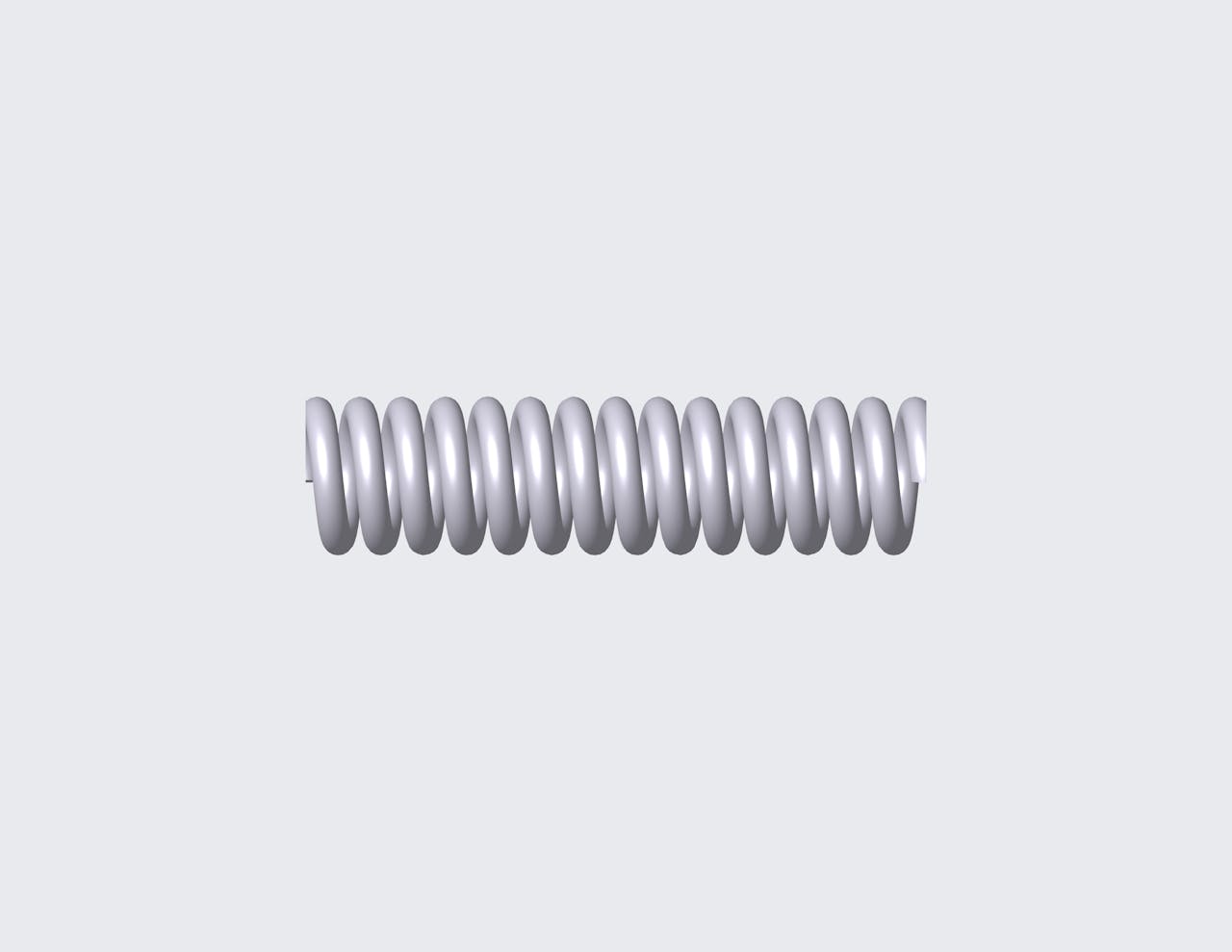

76124CS - 1.575" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 13.8 coils and closed & ground ends. This spring features an O.D. of 0.404", and an I.D. of 0.246".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76124
Ends Closed & Ground
Finish None
Free Length 1.575 in
Inside Diameter 0.246 in
Material Music Wire
Outside Diameter 0.404 in
Part Type Metric
Rate 136.663 lbs/in
SKU 76124CS
Solid Length 1.087 in
Suggested Max Deflection 0.397 in
Suggested Max Load 54.301 lbf
Total Coils 13.8
Wire Diameter 0.079 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76124
Ends Closed & Ground
Finish None
Free Length 40.01 mm
Inside Diameter 6.25 mm
Material Music Wire
Outside Diameter 10.26 mm
Part Type Metric
Rate 23.93 N/mm
SKU 76124CS
Solid Length 27.61 mm
Suggested Max Deflection 10.08 mm
Suggested Max Load 241.53 N
Total Coils 13.8
Wire Diameter 2.01 mm
The compression spring 76124CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76124 compression spring design exhibits exceptional tensile strength and resilience.

The 76124 design is manufactured with a free length of 1.575", with an outer diameter of 0.404", an inner diameter of 0.246", and a total of 13.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 136.663 lbs/in.

The 76124CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 76124 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
