76109CS - 0.984" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

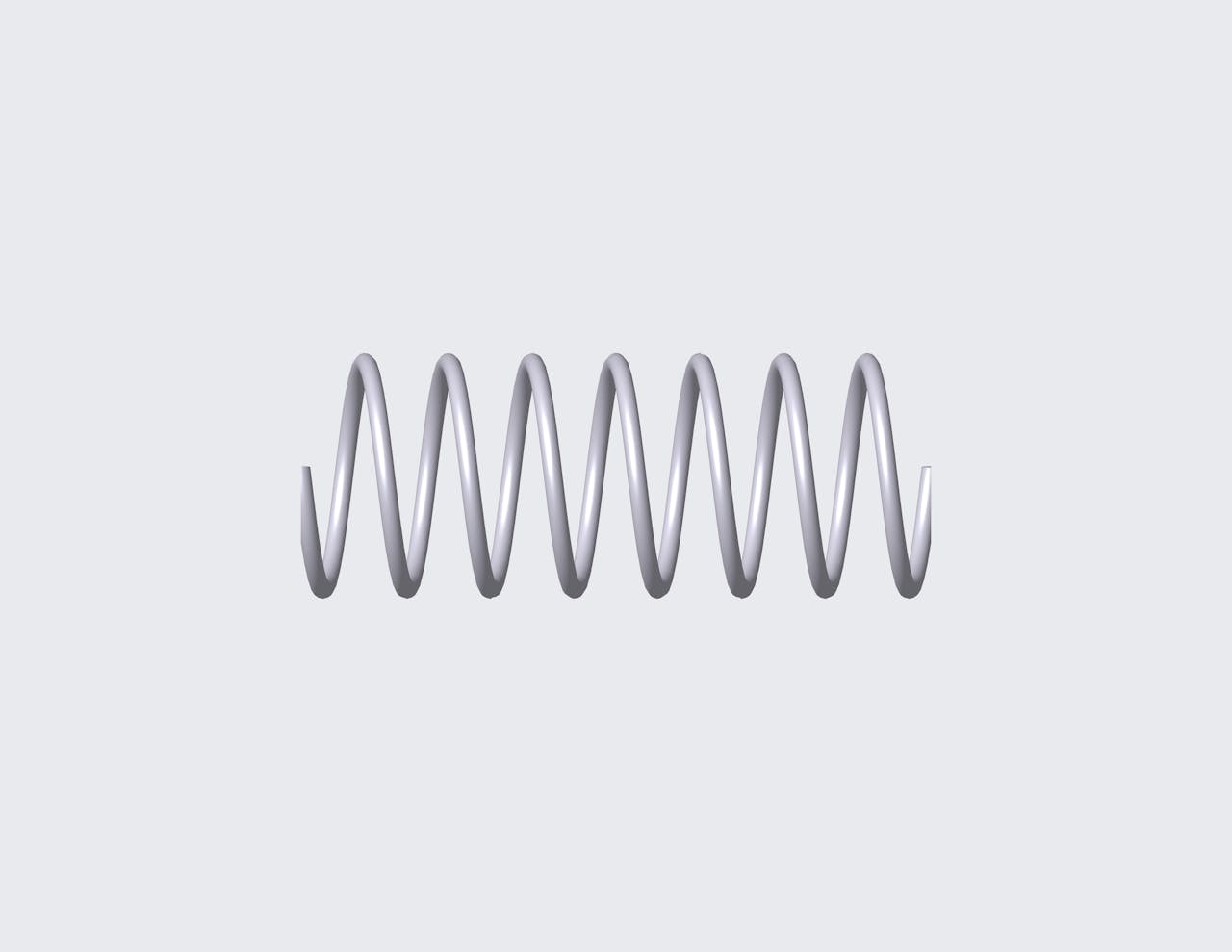

Compression spring manufactured from music wire with 7.3 coils and closed & ground ends. This spring features an O.D. of 0.384", and an I.D. of 0.325".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76109 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.984 in |
| Inside Diameter | 0.325 in |
| Material | Music Wire |
| Outside Diameter | 0.384 in |
| Part Type | Metric |
| Rate | 4.635 lbs/in |
| SKU | 76109CS |
| Solid Length | 0.216 in |
| Suggested Max Deflection | 0.824 in |
| Suggested Max Load | 3.819 lbf |
| Total Coils | 7.3 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 76109 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 24.99 mm |
| Inside Diameter | 8.26 mm |
| Material | Music Wire |
| Outside Diameter | 9.75 mm |
| Part Type | Metric |
| Rate | 0.81 N/mm |
| SKU | 76109CS |
| Solid Length | 5.49 mm |
| Suggested Max Deflection | 20.93 mm |
| Suggested Max Load | 16.99 N |
| Total Coils | 7.3 |
| Wire Diameter | 0.76 mm |
The compression spring 76109CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76109 compression spring design exhibits exceptional tensile strength and resilience.
The 76109 design is manufactured with a free length of 0.984", with an outer diameter of 0.384", an inner diameter of 0.325", and a total of 7.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.635 lbs/in.
The 76109CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76109 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 76109 design is manufactured with a free length of 0.984", with an outer diameter of 0.384", an inner diameter of 0.325", and a total of 7.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.635 lbs/in.
The 76109CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76109 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
