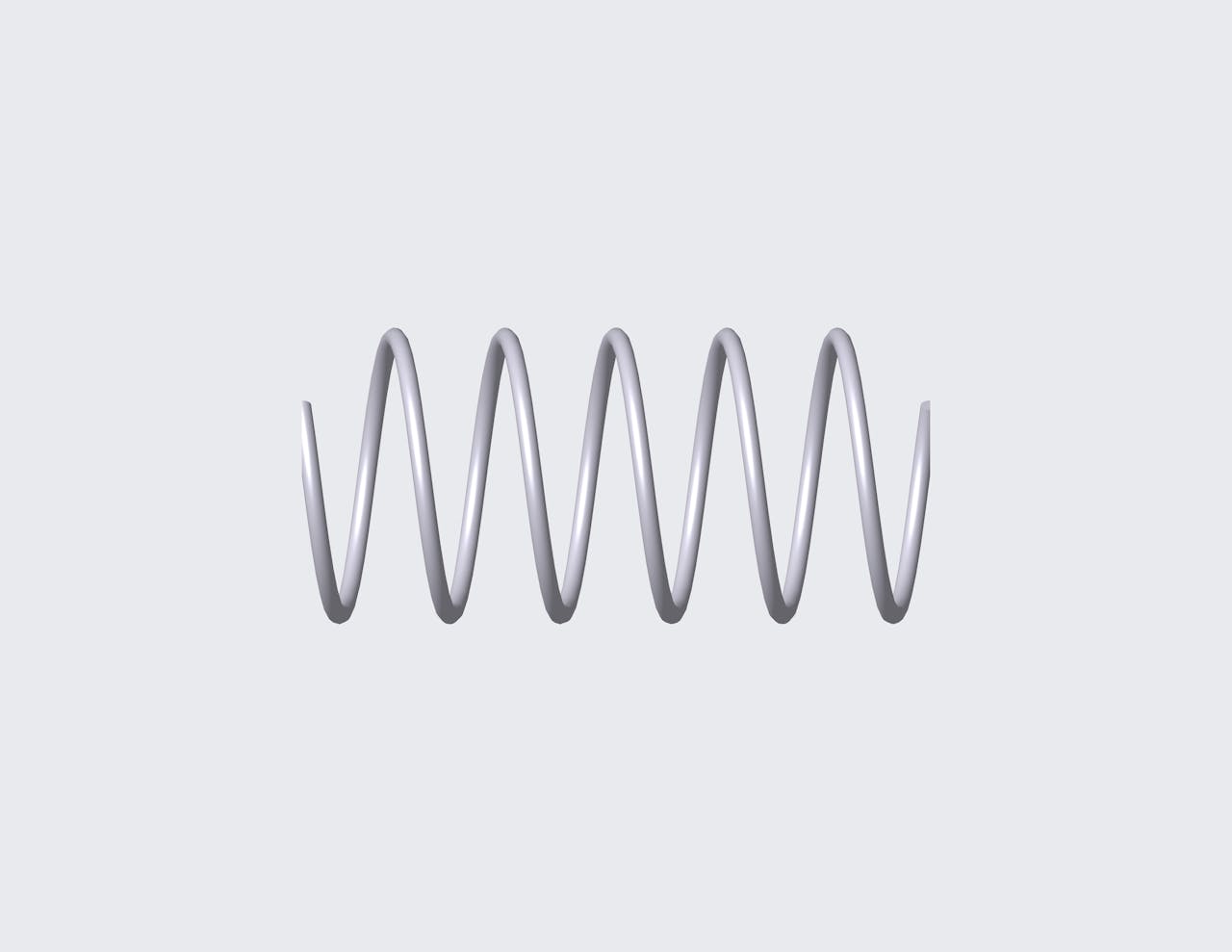

76091CS - 0.787" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.372", and an I.D. of 0.325".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 76091
Ends Closed & Ground
Finish None
Free Length 0.787 in
Inside Diameter 0.325 in
Material Music Wire
Outside Diameter 0.372 in
Part Type Metric
Rate 3.023 lbs/in
SKU 76091CS
Solid Length 0.13 in
Suggested Max Deflection 0.696 in
Suggested Max Load 2.104 lbf
Total Coils 5.5
Wire Diameter 0.024 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 76091
Ends Closed & Ground
Finish None
Free Length 19.99 mm
Inside Diameter 8.26 mm
Material Music Wire
Outside Diameter 9.45 mm
Part Type Metric
Rate 0.53 N/mm
SKU 76091CS
Solid Length 3.3 mm
Suggested Max Deflection 17.68 mm
Suggested Max Load 9.36 N
Total Coils 5.5
Wire Diameter 0.61 mm
The compression spring 76091CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76091 compression spring design exhibits exceptional tensile strength and resilience.

The 76091 design is manufactured with a free length of 0.787", with an outer diameter of 0.372", an inner diameter of 0.325", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.023 lbs/in.

The 76091CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 76091 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
