76012CS - 1.969" Music Wire Compression Spring
Inventory:
|
|
Estimated Lead Time | |
---|---|

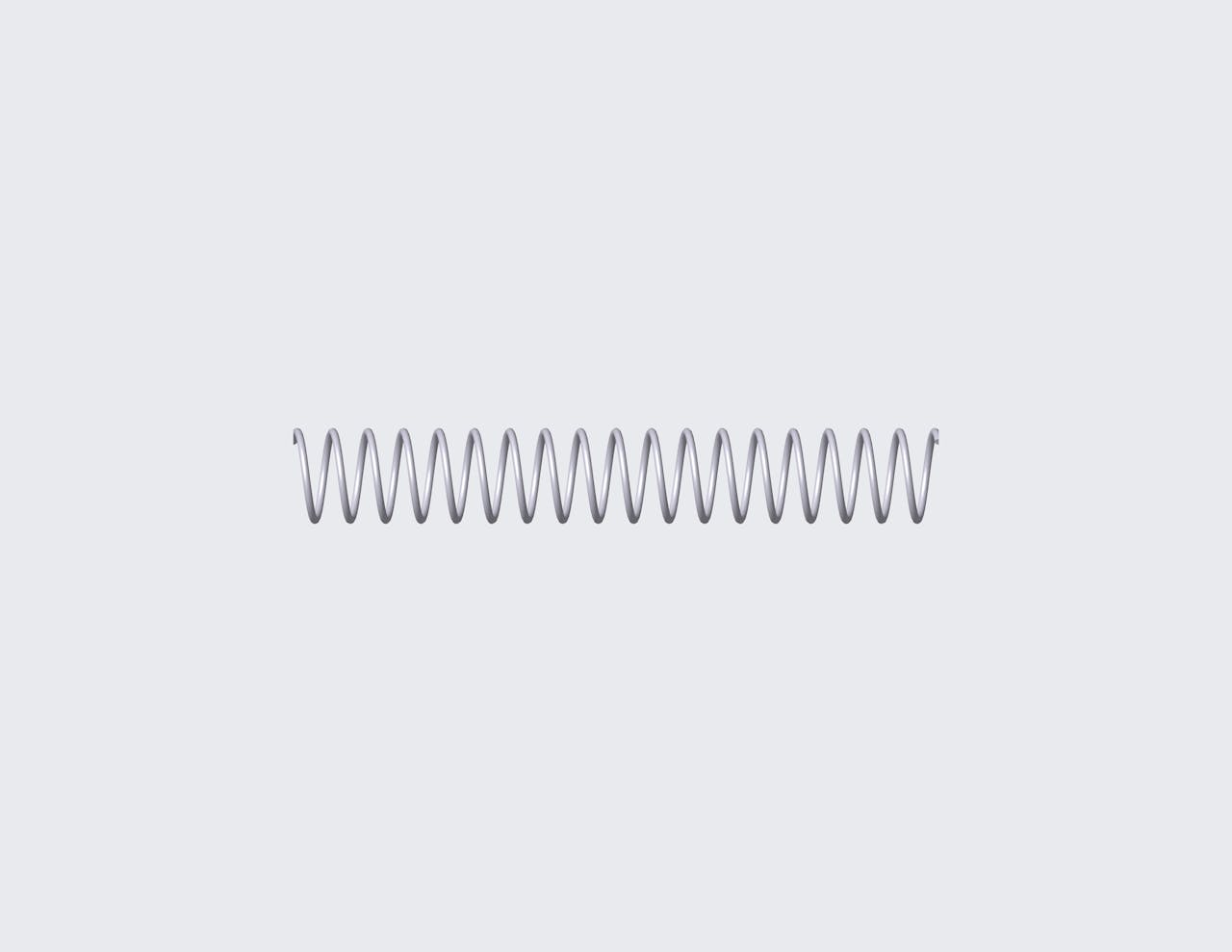

Compression spring manufactured from music wire with 18 coils and closed & ground ends. This spring features an O.D. of 0.293", and an I.D. of 0.246".


Label | Value |
---|---|
Brand | Century Spring |
Display Name | 76012 |
Ends | Closed & Ground |
Finish | None |
Free Length | 1.969 in |
Inside Diameter | 0.246 in |
Material | Music Wire |
Outside Diameter | 0.293 in |
Part Type | Metric |
Rate | 1.426 lbs/in |
SKU | 76012CS |
Solid Length | 0.425 in |
Suggested Max Deflection | 1.856 in |
Suggested Max Load | 2.647 lbf |
Total Coils | 18 |
Wire Diameter | 0.024 in |
Label | Value |
---|---|
Brand | Century Spring |
Display Name | 76012 |
Ends | Closed & Ground |
Finish | None |
Free Length | 50.01 mm |
Inside Diameter | 6.25 mm |
Material | Music Wire |
Outside Diameter | 7.44 mm |
Part Type | Metric |
Rate | 0.25 N/mm |
SKU | 76012CS |
Solid Length | 10.8 mm |
Suggested Max Deflection | 47.14 mm |
Suggested Max Load | 11.77 N |
Total Coils | 18 |
Wire Diameter | 0.61 mm |
The compression spring 76012CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 76012 compression spring design exhibits exceptional tensile strength and resilience.
The 76012 design is manufactured with a free length of 1.969", with an outer diameter of 0.293", an inner diameter of 0.246", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.426 lbs/in.
The 76012CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76012 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 76012 design is manufactured with a free length of 1.969", with an outer diameter of 0.293", an inner diameter of 0.246", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.426 lbs/in.
The 76012CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 76012 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
