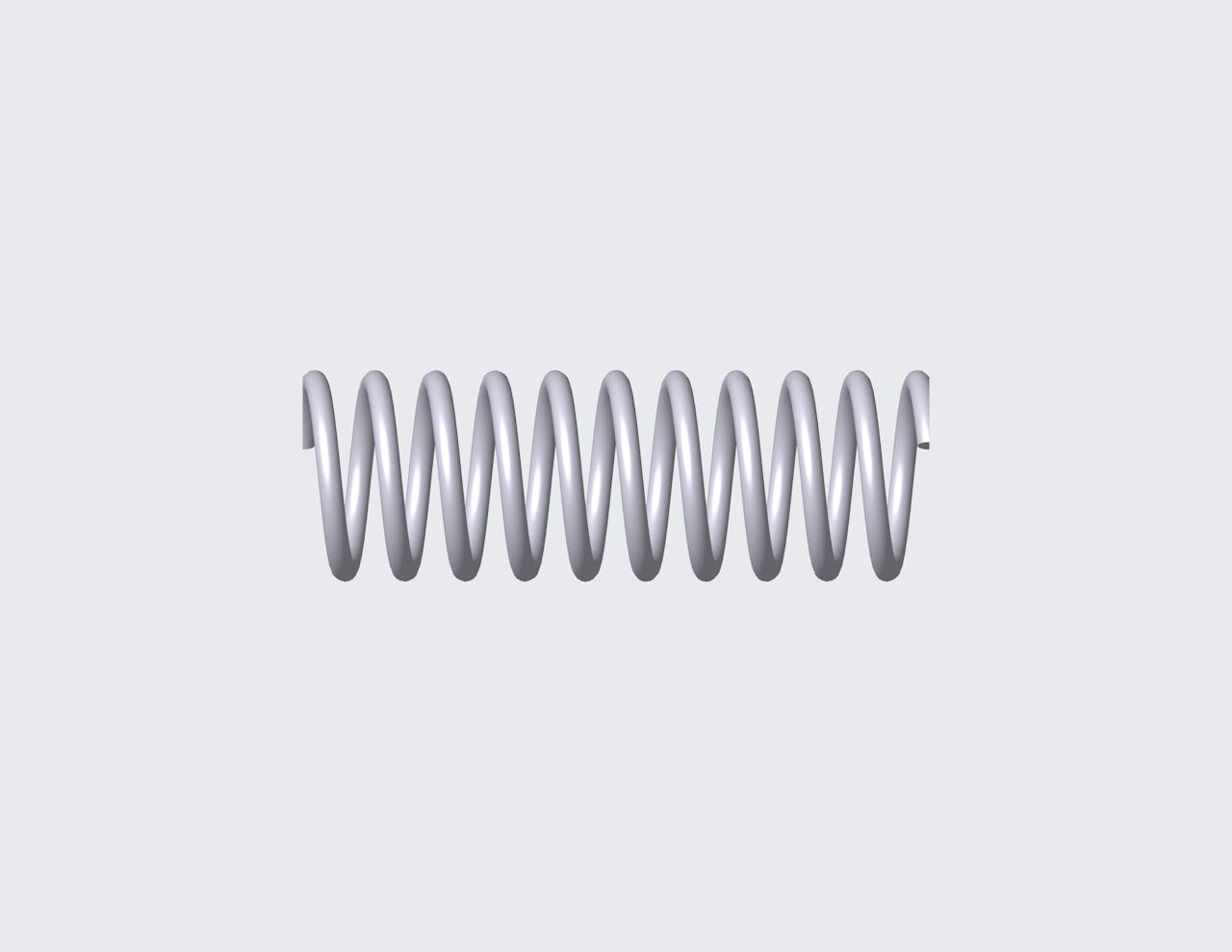

75981CS - 0.827" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 10 coils and closed & ground ends. This spring features an O.D. of 0.28", and an I.D. of 0.217".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75981
Ends Closed & Ground
Finish None
Free Length 0.827 in
Inside Diameter 0.217 in
Material Music Wire
Outside Diameter 0.28 in
Part Type Metric
Rate 11.588 lbs/in
SKU 75981CS
Solid Length 0.315 in
Suggested Max Deflection 0.534 in
Suggested Max Load 6.187 lbf
Total Coils 10
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75981
Ends Closed & Ground
Finish None
Free Length 21.01 mm
Inside Diameter 5.51 mm
Material Music Wire
Outside Diameter 7.11 mm
Part Type Metric
Rate 2.03 N/mm
SKU 75981CS
Solid Length 8 mm
Suggested Max Deflection 13.56 mm
Suggested Max Load 27.52 N
Total Coils 10
Wire Diameter 0.79 mm
The 75981CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.031" diameter music wire, the 75981 spring design exhibits reliable strength across its 10 active coils, withstanding repeated compression cycles with a maximum load of 6.187 lbf without succumbing to fatigue.

We manufacture the 75981 design to provide a compression spring that is 0.827" long at rest and provides a consistent rate of 11.588 lbs/in along its recommended maximum of 0.534" deflection. For best results, your application should fully accommodate the inner (0.217") and outer (0.28") diameters of this spring and be designed for its closed & ground end configuration.
