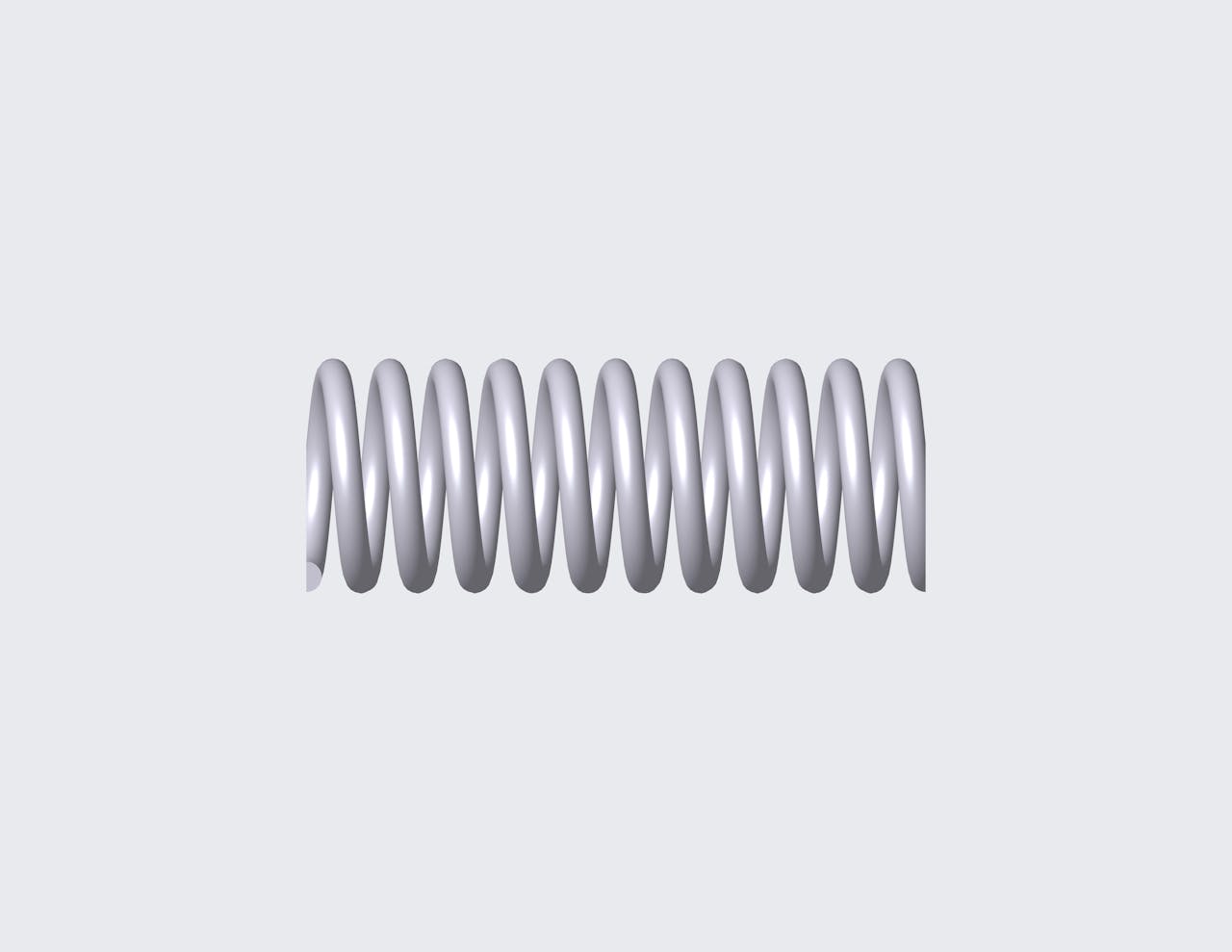

75929CS - 0.591" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 10.4 coils and closed & ground ends. This spring features an O.D. of 0.224", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75929
Ends Closed & Ground
Finish None
Free Length 0.591 in
Inside Diameter 0.165 in
Material Music Wire
Outside Diameter 0.224 in
Part Type Metric
Rate 17.576 lbs/in
SKU 75929CS
Solid Length 0.307 in
Suggested Max Deflection 0.36 in
Suggested Max Load 6.335 lbf
Total Coils 10.4
Wire Diameter 0.03 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75929
Ends Closed & Ground
Finish None
Free Length 15.01 mm
Inside Diameter 4.19 mm
Material Music Wire
Outside Diameter 5.69 mm
Part Type Metric
Rate 3.08 N/mm
SKU 75929CS
Solid Length 7.8 mm
Suggested Max Deflection 9.14 mm
Suggested Max Load 28.18 N
Total Coils 10.4
Wire Diameter 0.76 mm
The 75929 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75929CS compression spring is designed with a free length of 0.394" total of 7.3 coils, and a rate of 27.857 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75929 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
