75915CS - 0.394" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

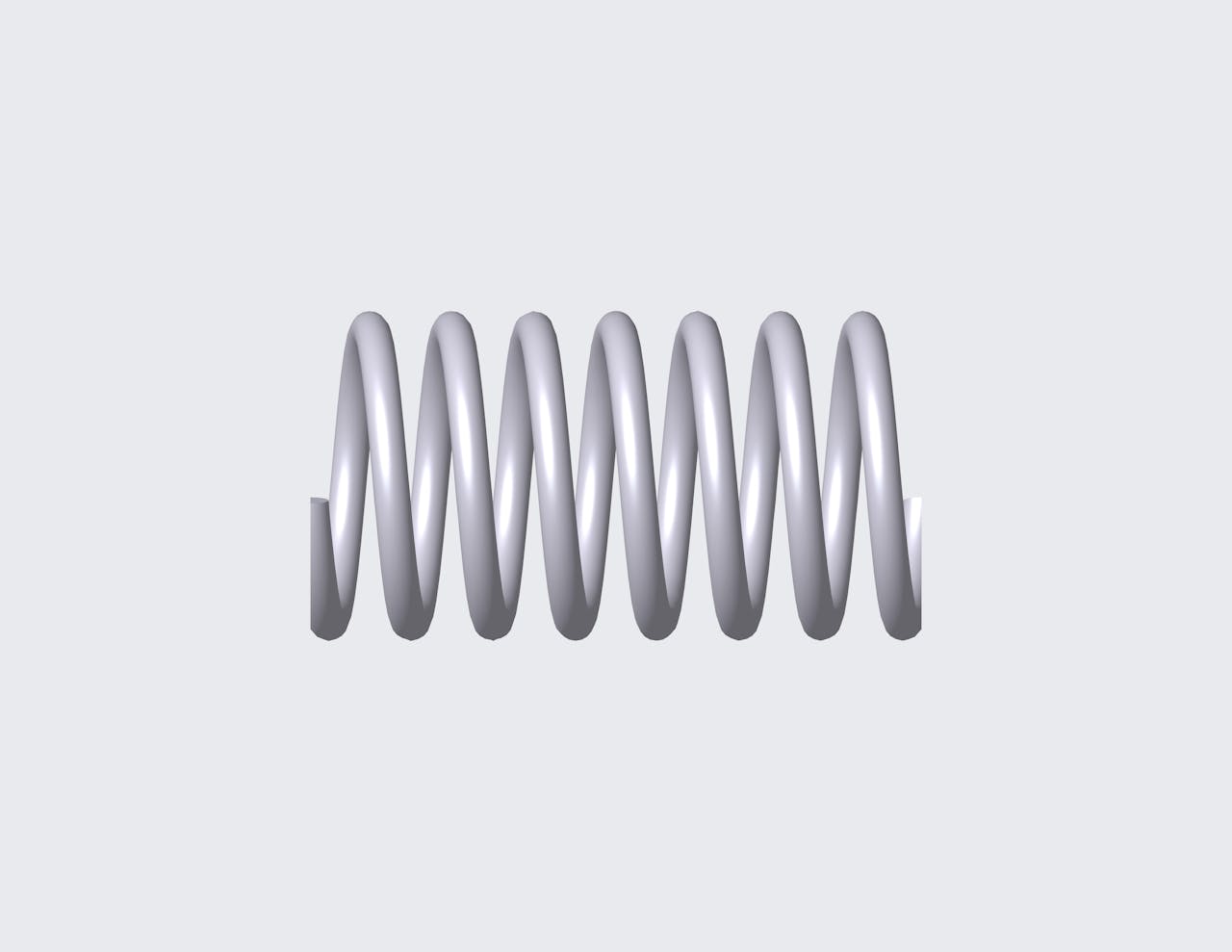

Compression spring manufactured from music wire with 7 coils and closed & ground ends. This spring features an O.D. of 0.213", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75915
Ends Closed & Ground
Finish None
Free Length 0.394 in
Inside Diameter 0.165 in
Material Music Wire
Outside Diameter 0.213 in
Part Type Metric
Rate 13.264 lbs/in
SKU 75915CS
Solid Length 0.165 in
Suggested Max Deflection 0.271 in
Suggested Max Load 3.592 lbf
Total Coils 7
Wire Diameter 0.024 in
The 75915CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.024" diameter music wire, the 75915 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 3.592 lbf without succumbing to fatigue.

We manufacture the 75915 design to provide a compression spring that is 0.394" long at rest and provides a consistent rate of 13.264 lbs/in along its recommended maximum of 0.271" deflection. For best results, your application should fully accommodate the inner (0.165") and outer (0.213") diameters of this spring and be designed for its closed & ground end configuration.
