75909CS - 1.575" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

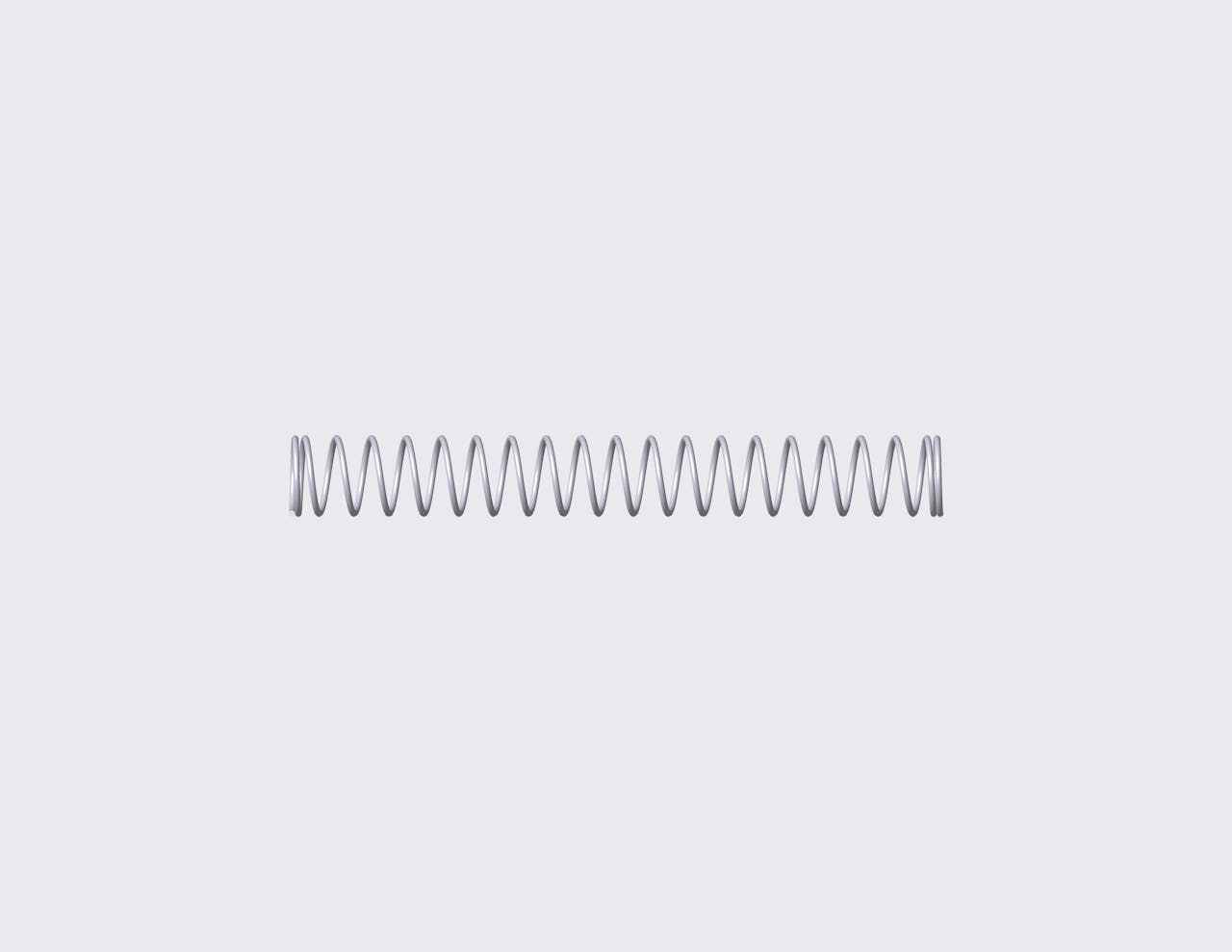

Compression spring manufactured from music wire with 21 coils and closed ends. This spring features an O.D. of 0.197", and an I.D. of 0.165".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75909
Ends Closed
Finish None
Free Length 1.575 in
Inside Diameter 0.165 in
Material Music Wire
Outside Diameter 0.197 in
Part Type Metric
Rate 0.783 lbs/in
SKU 75909CS
Solid Length 0.346 in
Suggested Max Deflection 1.579 in
Suggested Max Load 1.237 lbf
Total Coils 21
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75909
Ends Closed
Finish None
Free Length 40.01 mm
Inside Diameter 4.19 mm
Material Music Wire
Outside Diameter 5 mm
Part Type Metric
Rate 0.14 N/mm
SKU 75909CS
Solid Length 8.79 mm
Suggested Max Deflection 40.11 mm
Suggested Max Load 5.5 N
Total Coils 21
Wire Diameter 0.41 mm
The 75909CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.016" diameter music wire, the 75909 spring design exhibits reliable strength across its 21 active coils, withstanding repeated compression cycles with a maximum load of 1.237 lbf without succumbing to fatigue.

We manufacture the 75909 design to provide a compression spring that is 1.575" long at rest and provides a consistent rate of 0.783 lbs/in along its recommended maximum of 1.579" deflection. For best results, your application should fully accommodate the inner (0.165") and outer (0.197") diameters of this spring and be designed for its closed end configuration.
