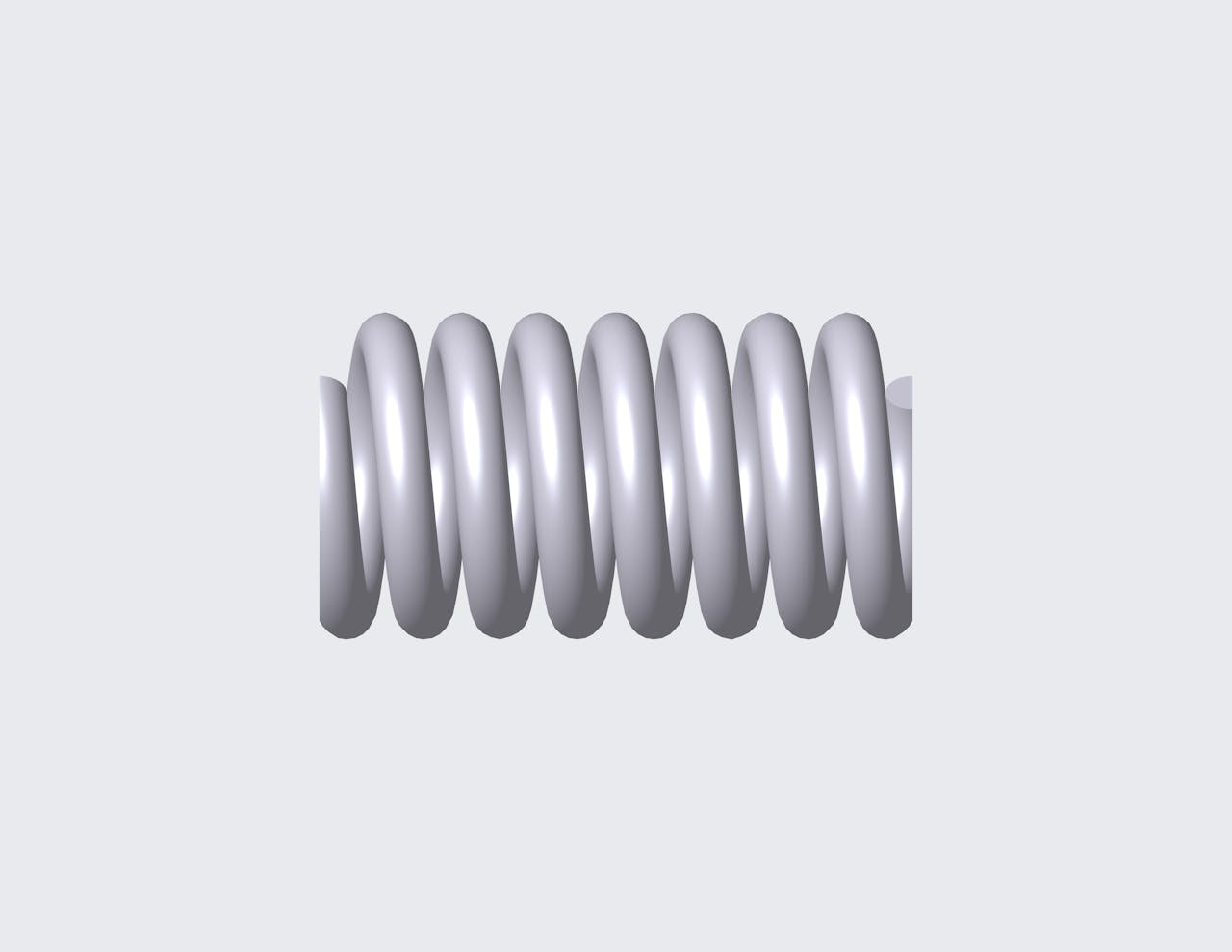

75894CS - 0.343" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 7 coils and closed & ground ends. This spring features an O.D. of 0.189", and an I.D. of 0.126".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75894
Ends Closed & Ground
Finish None
Free Length 0.343 in
Inside Diameter 0.126 in
Material Music Wire
Outside Diameter 0.189 in
Part Type Metric
Rate 72.441 lbs/in
SKU 75894CS
Solid Length 0.22 in
Suggested Max Deflection 0.122 in
Suggested Max Load 8.828 lbf
Total Coils 7
Wire Diameter 0.031 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75894
Ends Closed & Ground
Finish None
Free Length 8.71 mm
Inside Diameter 3.2 mm
Material Music Wire
Outside Diameter 4.8 mm
Part Type Metric
Rate 12.68 N/mm
SKU 75894CS
Solid Length 5.59 mm
Suggested Max Deflection 3.1 mm
Suggested Max Load 39.27 N
Total Coils 7
Wire Diameter 0.79 mm
The 75894CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.031" diameter music wire, the 75894 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 8.828 lbf without succumbing to fatigue.

We manufacture the 75894 design to provide a compression spring that is 0.343" long at rest and provides a consistent rate of 72.441 lbs/in along its recommended maximum of 0.122" deflection. For best results, your application should fully accommodate the inner (0.126") and outer (0.189") diameters of this spring and be designed for its closed & ground end configuration.
