75892CS - 0.236" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

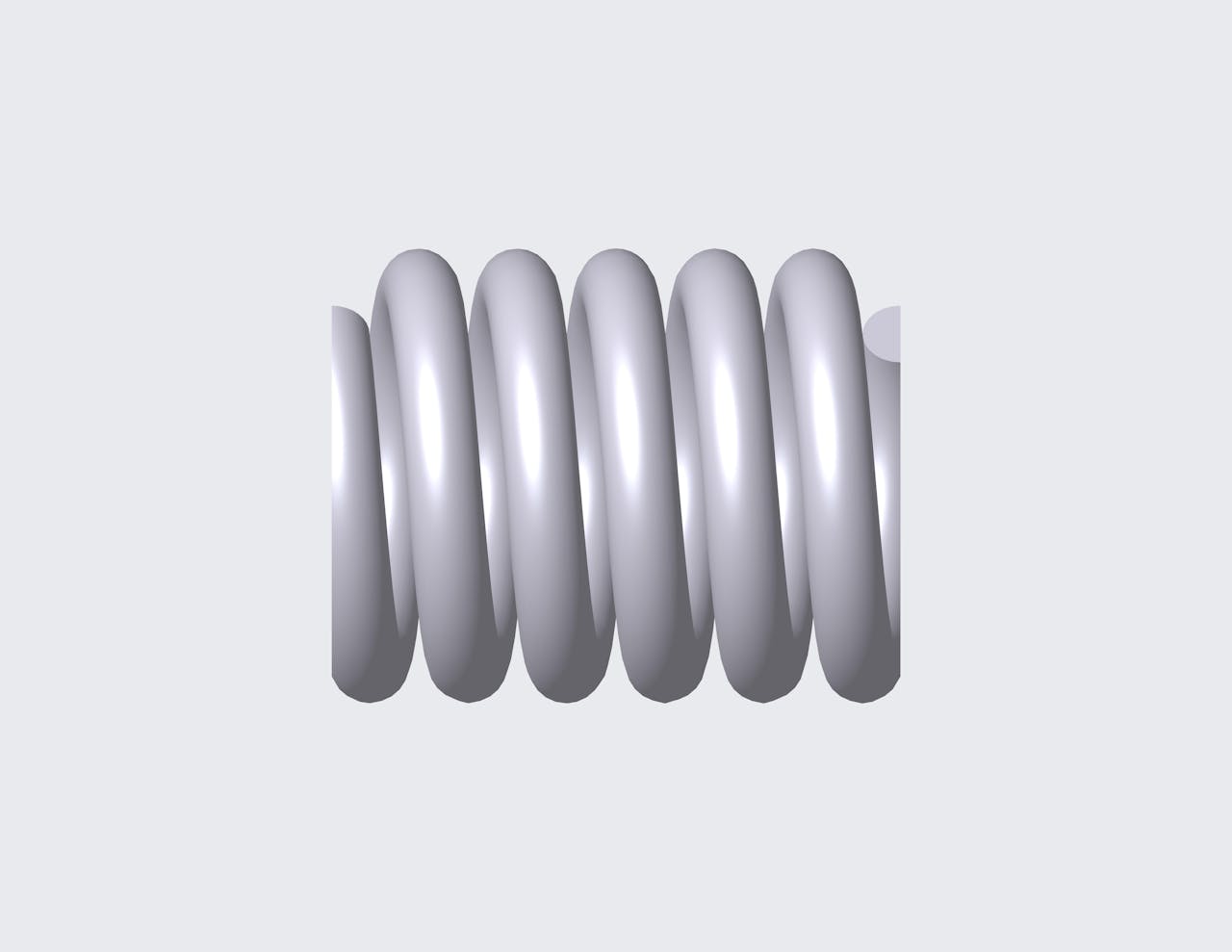

Compression spring manufactured from music wire with 5 coils and closed & ground ends. This spring features an O.D. of 0.189", and an I.D. of 0.126".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75892
Ends Closed & Ground
Finish None
Free Length 0.236 in
Inside Diameter 0.126 in
Material Music Wire
Outside Diameter 0.189 in
Part Type Metric
Rate 120.735 lbs/in
SKU 75892CS
Solid Length 0.157 in
Suggested Max Deflection 0.073 in
Suggested Max Load 8.828 lbf
Total Coils 5
Wire Diameter 0.031 in
The compression spring 75892CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75892 compression spring design exhibits exceptional tensile strength and resilience.

The 75892 design is manufactured with a free length of 0.236", with an outer diameter of 0.189", an inner diameter of 0.126", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 120.735 lbs/in.

The 75892CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75892 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
