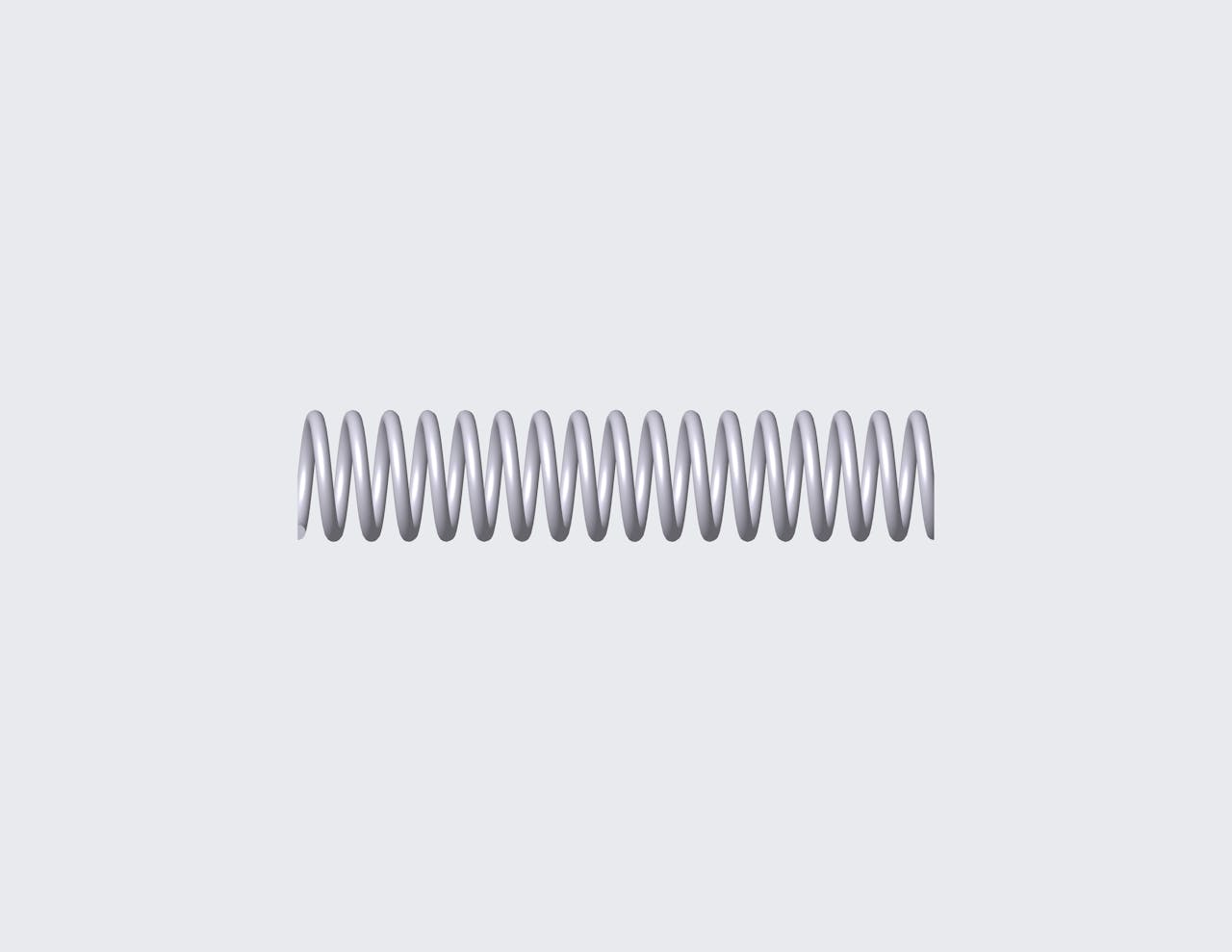

75879CS - 0.787" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 16.5 coils and closed & ground ends. This spring features an O.D. of 0.163", and an I.D. of 0.124".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75879 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.787 in |
| Inside Diameter | 0.124 in |
| Material | Music Wire |
| Outside Diameter | 0.163 in |
| Part Type | Metric |
| Rate | 5.017 lbs/in |
| SKU | 75879CS |
| Solid Length | 0.325 in |
| Suggested Max Deflection | 0.553 in |
| Suggested Max Load | 2.776 lbf |
| Total Coils | 16.5 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75879 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19.99 mm |
| Inside Diameter | 3.15 mm |
| Material | Music Wire |
| Outside Diameter | 4.14 mm |
| Part Type | Metric |
| Rate | 0.88 N/mm |
| SKU | 75879CS |
| Solid Length | 8.26 mm |
| Suggested Max Deflection | 14.05 mm |
| Suggested Max Load | 12.35 N |
| Total Coils | 16.5 |
| Wire Diameter | 0.51 mm |
The 75879CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.02" diameter music wire, the 75879 spring design exhibits reliable strength across its 16.5 active coils, withstanding repeated compression cycles with a maximum load of 2.776 lbf without succumbing to fatigue.
We manufacture the 75879 design to provide a compression spring that is 0.787" long at rest and provides a consistent rate of 5.017 lbs/in along its recommended maximum of 0.553" deflection. For best results, your application should fully accommodate the inner (0.124") and outer (0.163") diameters of this spring and be designed for its closed & ground end configuration.
