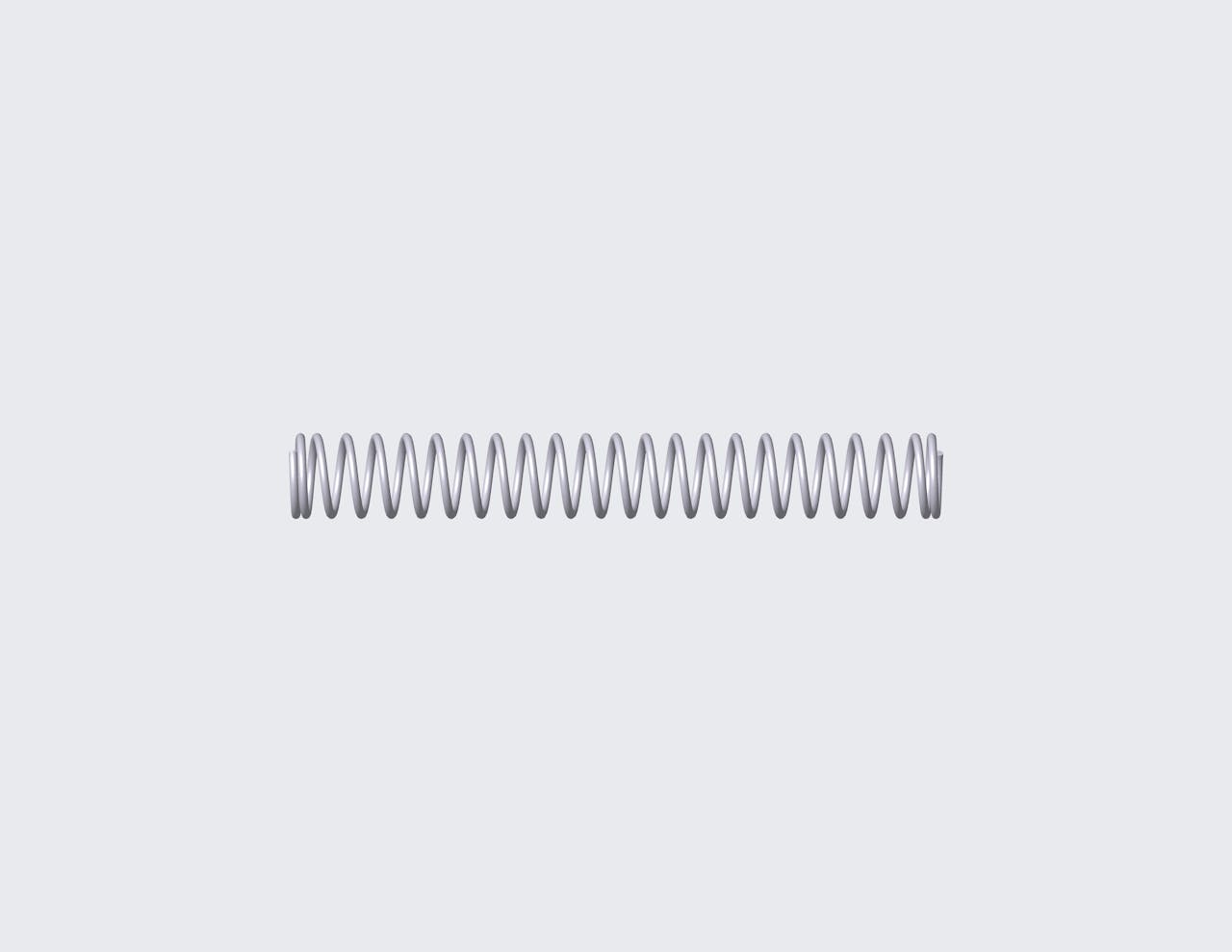

75877CS - 1.181" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 23.7 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.124".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75877 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.181 in |
| Inside Diameter | 0.124 in |
| Material | Music Wire |
| Outside Diameter | 0.156 in |
| Part Type | Metric |
| Rate | 1.492 lbs/in |
| SKU | 75877CS |
| Solid Length | 0.389 in |
| Suggested Max Deflection | 1.037 in |
| Suggested Max Load | 1.548 lbf |
| Total Coils | 23.7 |
| Wire Diameter | 0.016 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75877 |
| Ends | Closed |
| Finish | None |
| Free Length | 30 mm |
| Inside Diameter | 3.15 mm |
| Material | Music Wire |
| Outside Diameter | 3.96 mm |
| Part Type | Metric |
| Rate | 0.26 N/mm |
| SKU | 75877CS |
| Solid Length | 9.88 mm |
| Suggested Max Deflection | 26.34 mm |
| Suggested Max Load | 6.89 N |
| Total Coils | 23.7 |
| Wire Diameter | 0.41 mm |
The compression spring 75877CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75877 compression spring design exhibits exceptional tensile strength and resilience.
The 75877 design is manufactured with a free length of 1.181", with an outer diameter of 0.156", an inner diameter of 0.124", and a total of 23.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.492 lbs/in.
The 75877CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75877 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 75877 design is manufactured with a free length of 1.181", with an outer diameter of 0.156", an inner diameter of 0.124", and a total of 23.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.492 lbs/in.
The 75877CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75877 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
