Century Spring

75869CS - 0.217" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

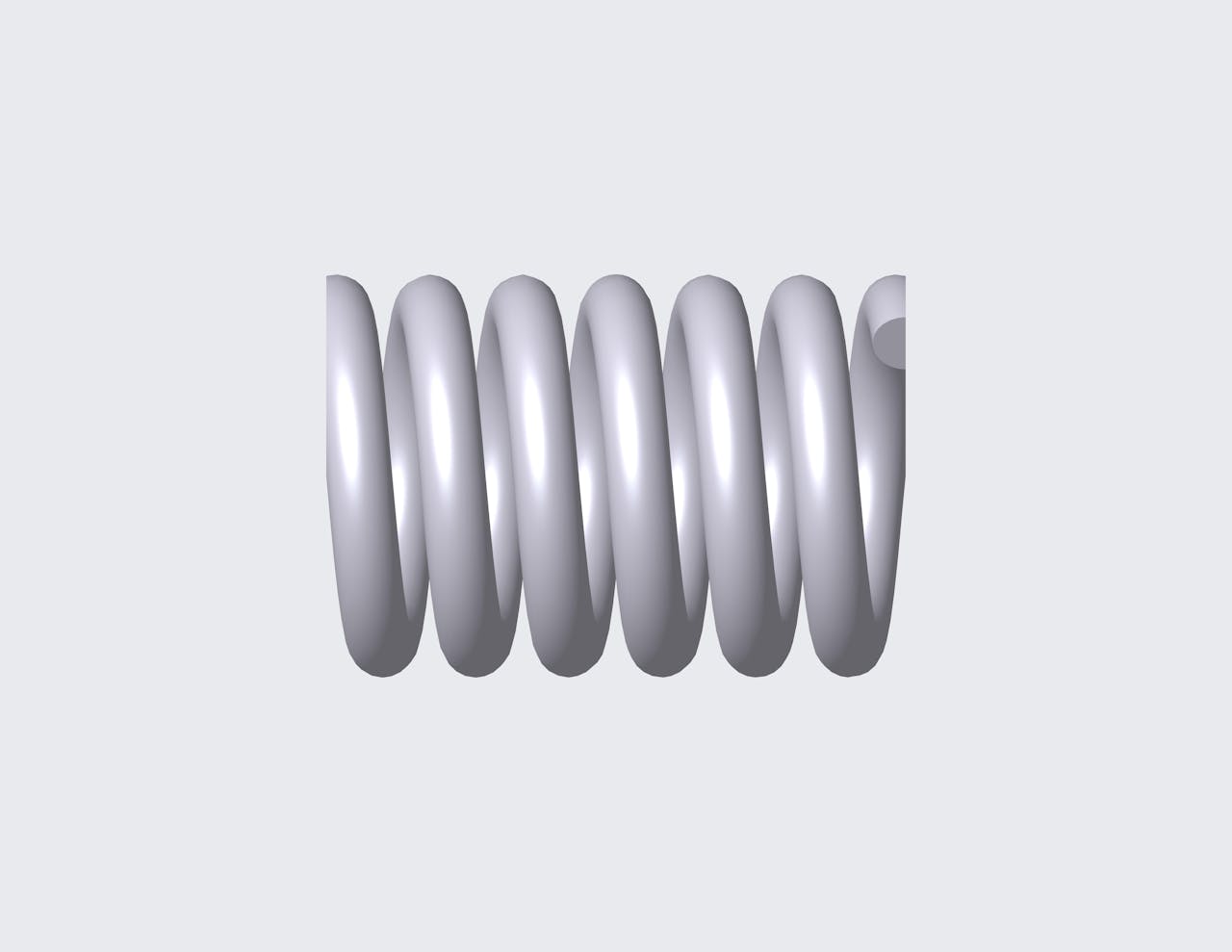

Compression spring manufactured from music wire with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.151", and an I.D. of 0.101".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75869
Ends Closed & Ground
Finish None
Free Length 0.217 in
Inside Diameter 0.101 in
Material Music Wire
Outside Diameter 0.151 in
Part Type Metric
Rate 77.736 lbs/in
SKU 75869CS
Solid Length 0.136 in
Suggested Max Deflection 0.072 in
Suggested Max Load 5.593 lbf
Total Coils 5.5
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75869
Ends Closed & Ground
Finish None
Free Length 5.51 mm
Inside Diameter 2.57 mm
Material Music Wire
Outside Diameter 3.84 mm
Part Type Metric
Rate 13.61 N/mm
SKU 75869CS
Solid Length 3.45 mm
Suggested Max Deflection 1.83 mm
Suggested Max Load 24.88 N
Total Coils 5.5
Wire Diameter 0.64 mm
The 75869 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75869CS compression spring is designed with a free length of 0.201" total of 5 coils, and a rate of 90.692 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75869 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
