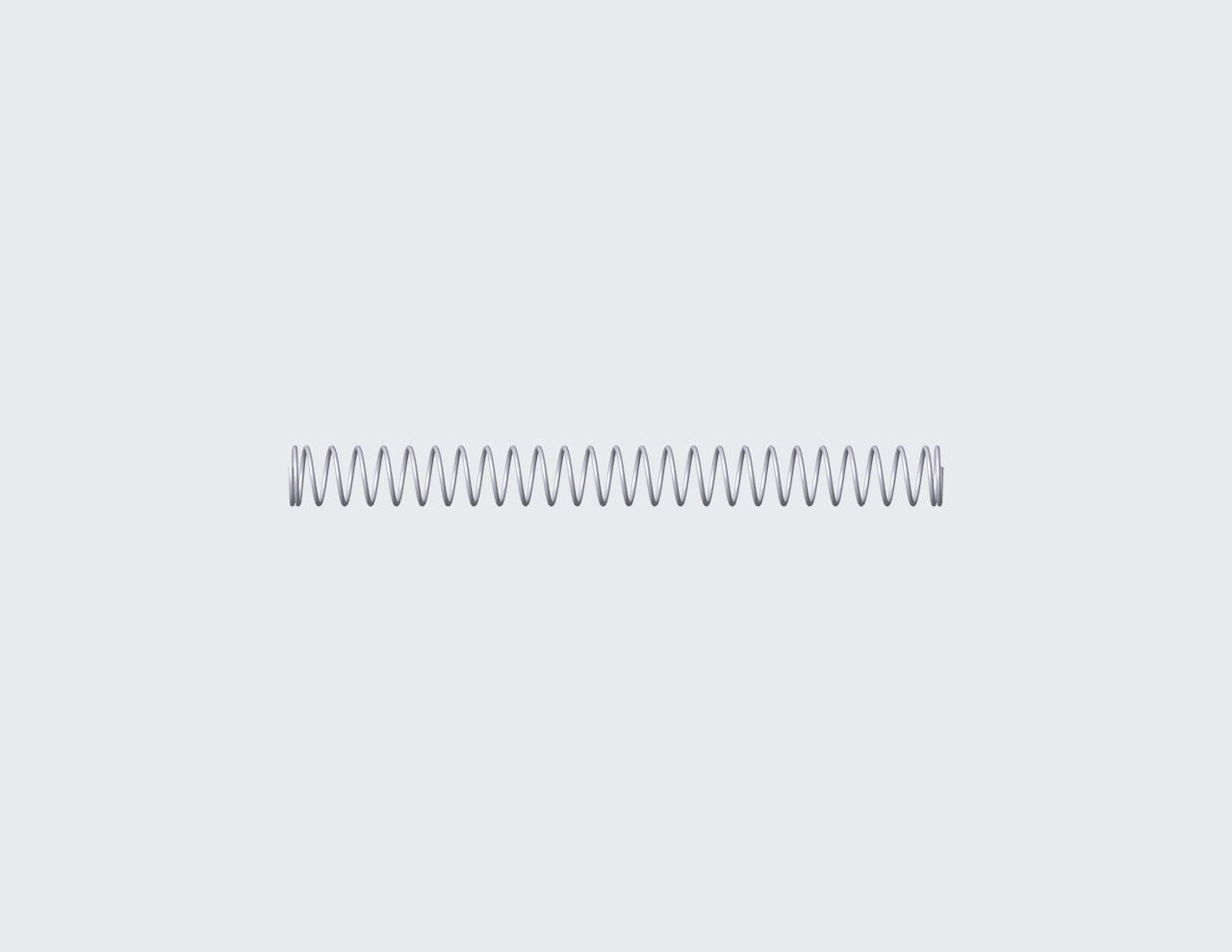

75867CS - 1.575" Music Wire Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from music wire with 27.6 coils and closed ends. This spring features an O.D. of 0.148", and an I.D. of 0.124".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75867
Ends Closed
Finish None
Free Length 1.575 in
Inside Diameter 0.124 in
Material Music Wire
Outside Diameter 0.148 in
Part Type Metric
Rate 0.436 lbs/in
SKU 75867CS
Solid Length 0.338 in
Suggested Max Deflection 1.669 in
Suggested Max Load 0.728 lbf
Total Coils 27.6
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75867
Ends Closed
Finish None
Free Length 40.01 mm
Inside Diameter 3.15 mm
Material Music Wire
Outside Diameter 3.76 mm
Part Type Metric
Rate 0.08 N/mm
SKU 75867CS
Solid Length 8.59 mm
Suggested Max Deflection 42.39 mm
Suggested Max Load 3.24 N
Total Coils 27.6
Wire Diameter 0.3 mm
The 75867CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.012" diameter music wire, the 75867 spring design exhibits reliable strength across its 27.6 active coils, withstanding repeated compression cycles with a maximum load of 0.728 lbf without succumbing to fatigue.

We manufacture the 75867 design to provide a compression spring that is 1.575" long at rest and provides a consistent rate of 0.436 lbs/in along its recommended maximum of 1.669" deflection. For best results, your application should fully accommodate the inner (0.124") and outer (0.148") diameters of this spring and be designed for its closed end configuration.
