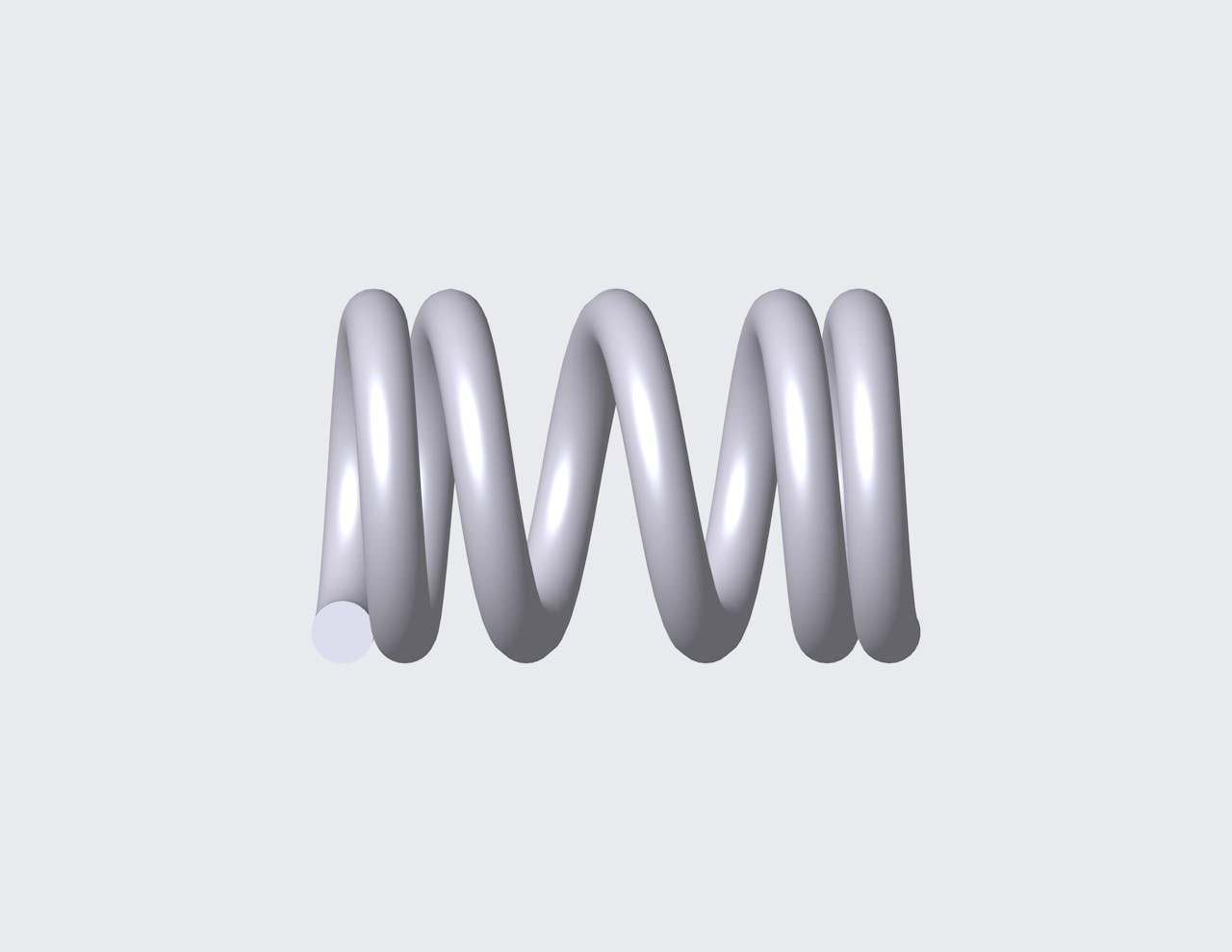

75806CS - 0.154" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 5 coils and closed ends. This spring features an O.D. of 0.094", and an I.D. of 0.063".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75806
Ends Closed
Finish None
Free Length 0.154 in
Inside Diameter 0.063 in
Material Music Wire
Outside Diameter 0.094 in
Part Type Metric
Rate 60.368 lbs/in
SKU 75806CS
Solid Length 0.094 in
Suggested Max Deflection 0.04 in
Suggested Max Load 2.442 lbf
Total Coils 5
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75806
Ends Closed
Finish None
Free Length 3.91 mm
Inside Diameter 1.6 mm
Material Music Wire
Outside Diameter 2.39 mm
Part Type Metric
Rate 10.57 N/mm
SKU 75806CS
Solid Length 2.39 mm
Suggested Max Deflection 1.02 mm
Suggested Max Load 10.86 N
Total Coils 5
Wire Diameter 0.41 mm
The 75806 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75806CS compression spring is designed with a free length of 0.63" total of 20 coils, and a rate of 4.121 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75806 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
