Century Spring

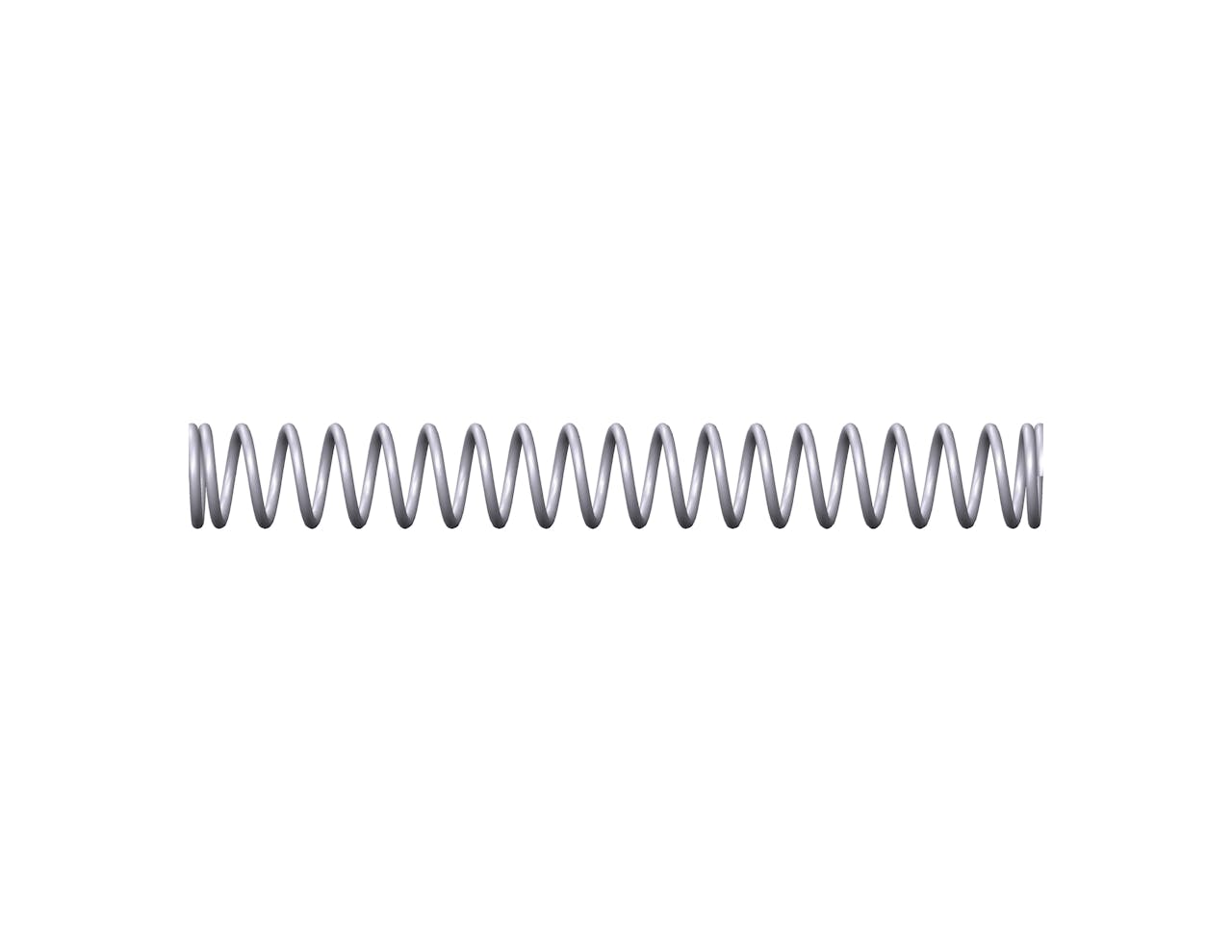

75762SCS - 5.709" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 20.5 coils and closed & ground ends. This spring features an O.D. of 0.709", and an I.D. of 0.549".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75762S
Ends Closed & Ground
Finish None
Free Length 5.709 in
Inside Diameter 0.549 in
Material 302/304 Stainless Steel
Outside Diameter 0.709 in
Part Type Metric
Rate 11.121 lbs/in
SKU 75762SCS
Solid Length 1.64 in
Suggested Max Deflection 2.079 in
Suggested Max Load 23.121 lbf
Total Coils 20.5
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75762S
Ends Closed & Ground
Finish None
Free Length 145.01 mm
Inside Diameter 13.94 mm
Material 302/304 Stainless Steel
Outside Diameter 18.01 mm
Part Type Metric
Rate 1.95 N/mm
SKU 75762SCS
Solid Length 41.66 mm
Suggested Max Deflection 52.81 mm
Suggested Max Load 102.84 N
Total Coils 20.5
Wire Diameter 2.03 mm
The compression spring 75762SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75762S compression spring design exhibits exceptional tensile strength and resilience.

The 75762S design is manufactured with a free length of 5.709", with an outer diameter of 0.709", an inner diameter of 0.549", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 11.121 lbs/in.

The 75762SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75762S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
