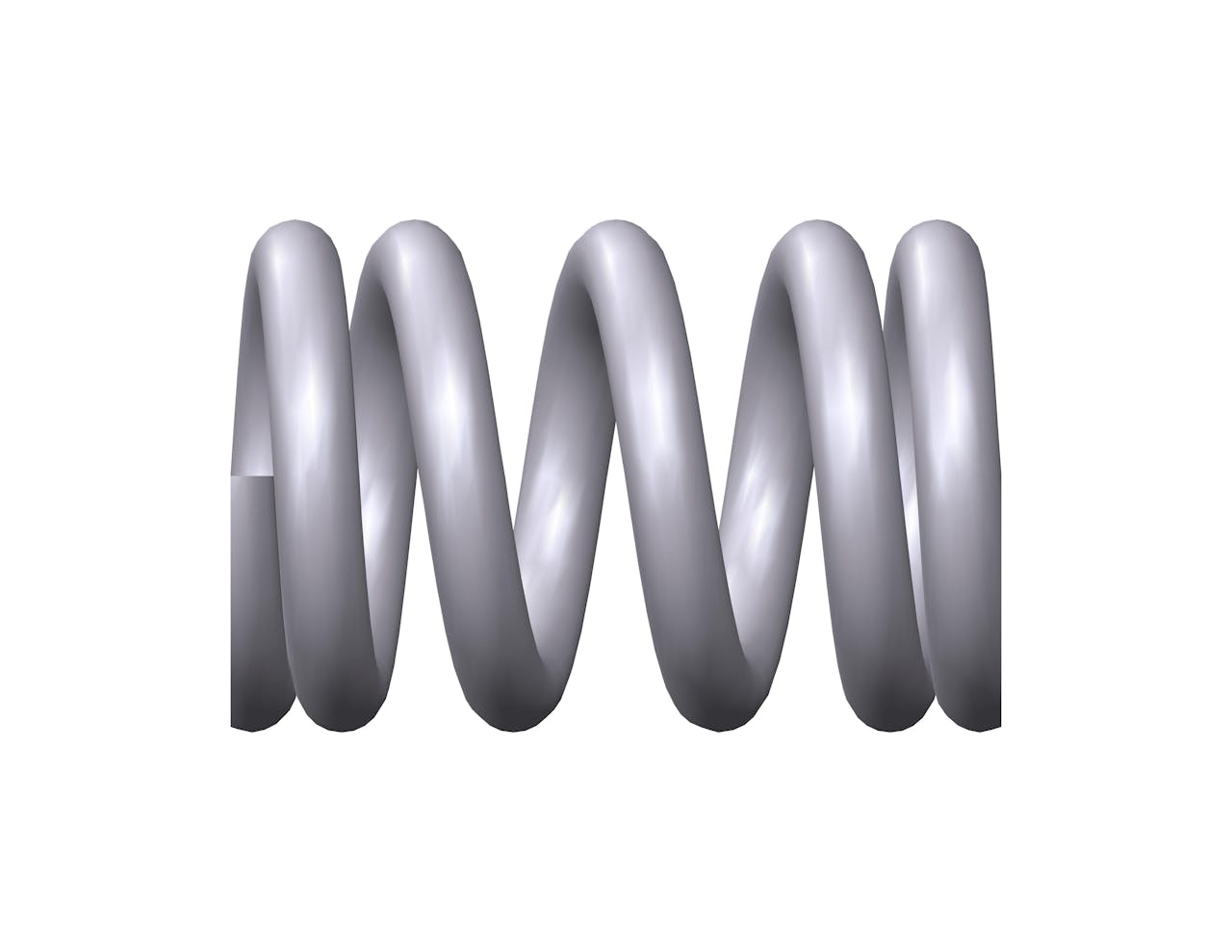

75748CS - 0.709" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.472", and an I.D. of 0.312".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75748 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.709 in |
| Inside Diameter | 0.312 in |
| Material | Music Wire |
| Outside Diameter | 0.472 in |
| Part Type | Metric |
| Rate | 269.966 lbs/in |
| SKU | 75748CS |
| Solid Length | 0.433 in |
| Suggested Max Deflection | 0.175 in |
| Suggested Max Load | 47.244 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75748 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 18.01 mm |
| Inside Diameter | 7.92 mm |
| Material | Music Wire |
| Outside Diameter | 11.99 mm |
| Part Type | Metric |
| Rate | 47.27 N/mm |
| SKU | 75748CS |
| Solid Length | 11 mm |
| Suggested Max Deflection | 4.45 mm |
| Suggested Max Load | 210.14 N |
| Total Coils | 5.5 |
| Wire Diameter | 2.03 mm |
The 75748 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 75748CS compression spring is designed with a free length of 6.496" total of 20.5 coils, and a rate of 4.256 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75748 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 75748CS compression spring is designed with a free length of 6.496" total of 20.5 coils, and a rate of 4.256 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75748 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
