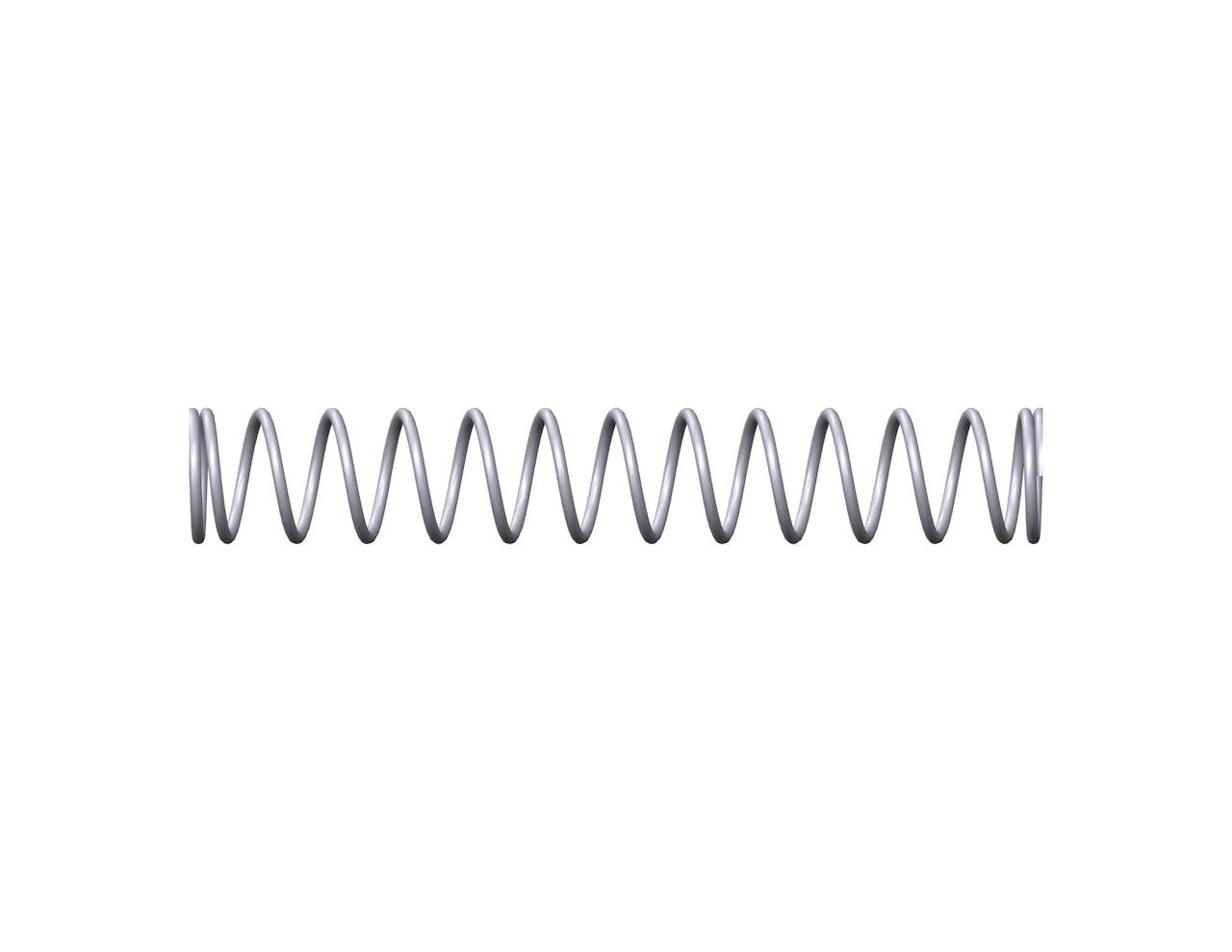

75746CS - 4.331" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.693", and an I.D. of 0.568".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75746 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 4.331 in |
| Inside Diameter | 0.568 in |
| Material | Music Wire |
| Outside Diameter | 0.693 in |
| Part Type | Metric |
| Rate | 7.559 lbs/in |
| SKU | 75746CS |
| Solid Length | 0.913 in |
| Suggested Max Deflection | 2.375 in |
| Suggested Max Load | 17.953 lbf |
| Total Coils | 14.5 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75746 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 110.01 mm |
| Inside Diameter | 14.43 mm |
| Material | Music Wire |
| Outside Diameter | 17.6 mm |
| Part Type | Metric |
| Rate | 1.32 N/mm |
| SKU | 75746CS |
| Solid Length | 23.19 mm |
| Suggested Max Deflection | 60.33 mm |
| Suggested Max Load | 79.85 N |
| Total Coils | 14.5 |
| Wire Diameter | 1.59 mm |
The compression spring 75746CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75746 compression spring design exhibits exceptional tensile strength and resilience.
The 75746 design is manufactured with a free length of 4.331", with an outer diameter of 0.693", an inner diameter of 0.568", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.559 lbs/in.
The 75746CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75746 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
