75712SCS - 3.15" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

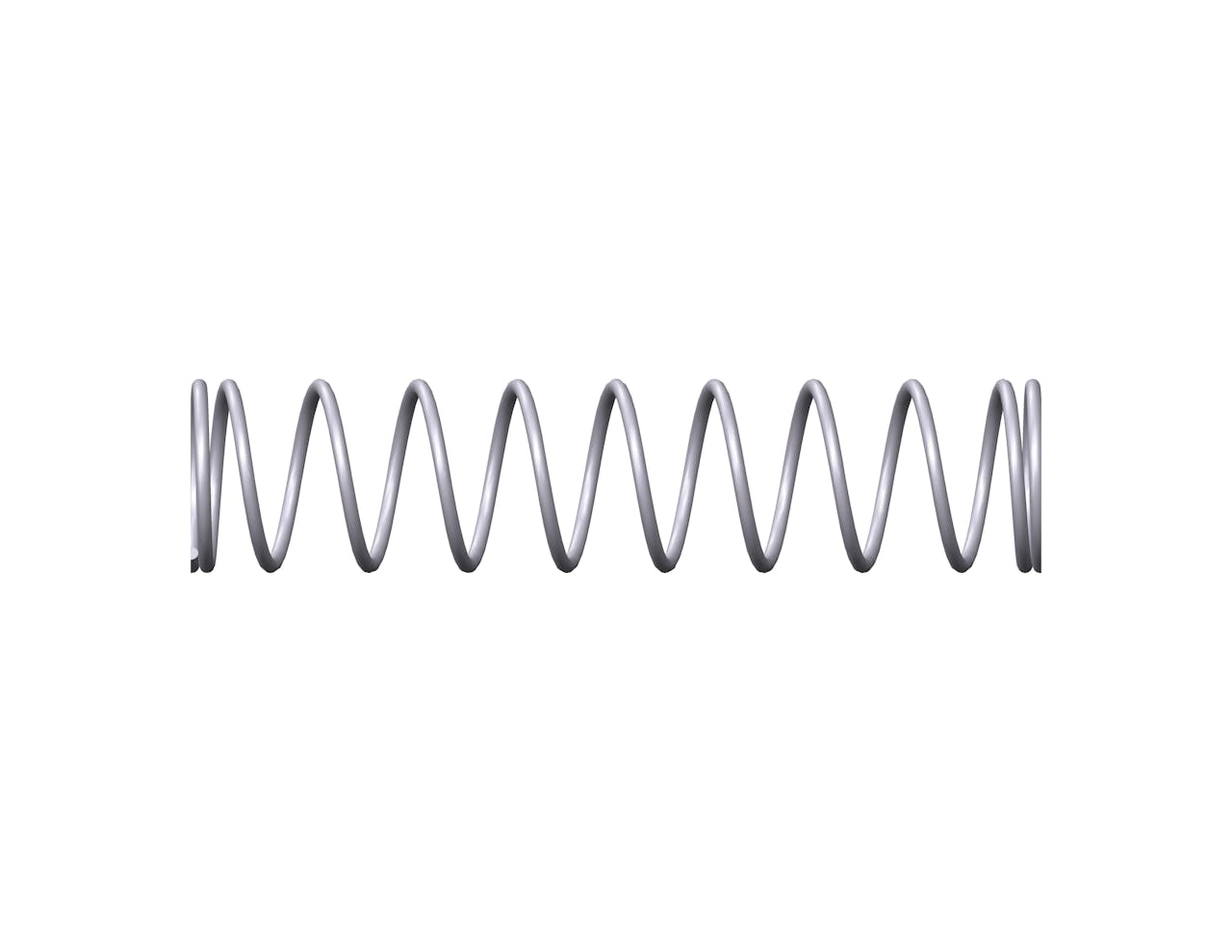

Compression spring manufactured from 302/304 stainless steel with 11.17 coils and closed & ground ends. This spring features an O.D. of 0.72", and an I.D. of 0.61".

Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75712S
Ends Closed & Ground
Finish None
Free Length 3.15 in
Inside Diameter 0.61 in
Material 302/304 Stainless Steel
Outside Diameter 0.72 in
Part Type Metric
Rate 4.273 lbs/in
SKU 75712SCS
Solid Length 0.615 in
Suggested Max Deflection 1.891 in
Suggested Max Load 8.08 lbf
Total Coils 11.17
Wire Diameter 0.055 in
The 75712SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.055" diameter 302/304 stainless steel, the 75712S spring design exhibits reliable strength across its 11.17 active coils, withstanding repeated compression cycles with a maximum load of 8.08 lbf without succumbing to fatigue.

We manufacture the 75712S design to provide a compression spring that is 3.15" long at rest and provides a consistent rate of 4.273 lbs/in along its recommended maximum of 1.891" deflection. For best results, your application should fully accommodate the inner (0.61") and outer (0.72") diameters of this spring and be designed for its closed & ground end configuration.
