75657SCS - 3.681" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

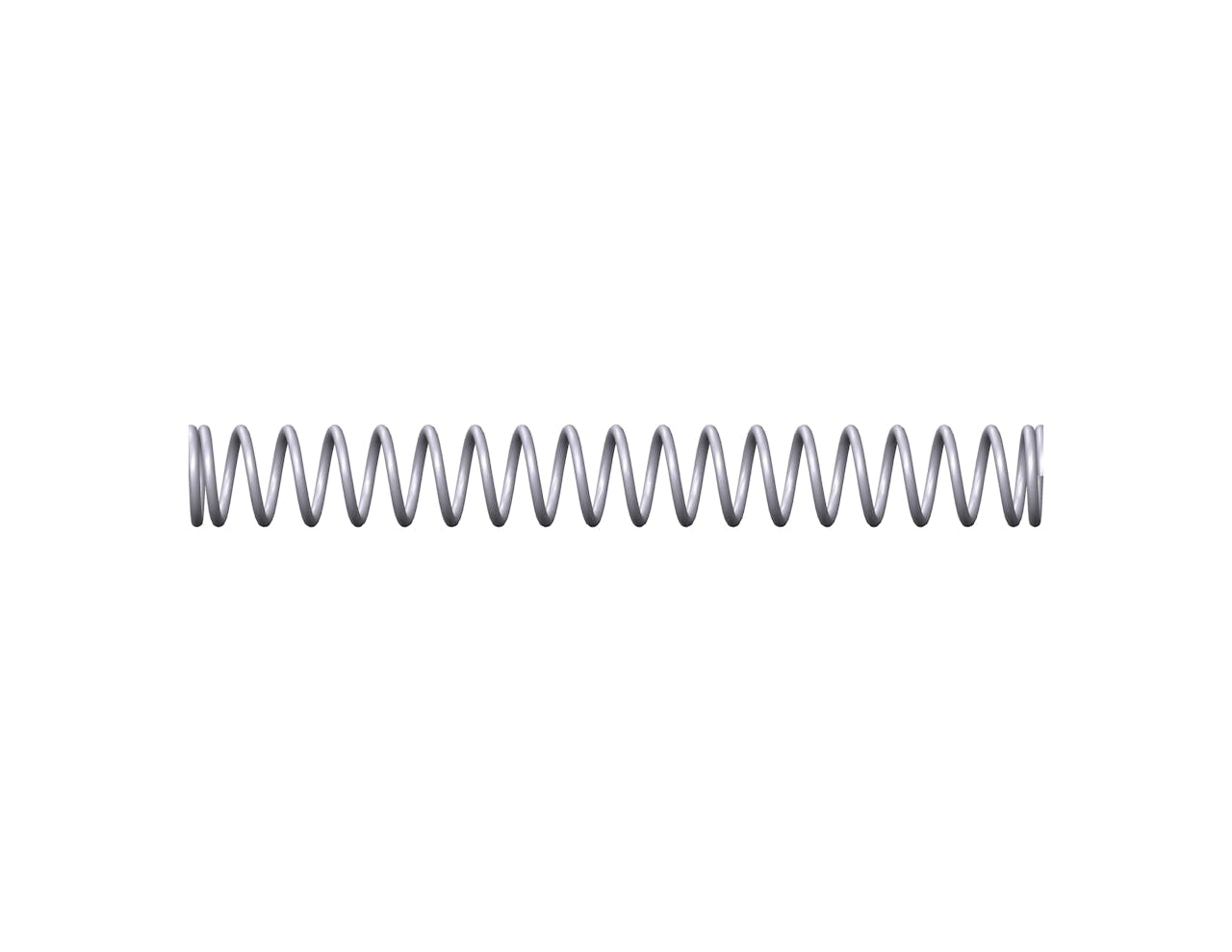

Compression spring manufactured from 302/304 stainless steel with 20.5 coils and closed & ground ends. This spring features an O.D. of 0.443", and an I.D. of 0.343".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75657S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.681 in |
| Inside Diameter | 0.343 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.443 in |
| Part Type | Metric |
| Rate | 6.494 lbs/in |
| SKU | 75657SCS |
| Solid Length | 1.009 in |
| Suggested Max Deflection | 1.446 in |
| Suggested Max Load | 9.39 lbf |
| Total Coils | 20.5 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75657S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 93.5 mm |
| Inside Diameter | 8.71 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.25 mm |
| Part Type | Metric |
| Rate | 1.14 N/mm |
| SKU | 75657SCS |
| Solid Length | 25.63 mm |
| Suggested Max Deflection | 36.73 mm |
| Suggested Max Load | 41.77 N |
| Total Coils | 20.5 |
| Wire Diameter | 1.27 mm |
The compression spring 75657SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75657S compression spring design exhibits exceptional tensile strength and resilience.
The 75657S design is manufactured with a free length of 3.681", with an outer diameter of 0.443", an inner diameter of 0.343", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.494 lbs/in.
The 75657SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75657S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
