75469SCS - 1.772" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

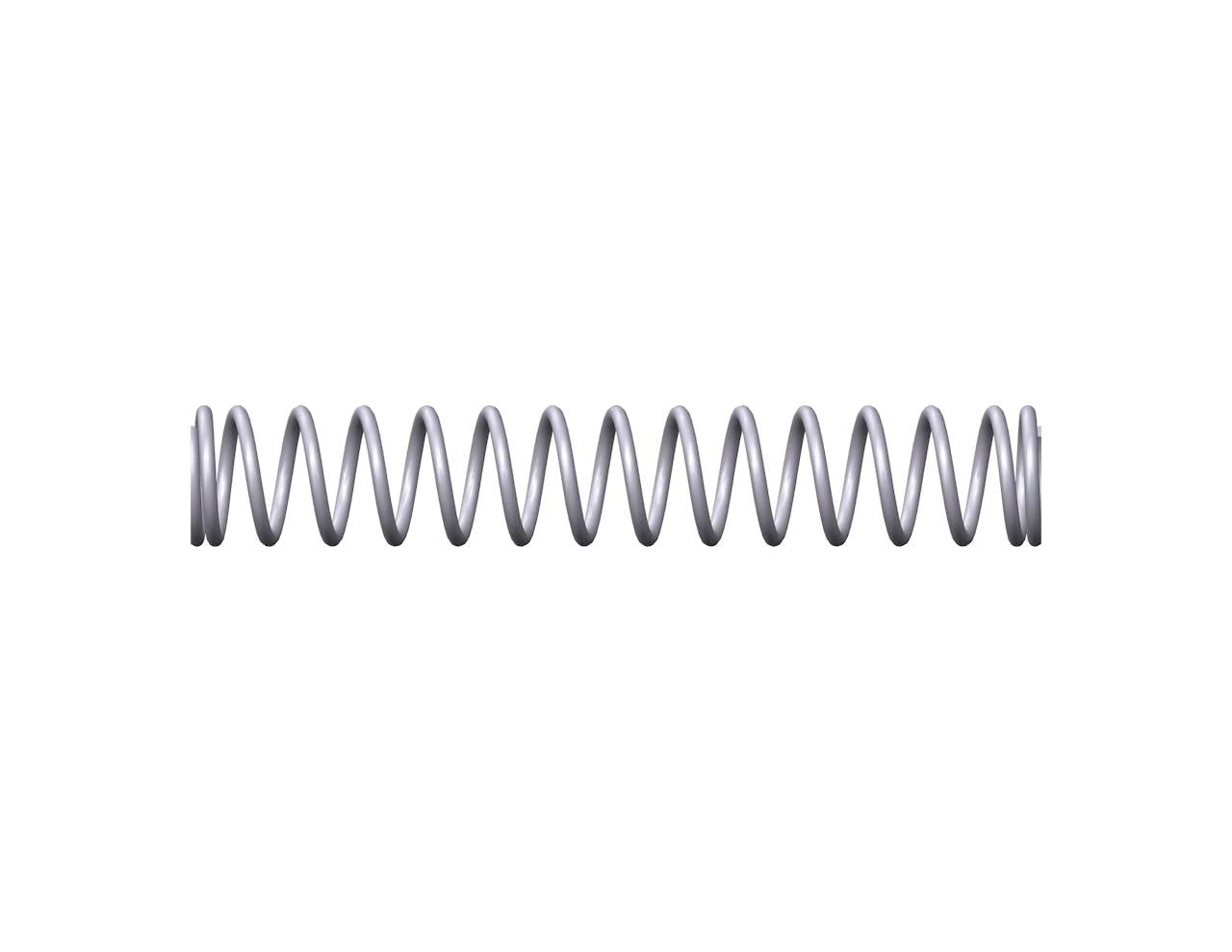

Compression spring manufactured from 302/304 stainless steel with 15.75 coils and closed & ground ends. This spring features an O.D. of 0.295", and an I.D. of 0.231".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75469S
Ends Closed & Ground
Finish None
Free Length 1.772 in
Inside Diameter 0.231 in
Material 302/304 Stainless Steel
Outside Diameter 0.295 in
Part Type Metric
Rate 4.89 lbs/in
SKU 75469SCS
Solid Length 0.494 in
Suggested Max Deflection 0.83 in
Suggested Max Load 4.059 lbf
Total Coils 15.75
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75469S
Ends Closed & Ground
Finish None
Free Length 45.01 mm
Inside Diameter 5.87 mm
Material 302/304 Stainless Steel
Outside Diameter 7.49 mm
Part Type Metric
Rate 0.86 N/mm
SKU 75469SCS
Solid Length 12.55 mm
Suggested Max Deflection 21.08 mm
Suggested Max Load 18.05 N
Total Coils 15.75
Wire Diameter 0.81 mm
The 75469SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.032" diameter 302/304 stainless steel, the 75469S spring design exhibits reliable strength across its 15.75 active coils, withstanding repeated compression cycles with a maximum load of 4.059 lbf without succumbing to fatigue.

We manufacture the 75469S design to provide a compression spring that is 1.772" long at rest and provides a consistent rate of 4.89 lbs/in along its recommended maximum of 0.83" deflection. For best results, your application should fully accommodate the inner (0.231") and outer (0.295") diameters of this spring and be designed for its closed & ground end configuration.
