75374CS - 3.169" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

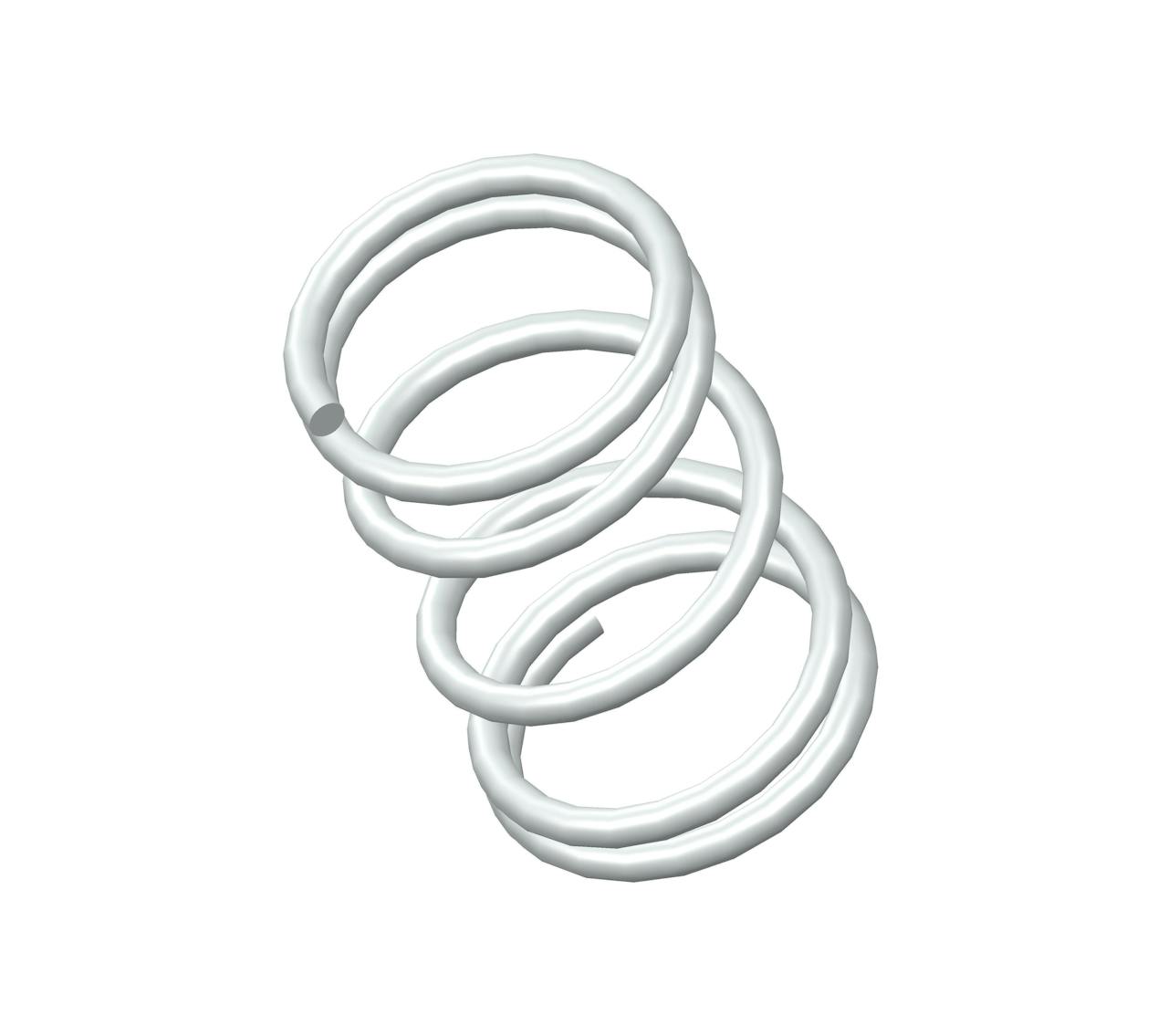

Compression spring manufactured from music wire with 20.5 coils and closed & ground ends. This spring features an O.D. of 0.34", and an I.D. of 0.29".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75374 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 3.169 in |
| Inside Diameter | 0.29 in |
| Material | Music Wire |
| Outside Diameter | 0.34 in |
| Part Type | Metric |
| Rate | 0.982 lbs/in |
| SKU | 75374CS |
| Solid Length | 0.508 in |
| Suggested Max Deflection | 2.656 in |
| Suggested Max Load | 2.608 lbf |
| Total Coils | 20.5 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75374 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 80.49 mm |
| Inside Diameter | 7.37 mm |
| Material | Music Wire |
| Outside Diameter | 8.64 mm |
| Part Type | Metric |
| Rate | 0.17 N/mm |
| SKU | 75374CS |
| Solid Length | 12.9 mm |
| Suggested Max Deflection | 67.46 mm |
| Suggested Max Load | 11.6 N |
| Total Coils | 20.5 |
| Wire Diameter | 0.64 mm |
The compression spring 75374CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75374 compression spring design exhibits exceptional tensile strength and resilience.
The 75374 design is manufactured with a free length of 3.169", with an outer diameter of 0.34", an inner diameter of 0.29", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.982 lbs/in.
The 75374CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75374 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 75374 design is manufactured with a free length of 3.169", with an outer diameter of 0.34", an inner diameter of 0.29", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.982 lbs/in.
The 75374CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75374 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
