Century Spring

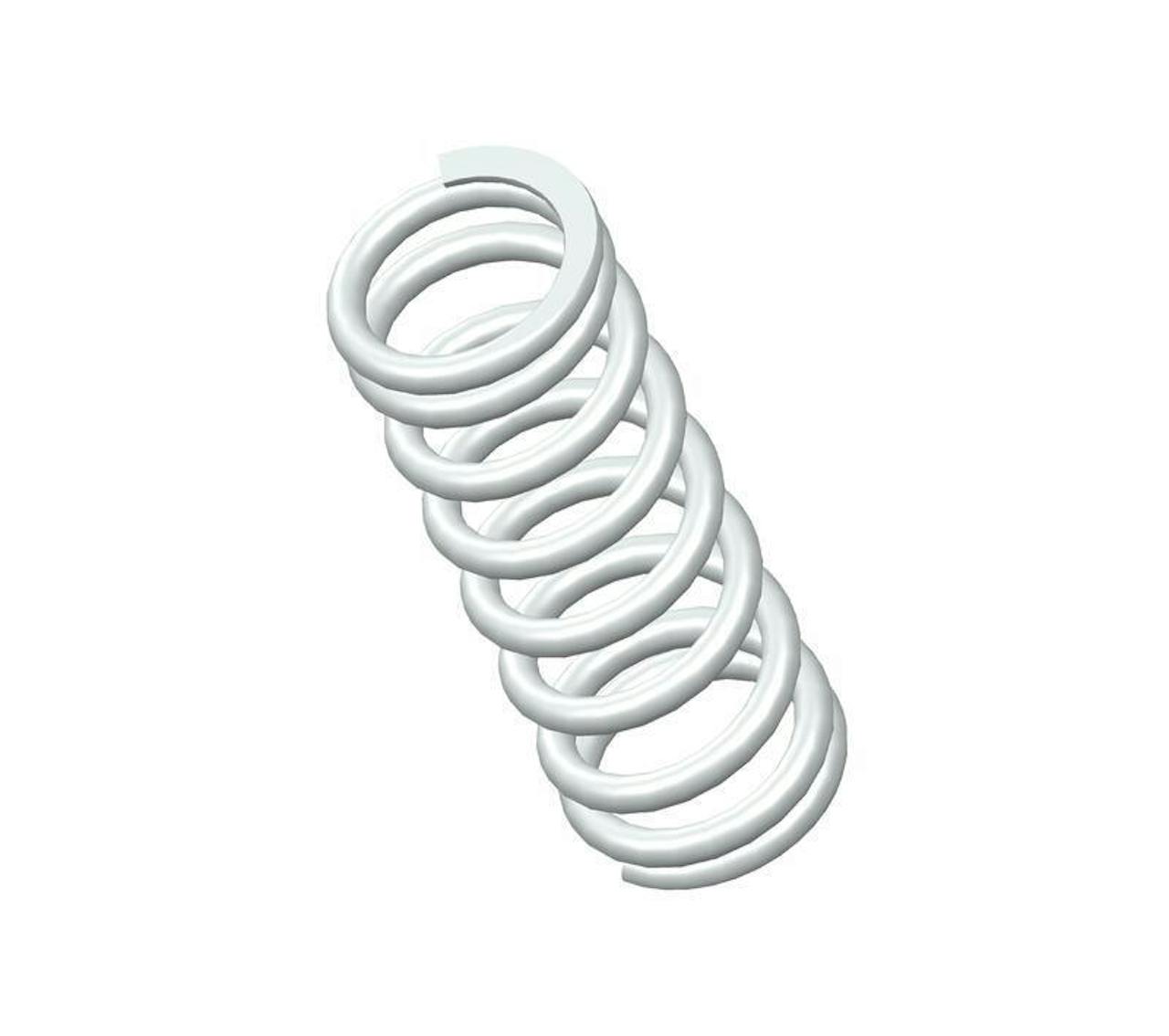

75363CS - 1.024" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.222", and an I.D. of 0.172".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75363
Ends Closed & Ground
Finish Zinc
Free Length 1.024 in
Inside Diameter 0.172 in
Material Music Wire
Outside Diameter 0.222 in
Part Type Metric
Rate 5.954 lbs/in
SKU 75363CS
Solid Length 0.36 in
Suggested Max Deflection 0.657 in
Suggested Max Load 3.912 lbf
Total Coils 14.5
Wire Diameter 0.025 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75363
Ends Closed & Ground
Finish Zinc
Free Length 26.01 mm
Inside Diameter 4.37 mm
Material Music Wire
Outside Diameter 5.64 mm
Part Type Metric
Rate 1.04 N/mm
SKU 75363CS
Solid Length 9.14 mm
Suggested Max Deflection 16.69 mm
Suggested Max Load 17.4 N
Total Coils 14.5
Wire Diameter 0.64 mm
The 75363CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.025" diameter music wire, the 75363 spring design exhibits reliable strength across its 14.5 active coils, withstanding repeated compression cycles with a maximum load of 3.912 lbf without succumbing to fatigue.

We manufacture the 75363 design to provide a compression spring that is 1.024" long at rest and provides a consistent rate of 5.954 lbs/in along its recommended maximum of 0.657" deflection. For best results, your application should fully accommodate the inner (0.172") and outer (0.222") diameters of this spring and be designed for its closed & ground end configuration.
