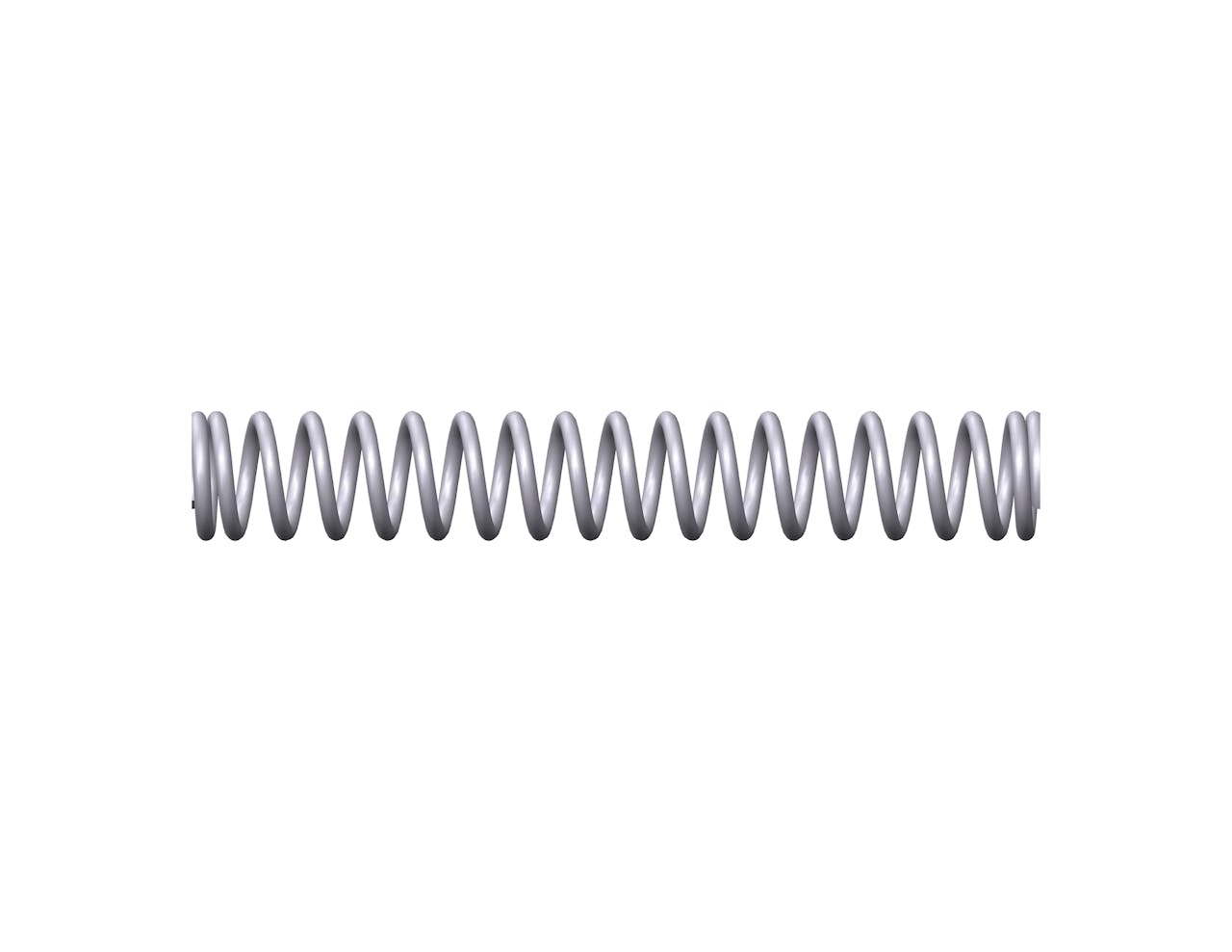

75336CS - 1.181" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 18.67 coils and closed & ground ends. This spring features an O.D. of 0.181", and an I.D. of 0.133".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75336 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.181 in |
| Inside Diameter | 0.133 in |
| Material | Music Wire |
| Outside Diameter | 0.181 in |
| Part Type | Metric |
| Rate | 7.16 lbs/in |
| SKU | 75336CS |
| Solid Length | 0.442 in |
| Suggested Max Deflection | 0.604 in |
| Suggested Max Load | 4.325 lbf |
| Total Coils | 18.67 |
| Wire Diameter | 0.024 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75336 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 30 mm |
| Inside Diameter | 3.38 mm |
| Material | Music Wire |
| Outside Diameter | 4.6 mm |
| Part Type | Metric |
| Rate | 1.25 N/mm |
| SKU | 75336CS |
| Solid Length | 11.23 mm |
| Suggested Max Deflection | 15.34 mm |
| Suggested Max Load | 19.24 N |
| Total Coils | 18.67 |
| Wire Diameter | 0.61 mm |
The 75336CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.024" diameter music wire, the 75336 spring design exhibits reliable strength across its 18.67 active coils, withstanding repeated compression cycles with a maximum load of 4.325 lbf without succumbing to fatigue.
We manufacture the 75336 design to provide a compression spring that is 1.181" long at rest and provides a consistent rate of 7.16 lbs/in along its recommended maximum of 0.604" deflection. For best results, your application should fully accommodate the inner (0.133") and outer (0.181") diameters of this spring and be designed for its closed & ground end configuration.
