Century Spring

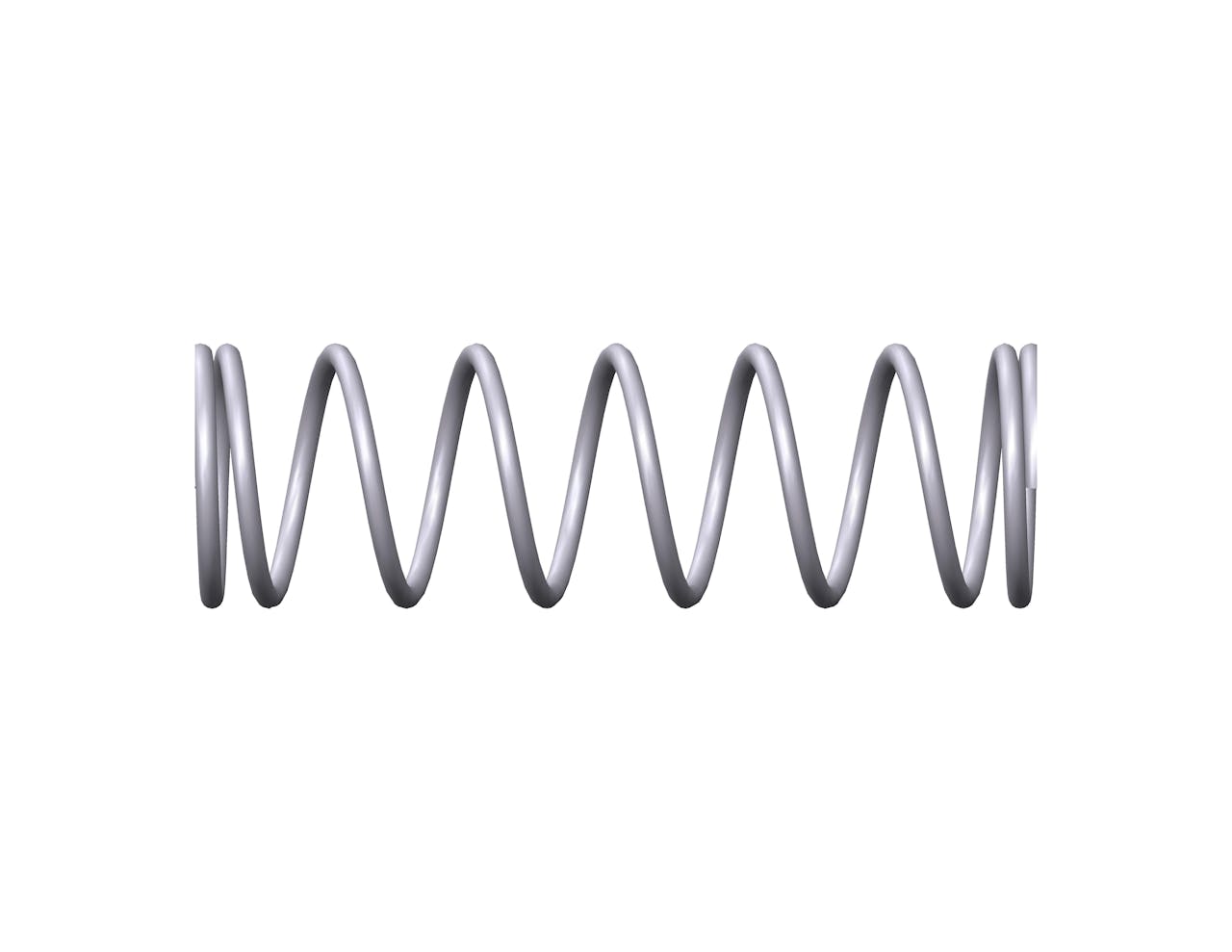

75267CS - 0.748" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 8.53 coils and closed & ground ends. This spring features an O.D. of 0.236", and an I.D. of 0.196".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75267
Ends Closed & Ground
Finish Zinc
Free Length 0.748 in
Inside Diameter 0.196 in
Material Music Wire
Outside Diameter 0.236 in
Part Type Metric
Rate 3.42 lbs/in
SKU 75267CS
Solid Length 0.167 in
Suggested Max Deflection 0.581 in
Suggested Max Load 1.987 lbf
Total Coils 8.53
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75267
Ends Closed & Ground
Finish Zinc
Free Length 19 mm
Inside Diameter 4.98 mm
Material Music Wire
Outside Diameter 5.99 mm
Part Type Metric
Rate 0.6 N/mm
SKU 75267CS
Solid Length 4.24 mm
Suggested Max Deflection 14.76 mm
Suggested Max Load 8.84 N
Total Coils 8.53
Wire Diameter 0.51 mm
The 75267CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.02" diameter music wire, the 75267 spring design exhibits reliable strength across its 8.53 active coils, withstanding repeated compression cycles with a maximum load of 1.987 lbf without succumbing to fatigue.

We manufacture the 75267 design to provide a compression spring that is 0.748" long at rest and provides a consistent rate of 3.42 lbs/in along its recommended maximum of 0.581" deflection. For best results, your application should fully accommodate the inner (0.196") and outer (0.236") diameters of this spring and be designed for its closed & ground end configuration.
