75244CS - 0.217" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

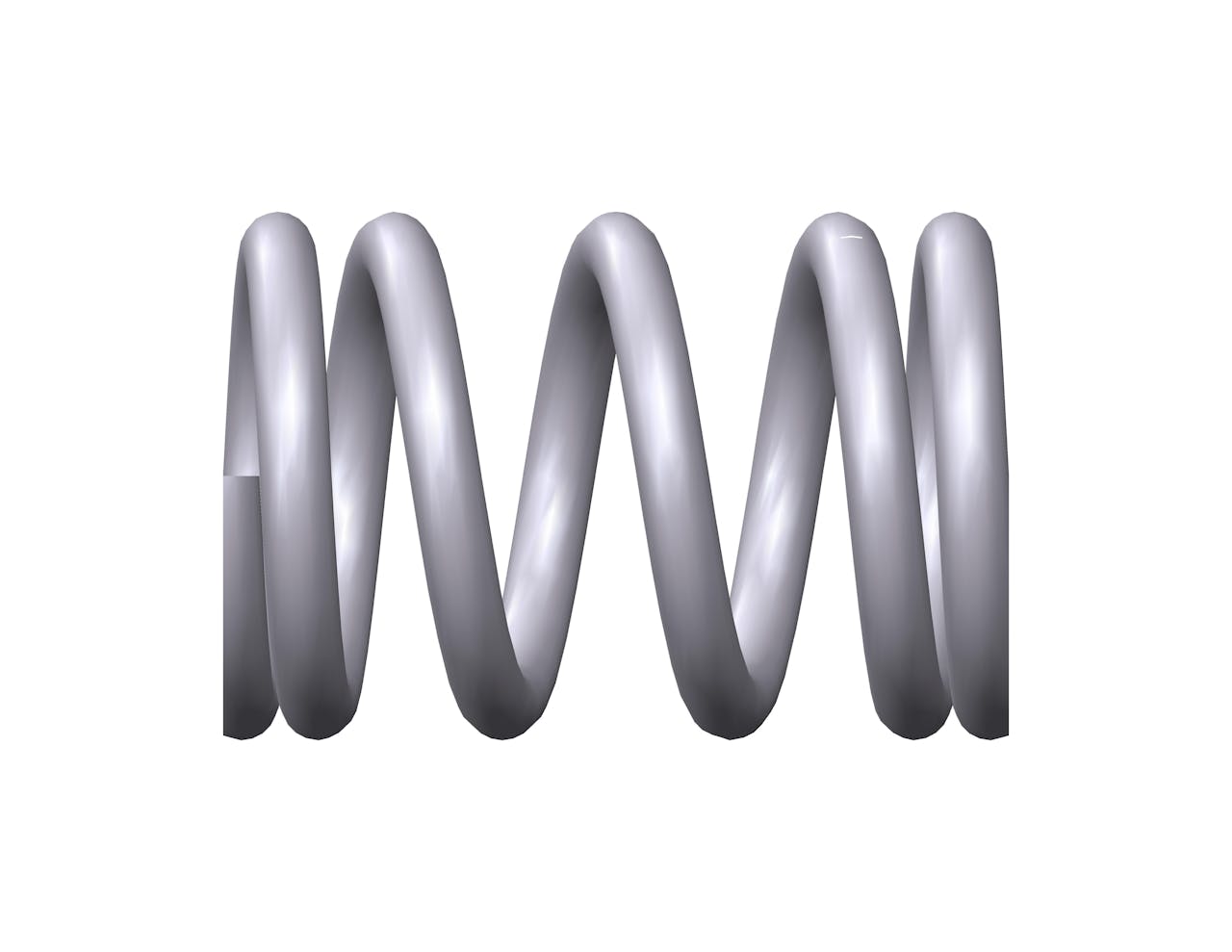

Compression spring manufactured from music wire with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.146", and an I.D. of 0.106".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75244
Ends Closed & Ground
Finish Zinc
Free Length 0.217 in
Inside Diameter 0.106 in
Material Music Wire
Outside Diameter 0.146 in
Part Type Metric
Rate 32.182 lbs/in
SKU 75244CS
Solid Length 0.108 in
Suggested Max Deflection 0.094 in
Suggested Max Load 3.025 lbf
Total Coils 5.5
Wire Diameter 0.02 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75244
Ends Closed & Ground
Finish Zinc
Free Length 5.51 mm
Inside Diameter 2.69 mm
Material Music Wire
Outside Diameter 3.71 mm
Part Type Metric
Rate 5.64 N/mm
SKU 75244CS
Solid Length 2.74 mm
Suggested Max Deflection 2.39 mm
Suggested Max Load 13.46 N
Total Coils 5.5
Wire Diameter 0.51 mm
The 75244 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75244CS compression spring is designed with a free length of 0.689" total of 20.5 coils, and a rate of 10.641 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75244 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
