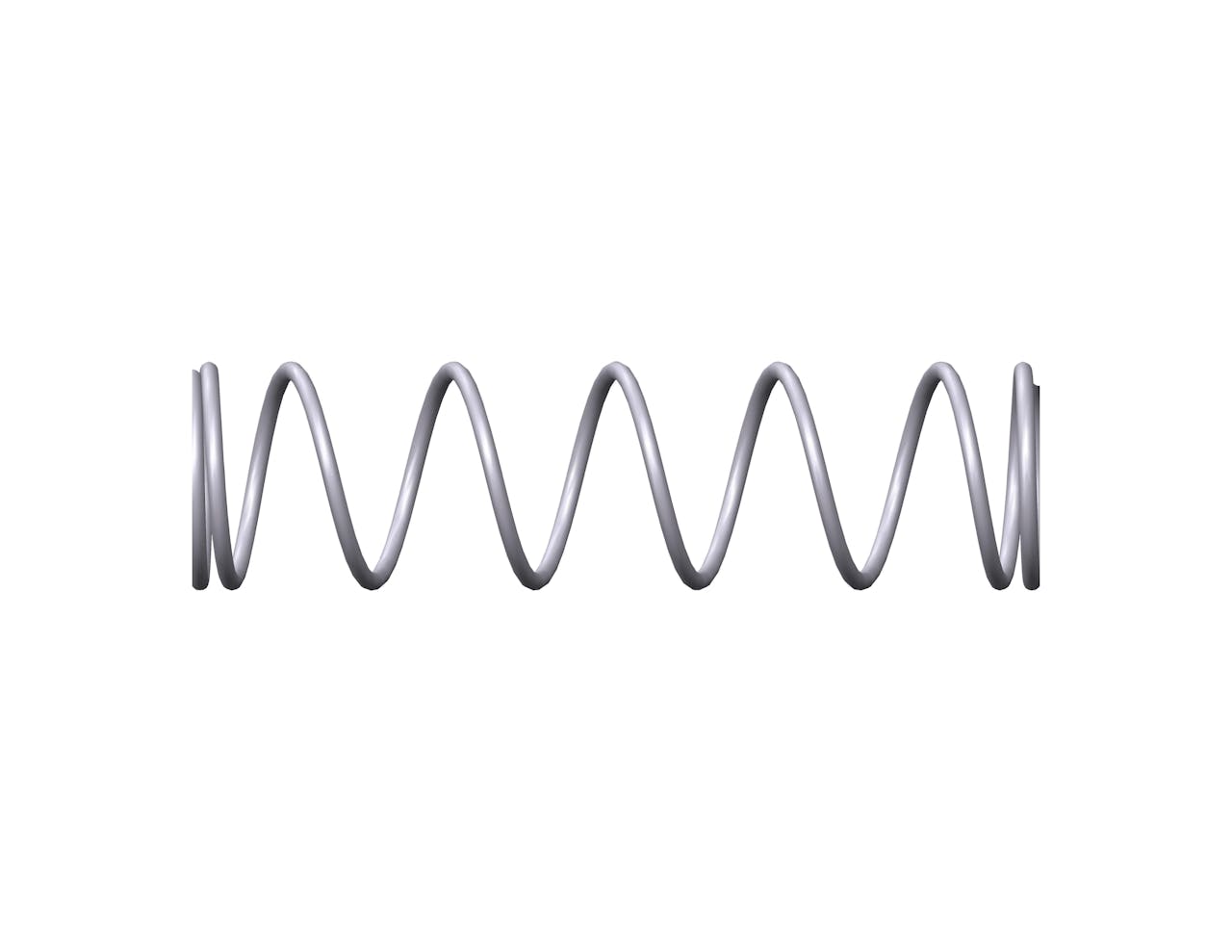

75209CS - 0.669" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 7.88 coils and closed & ground ends. This spring features an O.D. of 0.181", and an I.D. of 0.153".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75209 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.669 in |
| Inside Diameter | 0.153 in |
| Material | Music Wire |
| Outside Diameter | 0.181 in |
| Part Type | Metric |
| Rate | 1.98 lbs/in |
| SKU | 75209CS |
| Solid Length | 0.108 in |
| Suggested Max Deflection | 0.502 in |
| Suggested Max Load | 0.994 lbf |
| Total Coils | 7.88 |
| Wire Diameter | 0.014 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75209 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 16.99 mm |
| Inside Diameter | 3.89 mm |
| Material | Music Wire |
| Outside Diameter | 4.6 mm |
| Part Type | Metric |
| Rate | 0.35 N/mm |
| SKU | 75209CS |
| Solid Length | 2.74 mm |
| Suggested Max Deflection | 12.75 mm |
| Suggested Max Load | 4.42 N |
| Total Coils | 7.88 |
| Wire Diameter | 0.36 mm |
The compression spring 75209CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75209 compression spring design exhibits exceptional tensile strength and resilience.
The 75209 design is manufactured with a free length of 0.669", with an outer diameter of 0.181", an inner diameter of 0.153", and a total of 7.88 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.98 lbs/in.
The 75209CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75209 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 75209 design is manufactured with a free length of 0.669", with an outer diameter of 0.181", an inner diameter of 0.153", and a total of 7.88 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.98 lbs/in.
The 75209CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75209 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
