Century Spring

75188CS - 2.087" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

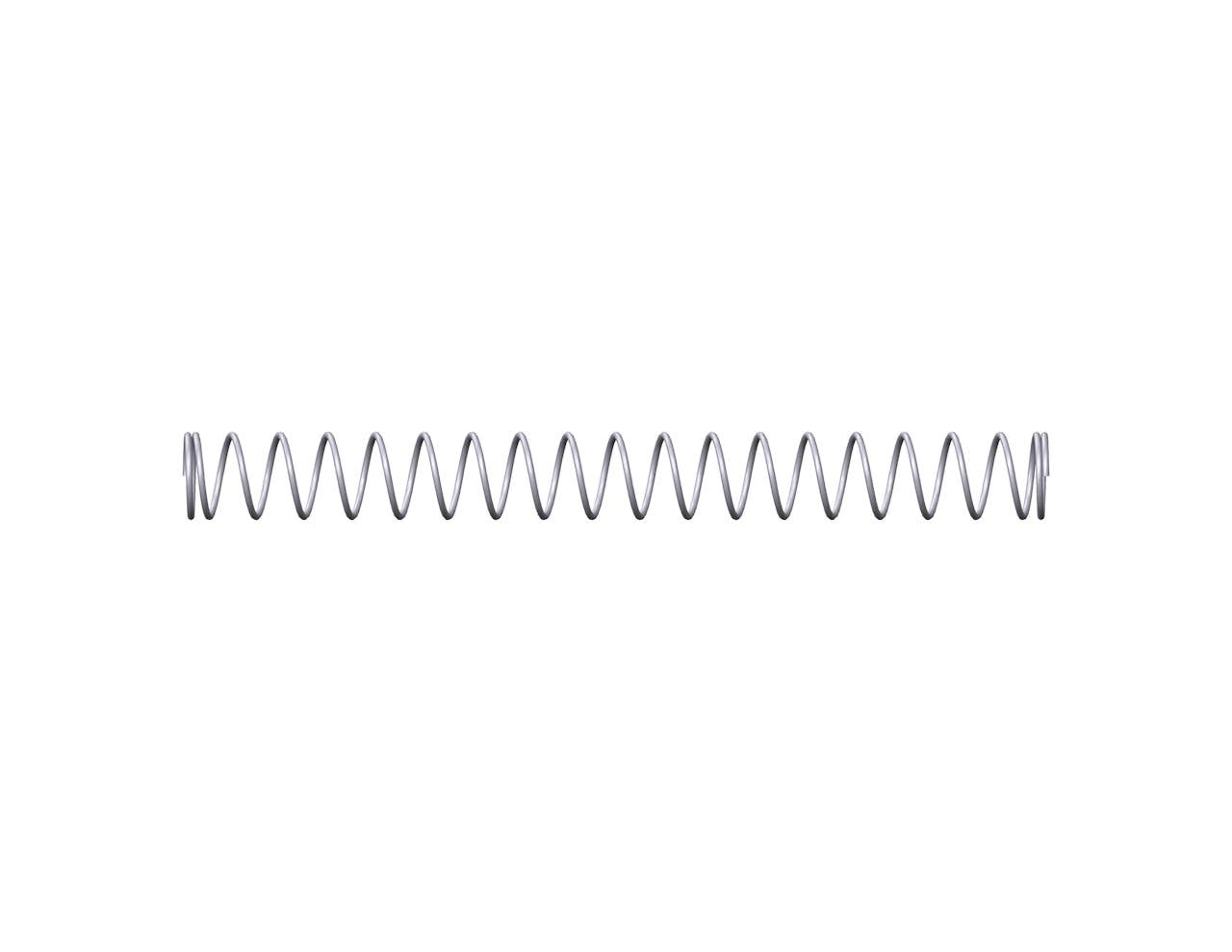

Compression spring manufactured from music wire with 20.5 coils and closed ends. This spring features an O.D. of 0.213", and an I.D. of 0.181".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75188
Ends Closed
Finish Zinc
Free Length 2.087 in
Inside Diameter 0.181 in
Material Music Wire
Outside Diameter 0.213 in
Part Type Metric
Rate 0.654 lbs/in
SKU 75188CS
Solid Length 0.339 in
Suggested Max Deflection 1.739 in
Suggested Max Load 1.137 lbf
Total Coils 20.5
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75188
Ends Closed
Finish Zinc
Free Length 53.01 mm
Inside Diameter 4.6 mm
Material Music Wire
Outside Diameter 5.41 mm
Part Type Metric
Rate 0.11 N/mm
SKU 75188CS
Solid Length 8.61 mm
Suggested Max Deflection 44.17 mm
Suggested Max Load 5.06 N
Total Coils 20.5
Wire Diameter 0.41 mm
The compression spring 75188CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75188 compression spring design exhibits exceptional tensile strength and resilience.

The 75188 design is manufactured with a free length of 2.087", with an outer diameter of 0.213", an inner diameter of 0.181", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.654 lbs/in.

The 75188CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75188 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
