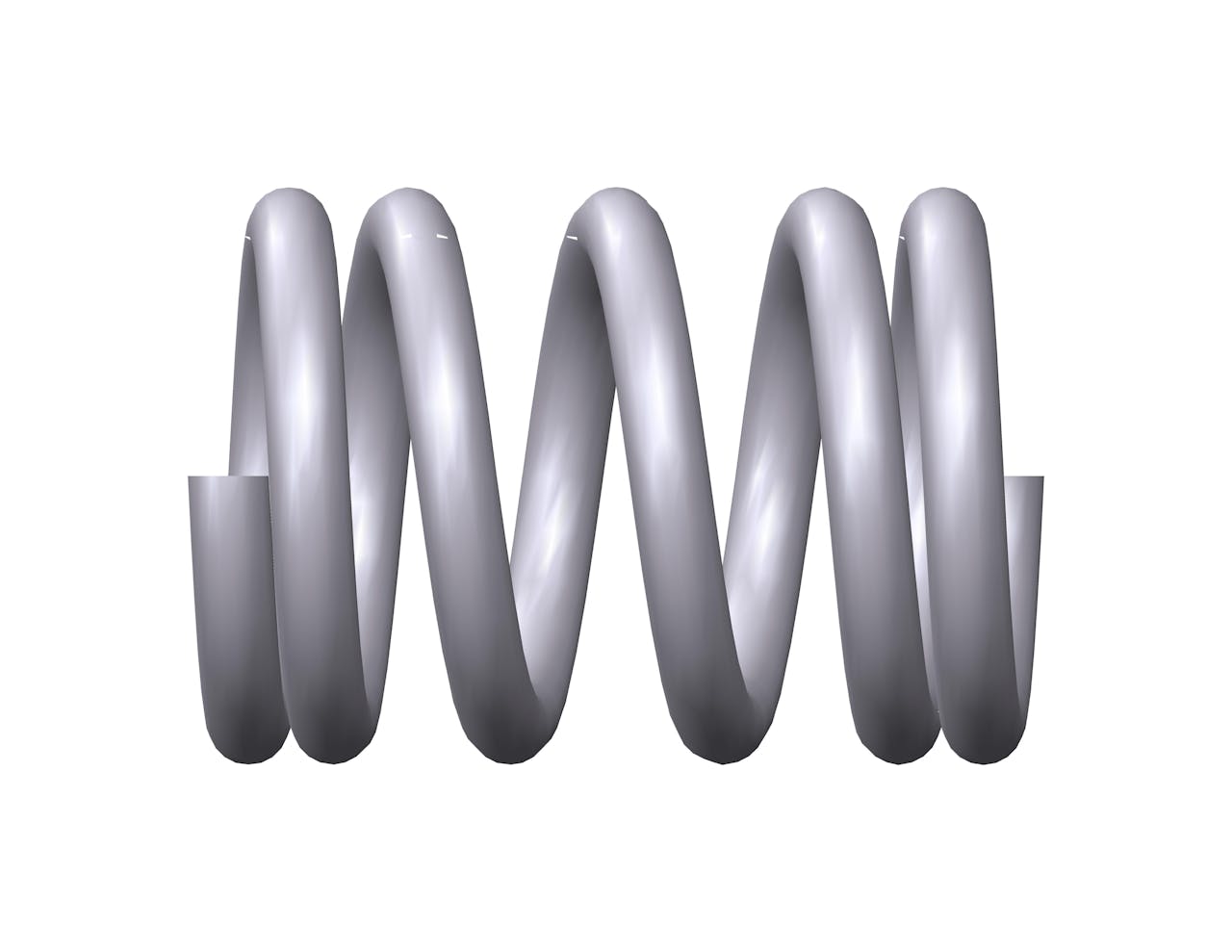

75169CS - 0.169" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 5.5 coils and closed ends. This spring features an O.D. of 0.114", and an I.D. of 0.082".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75169
Ends Closed
Finish None
Free Length 0.169 in
Inside Diameter 0.082 in
Material Music Wire
Outside Diameter 0.114 in
Part Type Metric
Rate 27.645 lbs/in
SKU 75169CS
Solid Length 0.102 in
Suggested Max Deflection 0.067 in
Suggested Max Load 1.852 lbf
Total Coils 5.5
Wire Diameter 0.016 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75169
Ends Closed
Finish None
Free Length 4.29 mm
Inside Diameter 2.08 mm
Material Music Wire
Outside Diameter 2.9 mm
Part Type Metric
Rate 4.84 N/mm
SKU 75169CS
Solid Length 2.59 mm
Suggested Max Deflection 1.7 mm
Suggested Max Load 8.24 N
Total Coils 5.5
Wire Diameter 0.41 mm
The 75169 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75169CS compression spring is designed with a free length of 0.551" total of 20.5 coils, and a rate of 8.512 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75169 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
