Century Spring

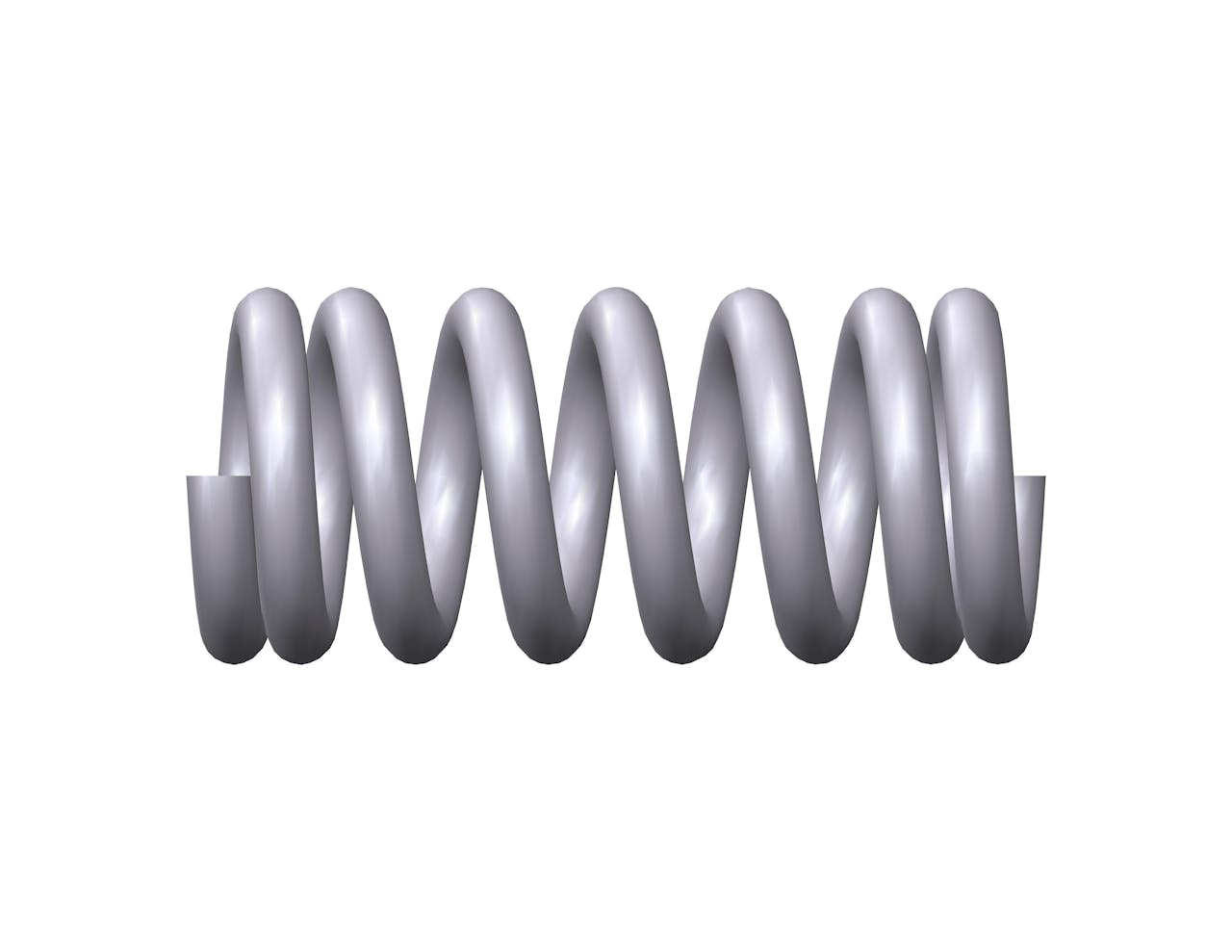

75160CS - 0.173" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 7.5 coils and closed ends. This spring features an O.D. of 0.076", and an I.D. of 0.05".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75160
Ends Closed
Finish None
Free Length 0.173 in
Inside Diameter 0.05 in
Material Music Wire
Outside Diameter 0.076 in
Part Type Metric
Rate 29.854 lbs/in
SKU 75160CS
Solid Length 0.107 in
Suggested Max Deflection 0.053 in
Suggested Max Load 1.582 lbf
Total Coils 7.5
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75160
Ends Closed
Finish None
Free Length 4.39 mm
Inside Diameter 1.27 mm
Material Music Wire
Outside Diameter 1.93 mm
Part Type Metric
Rate 5.23 N/mm
SKU 75160CS
Solid Length 2.72 mm
Suggested Max Deflection 1.35 mm
Suggested Max Load 7.04 N
Total Coils 7.5
Wire Diameter 0.33 mm
The 75160 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75160CS compression spring is designed with a free length of 0.122" total of 5.5 coils, and a rate of 35.996 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75160 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
