75156CS - 0.78" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

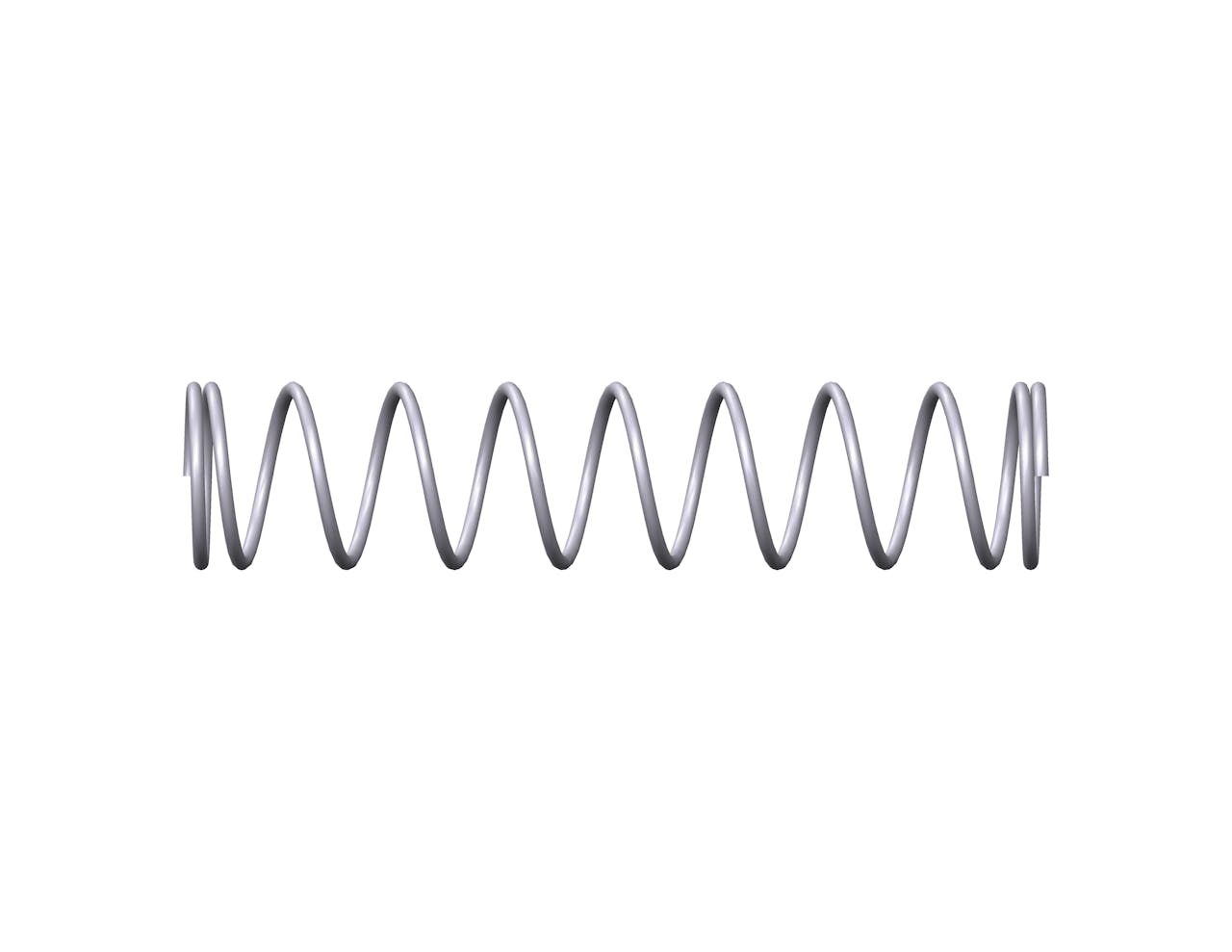

Compression spring manufactured from music wire with 10.5 coils and closed ends. This spring features an O.D. of 0.17", and an I.D. of 0.144".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75156
Ends Closed
Finish None
Free Length 0.78 in
Inside Diameter 0.144 in
Material Music Wire
Outside Diameter 0.17 in
Part Type Metric
Rate 1.248 lbs/in
SKU 75156CS
Solid Length 0.145 in
Suggested Max Deflection 0.602 in
Suggested Max Load 0.751 lbf
Total Coils 10.5
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75156
Ends Closed
Finish None
Free Length 19.81 mm
Inside Diameter 3.66 mm
Material Music Wire
Outside Diameter 4.32 mm
Part Type Metric
Rate 0.22 N/mm
SKU 75156CS
Solid Length 3.68 mm
Suggested Max Deflection 15.29 mm
Suggested Max Load 3.34 N
Total Coils 10.5
Wire Diameter 0.33 mm
The 75156CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.013" diameter music wire, the 75156 spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 0.751 lbf without succumbing to fatigue.

We manufacture the 75156 design to provide a compression spring that is 0.78" long at rest and provides a consistent rate of 1.248 lbs/in along its recommended maximum of 0.602" deflection. For best results, your application should fully accommodate the inner (0.144") and outer (0.17") diameters of this spring and be designed for its closed end configuration.
