Century Spring

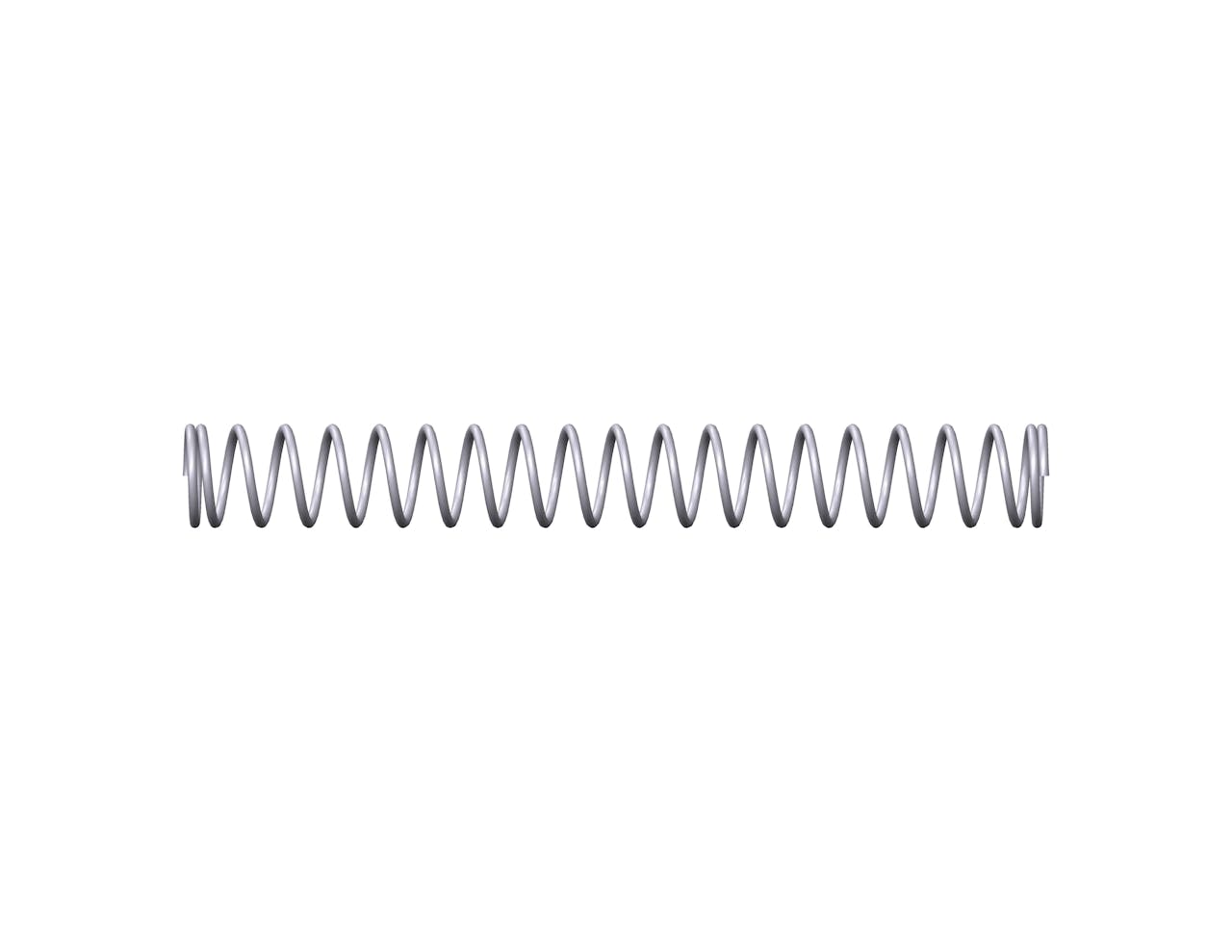

75153CS - 1.154" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 20.5 coils and closed ends. This spring features an O.D. of 0.139", and an I.D. of 0.113".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75153
Ends Closed
Finish None
Free Length 1.154 in
Inside Diameter 0.113 in
Material Music Wire
Outside Diameter 0.139 in
Part Type Metric
Rate 1.109 lbs/in
SKU 75153CS
Solid Length 0.271 in
Suggested Max Deflection 0.821 in
Suggested Max Load 0.91 lbf
Total Coils 20.5
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75153
Ends Closed
Finish None
Free Length 29.31 mm
Inside Diameter 2.87 mm
Material Music Wire
Outside Diameter 3.53 mm
Part Type Metric
Rate 0.19 N/mm
SKU 75153CS
Solid Length 6.88 mm
Suggested Max Deflection 20.85 mm
Suggested Max Load 4.05 N
Total Coils 20.5
Wire Diameter 0.33 mm
The 75153CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.013" diameter music wire, the 75153 spring design exhibits reliable strength across its 20.5 active coils, withstanding repeated compression cycles with a maximum load of 0.91 lbf without succumbing to fatigue.

We manufacture the 75153 design to provide a compression spring that is 1.154" long at rest and provides a consistent rate of 1.109 lbs/in along its recommended maximum of 0.821" deflection. For best results, your application should fully accommodate the inner (0.113") and outer (0.139") diameters of this spring and be designed for its closed end configuration.
