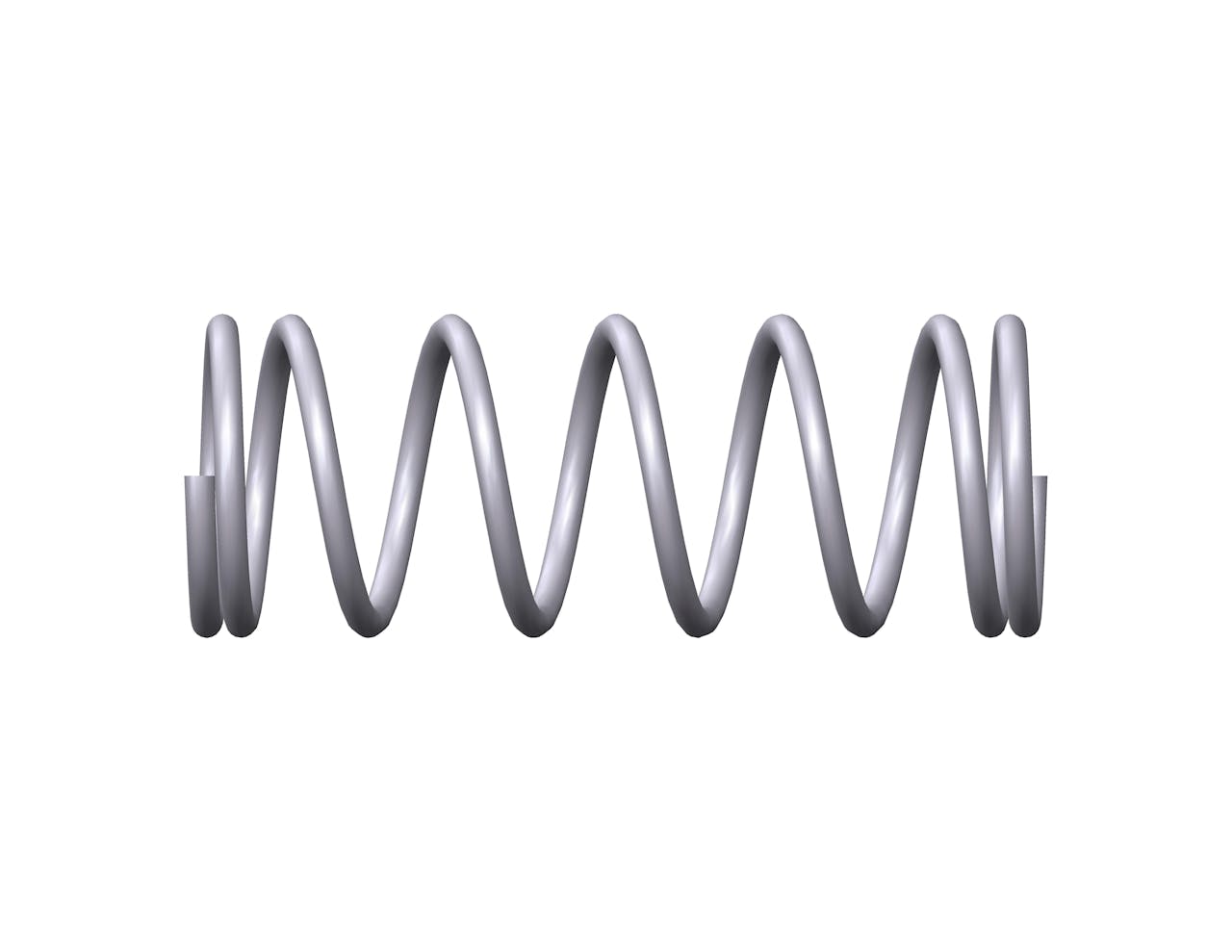

75150SCS - 0.37" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed ends. This spring features an O.D. of 0.139", and an I.D. of 0.113".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75150S |
| Ends | Closed |
| Finish | None |
| Free Length | 0.37 in |
| Inside Diameter | 0.113 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.139 in |
| Part Type | Metric |
| Rate | 2.863 lbs/in |
| SKU | 75150SCS |
| Solid Length | 0.107 in |
| Suggested Max Deflection | 0.208 in |
| Suggested Max Load | 0.596 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.013 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75150S |
| Ends | Closed |
| Finish | None |
| Free Length | 9.4 mm |
| Inside Diameter | 2.87 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.53 mm |
| Part Type | Metric |
| Rate | 0.5 N/mm |
| SKU | 75150SCS |
| Solid Length | 2.72 mm |
| Suggested Max Deflection | 5.28 mm |
| Suggested Max Load | 2.65 N |
| Total Coils | 7.5 |
| Wire Diameter | 0.33 mm |
The compression spring 75150SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75150S compression spring design exhibits exceptional tensile strength and resilience.
The 75150S design is manufactured with a free length of 0.37", with an outer diameter of 0.139", an inner diameter of 0.113", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.863 lbs/in.
The 75150SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75150S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 75150S design is manufactured with a free length of 0.37", with an outer diameter of 0.139", an inner diameter of 0.113", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.863 lbs/in.
The 75150SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75150S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
