75147CS - 0.559" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

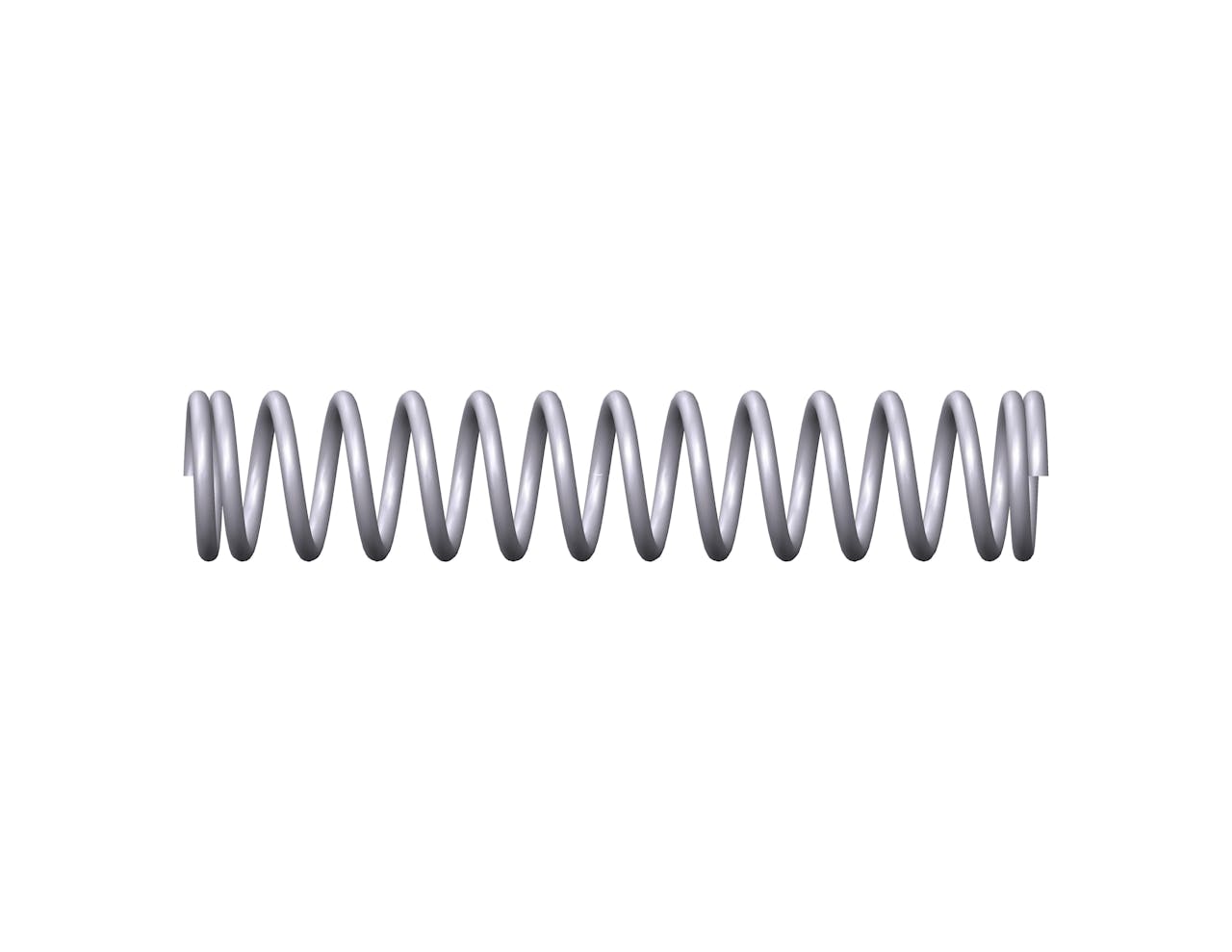

Compression spring manufactured from music wire with 14.5 coils and closed ends. This spring features an O.D. of 0.111", and an I.D. of 0.085".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75147
Ends Closed
Finish None
Free Length 0.559 in
Inside Diameter 0.085 in
Material Music Wire
Outside Diameter 0.111 in
Part Type Metric
Rate 3.49 lbs/in
SKU 75147CS
Solid Length 0.195 in
Suggested Max Deflection 0.322 in
Suggested Max Load 1.124 lbf
Total Coils 14.5
Wire Diameter 0.013 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75147
Ends Closed
Finish None
Free Length 14.2 mm
Inside Diameter 2.16 mm
Material Music Wire
Outside Diameter 2.82 mm
Part Type Metric
Rate 0.61 N/mm
SKU 75147CS
Solid Length 4.95 mm
Suggested Max Deflection 8.18 mm
Suggested Max Load 5 N
Total Coils 14.5
Wire Diameter 0.33 mm
The 75147CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.013" diameter music wire, the 75147 spring design exhibits reliable strength across its 14.5 active coils, withstanding repeated compression cycles with a maximum load of 1.124 lbf without succumbing to fatigue.

We manufacture the 75147 design to provide a compression spring that is 0.559" long at rest and provides a consistent rate of 3.49 lbs/in along its recommended maximum of 0.322" deflection. For best results, your application should fully accommodate the inner (0.085") and outer (0.111") diameters of this spring and be designed for its closed end configuration.
