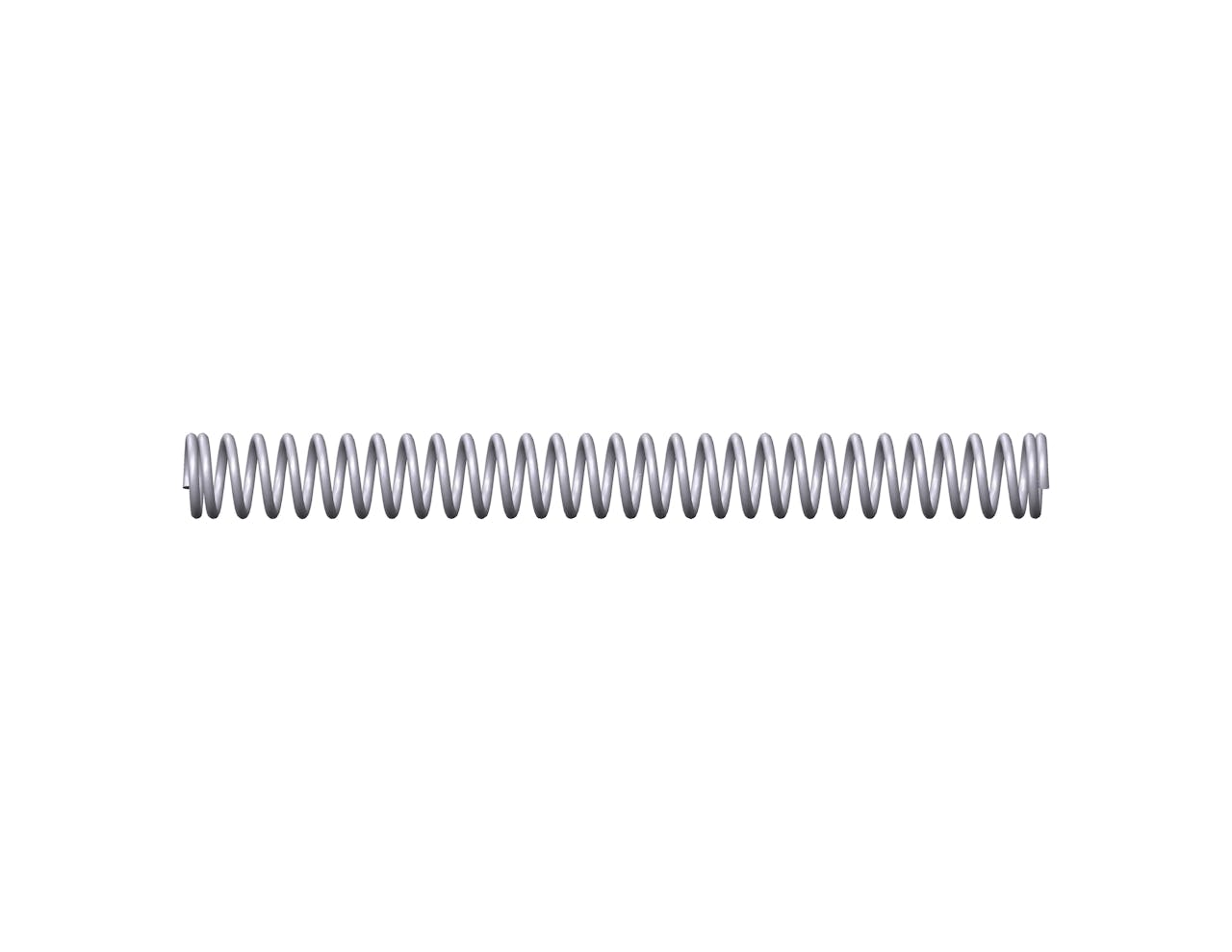

75128CS - 0.984" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 30.6 coils and closed ends. This spring features an O.D. of 0.098", and an I.D. of 0.074".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75128 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.984 in |
| Inside Diameter | 0.074 in |
| Material | Music Wire |
| Outside Diameter | 0.098 in |
| Part Type | Metric |
| Rate | 1.71 lbs/in |
| SKU | 75128CS |
| Solid Length | 0.379 in |
| Suggested Max Deflection | 0.605 in |
| Suggested Max Load | 1.035 lbf |
| Total Coils | 30.6 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75128 |
| Ends | Closed |
| Finish | None |
| Free Length | 24.99 mm |
| Inside Diameter | 1.88 mm |
| Material | Music Wire |
| Outside Diameter | 2.49 mm |
| Part Type | Metric |
| Rate | 0.3 N/mm |
| SKU | 75128CS |
| Solid Length | 9.63 mm |
| Suggested Max Deflection | 15.37 mm |
| Suggested Max Load | 4.6 N |
| Total Coils | 30.6 |
| Wire Diameter | 0.3 mm |
The compression spring 75128CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75128 compression spring design exhibits exceptional tensile strength and resilience.
The 75128 design is manufactured with a free length of 0.984", with an outer diameter of 0.098", an inner diameter of 0.074", and a total of 30.6 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.71 lbs/in.
The 75128CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75128 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
