Century Spring

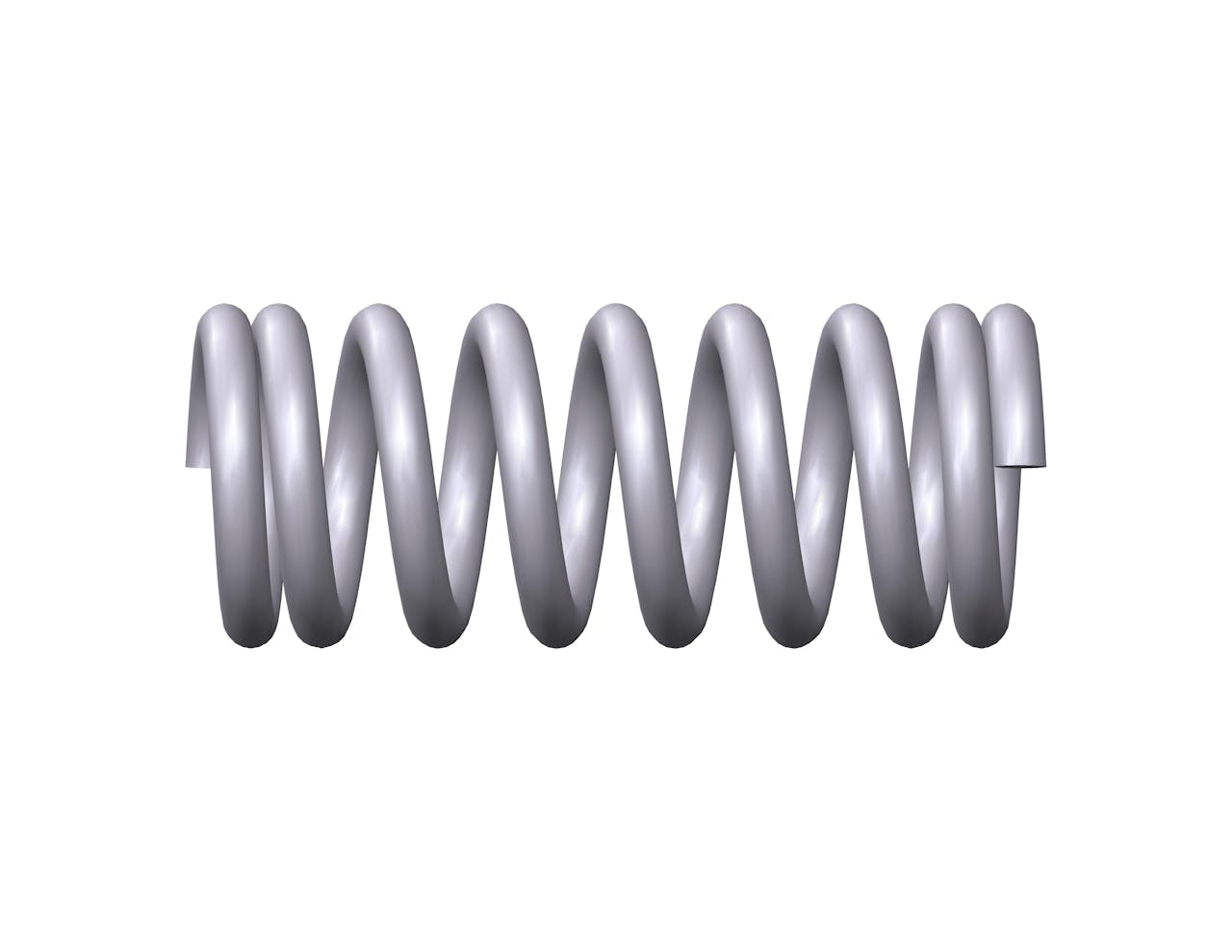

75113SCS - 0.197" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8.48 coils and closed ends. This spring features an O.D. of 0.079", and an I.D. of 0.055".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75113S
Ends Closed
Finish None
Free Length 0.197 in
Inside Diameter 0.055 in
Material 302/304 Stainless Steel
Outside Diameter 0.079 in
Part Type Metric
Rate 13.311 lbs/in
SKU 75113SCS
Solid Length 0.114 in
Suggested Max Deflection 0.063 in
Suggested Max Load 0.839 lbf
Total Coils 8.48
Wire Diameter 0.012 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75113S
Ends Closed
Finish None
Free Length 5 mm
Inside Diameter 1.4 mm
Material 302/304 Stainless Steel
Outside Diameter 2.01 mm
Part Type Metric
Rate 2.33 N/mm
SKU 75113SCS
Solid Length 2.9 mm
Suggested Max Deflection 1.6 mm
Suggested Max Load 3.73 N
Total Coils 8.48
Wire Diameter 0.3 mm
The 75113S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75113SCS compression spring is designed with a free length of 0.197" total of 8.47 coils, and a rate of 15.979 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75113S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
