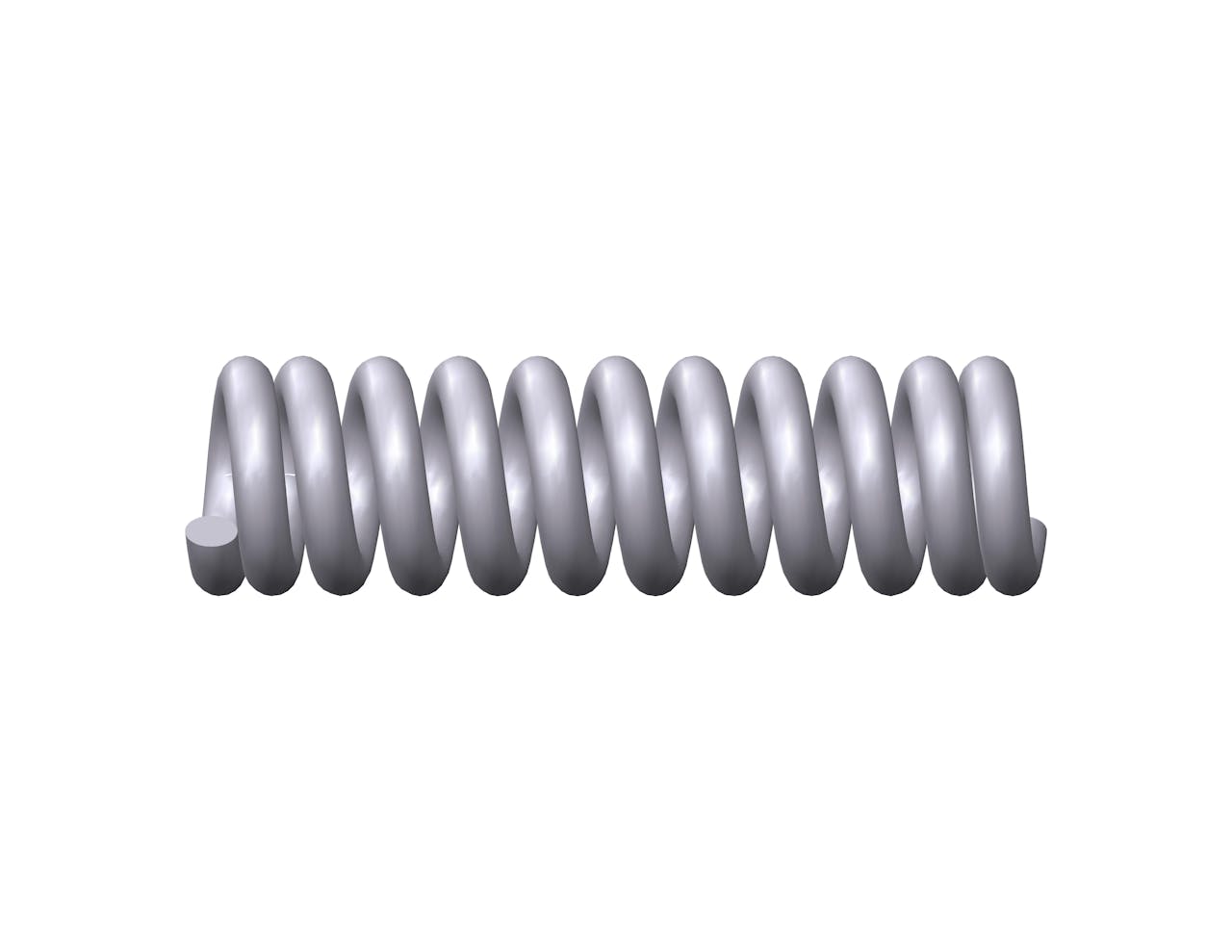

75106CS - 0.197" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 11.3 coils and closed ends. This spring features an O.D. of 0.055", and an I.D. of 0.031".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75106 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.197 in |
| Inside Diameter | 0.031 in |
| Material | Music Wire |
| Outside Diameter | 0.055 in |
| Part Type | Metric |
| Rate | 42.062 lbs/in |
| SKU | 75106CS |
| Solid Length | 0.148 in |
| Suggested Max Deflection | 0.042 in |
| Suggested Max Load | 1.767 lbf |
| Total Coils | 11.3 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75106 |
| Ends | Closed |
| Finish | None |
| Free Length | 5 mm |
| Inside Diameter | 0.79 mm |
| Material | Music Wire |
| Outside Diameter | 1.4 mm |
| Part Type | Metric |
| Rate | 7.37 N/mm |
| SKU | 75106CS |
| Solid Length | 3.76 mm |
| Suggested Max Deflection | 1.07 mm |
| Suggested Max Load | 7.86 N |
| Total Coils | 11.3 |
| Wire Diameter | 0.3 mm |
The 75106 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 75106CS compression spring is designed with a free length of 0.138" total of 7.89 coils, and a rate of 55.365 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75106 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 75106CS compression spring is designed with a free length of 0.138" total of 7.89 coils, and a rate of 55.365 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75106 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
